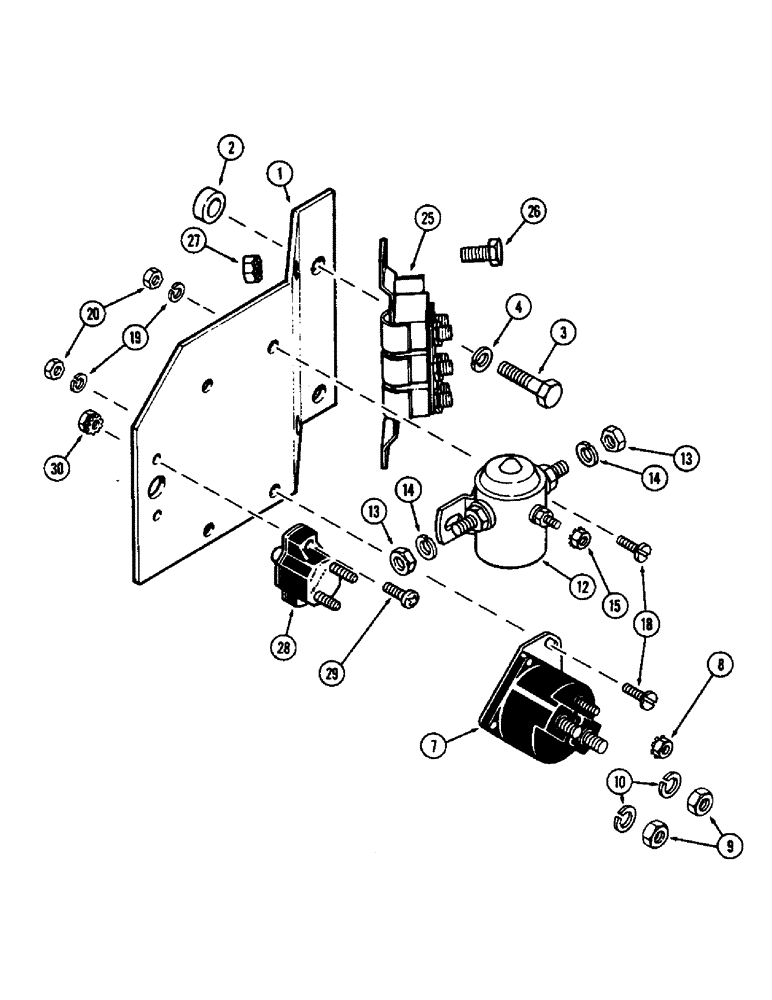

Запчасти Case IH 2870 (092) - SOLENOIDS AND CIRCUIT BREAKER MOUNTING, USED P.I.N. 8827735 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A147966

BRACKET - mounting, solenoid and circuit breaker

1шт.

2

A138729

SPACER - mounting bracket

1шт.

1

84219125

WIRE HARNESS

FPS

1шт.

Only for Models with Mechanical Remotes

1шт.

4

529-27

WASHER - 10 mm lock

2шт.

7

A39079

SOLENOID

SWITCH - neutral start solenoid

1шт.

8

193-1000

NUT,Keps, w/LW,#10-32

- terminal, #10-32 Keps

3шт.

9

9635082

NUT,5/16" - 18, Gr 5

Terminal 5/16"-18, G5

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

A143500

SOLENOID SWITCH

SWITCH ASSEMBLY - solenoid, cab, Includes: Ref. 13 - 15

1шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- terminal, #10-32 Keps

1шт.

18

175-417

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

- solenoid to support, 1/4 x 1" NC truss head

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

193-1006

NUT,Keps, w/LW, 1/4"-20

- 1/4" NC hex (Keps)

4шт.

25

A147549

BREAKER

- circuit

1шт.

26

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

27

193-1006

NUT,Keps, w/LW, 1/4"-20

- 1/4" NC hex Keps

2шт.

28

A147926

BREAKER

- circuit

1шт.

29

182-562

SCREW,Slotted Pan Hd, #10-24 x 7/8"

- #10-24 x 7/8" pan head

2шт.

30

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10-24 hex Keps

2шт.
