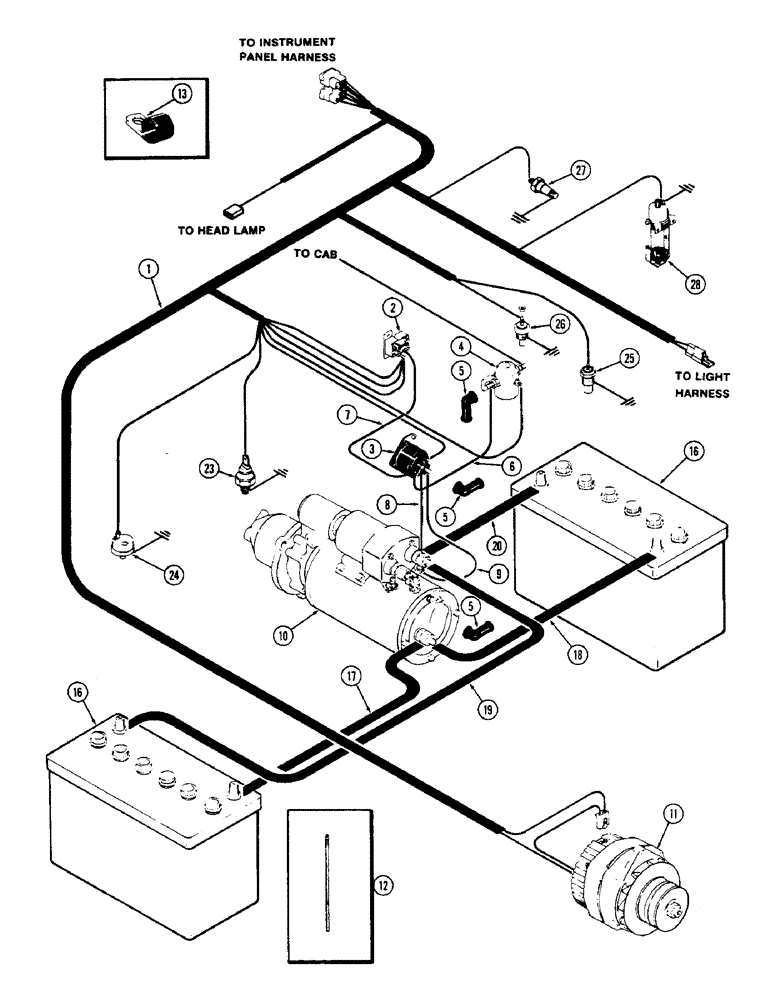

Запчасти Case IH 2870 (090) - ENGINE WIRING, USED PRIOR TO P.I.N. 8825418 (04) - ELECTRICAL SYSTEMS

1

A150831

HARNESS ASSEMBLY - wire, engine (Replaces A148540)

1шт.

2

A59704

BREAKER

- circuit (See figure 94)

1шт.

3

A39079

SOLENOID

SWITCH - solenoid, neutral start (See figure 94)

1шт.

4

A143500

SOLENOID SWITCH

SWITCH - solenoid, cab (See figure 94) (Replaces A77311)

1шт.

5

A21753

CAP

- rubber, switch terminal

3шт.

6

A150830

CABLE - starter to cab solenoid, red, 8" long (203.2 mm) (Replaces A75023)

1шт.

7

A75824

CABLE

- cab solenoid to circuit breaker, orange, 4-1/2" long (114.3 mm)

1шт.

8

A150829

CABLE

- starter to neutral solenoid, red, 54" long (1371.6 mm)

1шт.

9

A150828

CABLE - solenoid switch to starter, yellow, 54" long (1371.6 mm)

1шт.

10

REF

INSTRUCTION

STARTER ASSEMBLY - (See figure 106)

1шт.

11

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (See figure 106)

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, wire harness (Replaces L11541)

1шт.

13

49845

CLAMP

CLIP - harness

2шт.

16

REF

INSTRUCTION

BATTERY - (See figure 102)

2шт.

17

A75818

CABLE

- right hand battery, negative (See figure 102)

1шт.

18

A75819

CABLE

- left hand battery, negative (See figure 102)

1шт.

19

A75820

CABLE

- right hand battery, positive (See figure 102)

1шт.

20

A75821

CABLE

- left hand battery, positive (See figure 102)

1шт.

23

A161060

KIT

SWITCH KIT - air filter (See figure 10) (Replaces A137280)

1шт.

24

A139474

SWITCH

- fuel pressure

1шт.

25

A141558

SWITCH

- engine temperature

1шт.

26

D65446

SENDER UNIT

SENDER - engine water temperature (Replaces A135541)

1шт.

27

REF

INSTRUCTION

SWITCH - engine oil pressure (See figure 30 and 70)

1шт.

28

REF

INSTRUCTION

SOLENOID - ether starting aid (See figure 12)

1шт.
