Запчасти Case IH 2870 (088) - ENGINE WIRING, USED P.I.N. 8825418 TO 8827735 (04) - ELECTRICAL SYSTEMS

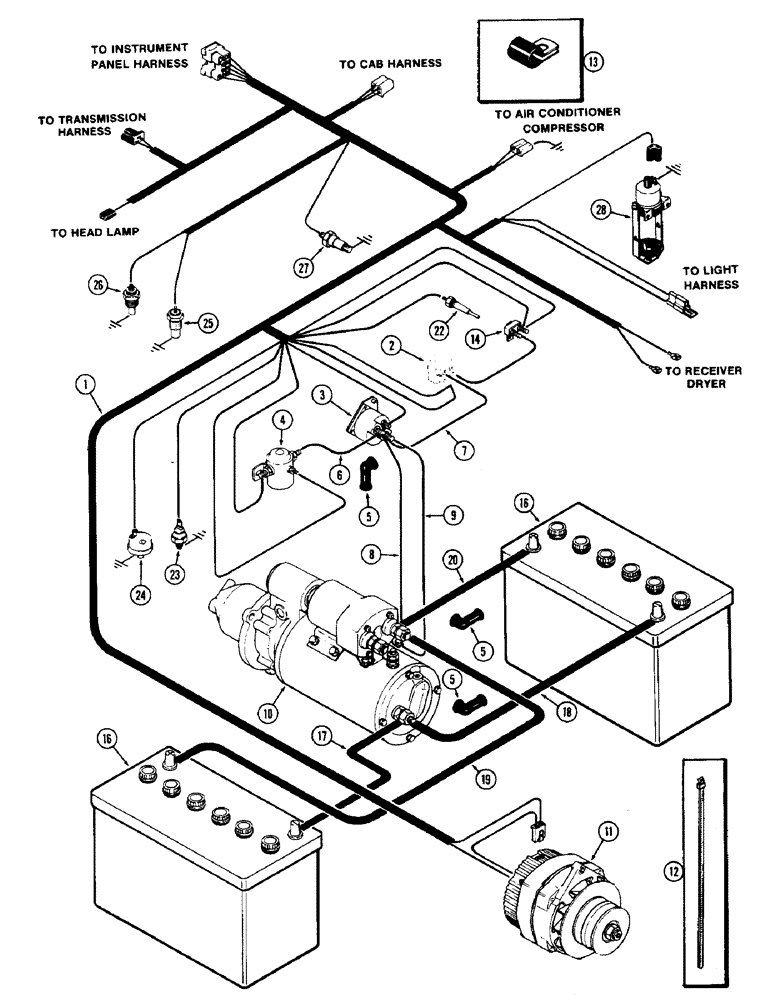

Схема запчастей Case IH 2870 - (088) - ENGINE WIRING, USED P.I.N. 8825418 TO 8827735 (04) - ELECTRICAL SYSTEMS
16
5
25
13
17
1
20
5
27
11
2
26
3
18
24
8
14
6
9
12
16
4
23
28
19
5
22
7
10

Артикул

Название

Примечание

Количество

1

A152385

HARNESS

ASSEMBLY - wire, engine

1шт.

2

A147004

BREAKER

- circuit (See figure 94)

1шт.

3

A39079

SOLENOID

SWITCH - solenoid, neutral start (See figure 94)

1шт.

4

A143500

SOLENOID SWITCH

SWITCH - solenoid, cab (See figure 94)

1шт.

5

A21753

CAP

- rubber, switch terminal

3шт.

6

A150830

CABLE - starter to cab solenoid, red, 8" long (203.2 mm)

1шт.

7

A147967

ELECTRICAL WIRE

CABLE - starter solenoid to circuit breaker, red, 6" long (152.4 mm)

1шт.

8

A150829

CABLE

- starter to neutral solenoid, red, 54" long (1371.6 mm)

1шт.

9

A150828

CABLE - solenoid switch to starter, yellow, 54" long (1371.6 mm)

1шт.

10

REF

INSTRUCTION

STARTER ASSEMBLY - (See figure 106)

1шт.

11

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - (See figure 106)

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, wire harness (Replaces L11541)

1шт.

13

A37179

CLIP

- harness

1шт.

14

A137775

BREAKER

- circuit, 20 ampere (See figure 94)

1шт.

16

REF

INSTRUCTION

BATTERY - (See figure 102)

2шт.

17

A75818

CABLE

- right hand battery, negative (See figure 102)

1шт.

18

A75819

CABLE

- left hand battery, negative (See figure 102)

1шт.

19

A75820

CABLE

- right hand battery, positive (See figure 102)

1шт.

20

A75821

CABLE

- left hand battery, positive (See figure 102)

1шт.

22

A145513

SENSOR

PROBE - coolant level sensing

1шт.

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex, Keps (Probe, water temperature sender)

3шт.

23

A161060

KIT

SWITCH KIT - air filter (See figure 10) (Replaces A137280)

1шт.

24

A139474

SWITCH

- fuel pressure

1шт.

25

A141558

SWITCH

- engine temperature

1шт.

26

D65446

SENDER UNIT

SENDER - engine water temperature (Replaces A135541)

1шт.

27

REF

INSTRUCTION

SWITCH - engine oil pressure (See figure 30 and 70)

1шт.

28

REF

INSTRUCTION

SOLENOID - ether starting aid (See figure 12)

1шт.

Выбрано товаров: 27
