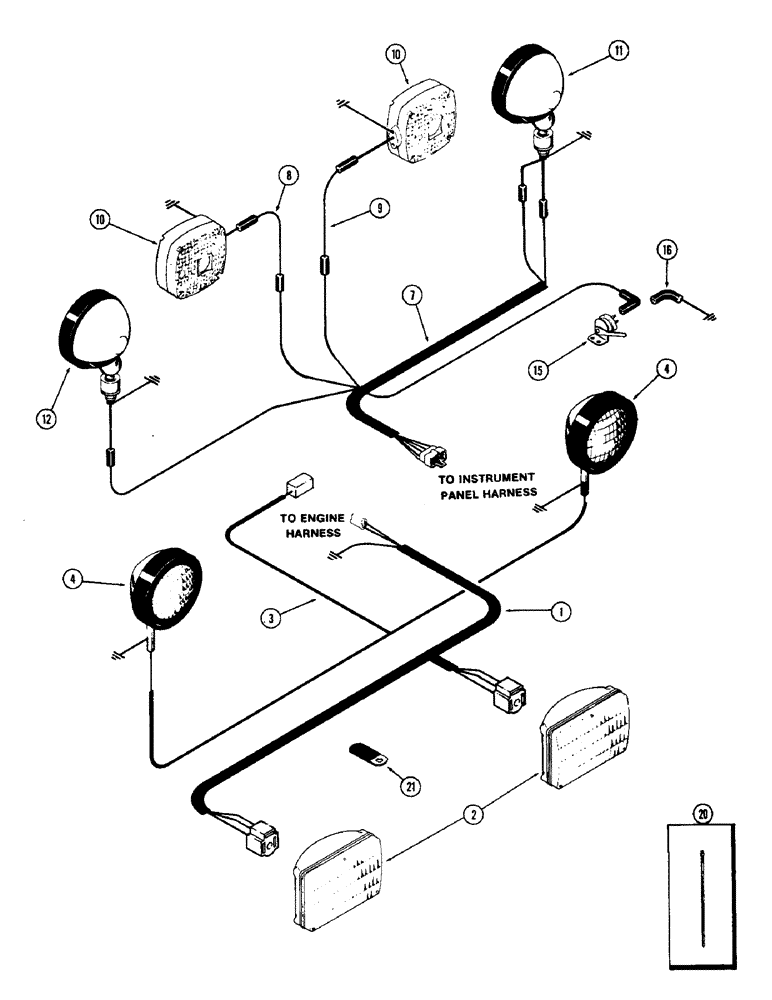

Запчасти Case IH 2870 (084) - LIGHT EQUIPMENT AND WIRING (04) - ELECTRICAL SYSTEMS

1

A142934

HARNESS

Wire, head lamp

1шт.

2

A139458

LAMP

Front head, rectangular (See figure 108)

2шт.

3

A142935

HARNESS

Wire, front flood lamp

1шт.

4

A59724

HEADLAMP

ASSEMBLY - front flood (See figure 110)

2шт.

7

F63857

SPARE PART Wire, rear lights

1шт.

8

F63878

ELECTRICAL WIRE

WIRE RH flasher lamp, 120" long (3048 mm)

1шт.

9

F63879

SPARE PART LH flasher lamp, 75" long (1905 mm)

1шт.

10

REF

INSTRUCTION

LAMP ASSEMBLY - flasher (See figure 108)

2шт.

11

A59703

LAMP

ASSEMBLY - rear flood and tail (See figure 110)

1шт.

12

A63822

HEADLIGHT

ASSEMBLY - rear flood (RH side) (See figure 110)

1шт.

15

A33977

SWITCH

Hand brake (See figure 206)

1шт.

16

A59711

ELECTRICAL WIRE

WIRE Ground, hand brake switch

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Nylon, wire harness (Replaces L11541)

1шт.

21

A37179

CLIP

Head lamp harness

3шт.
