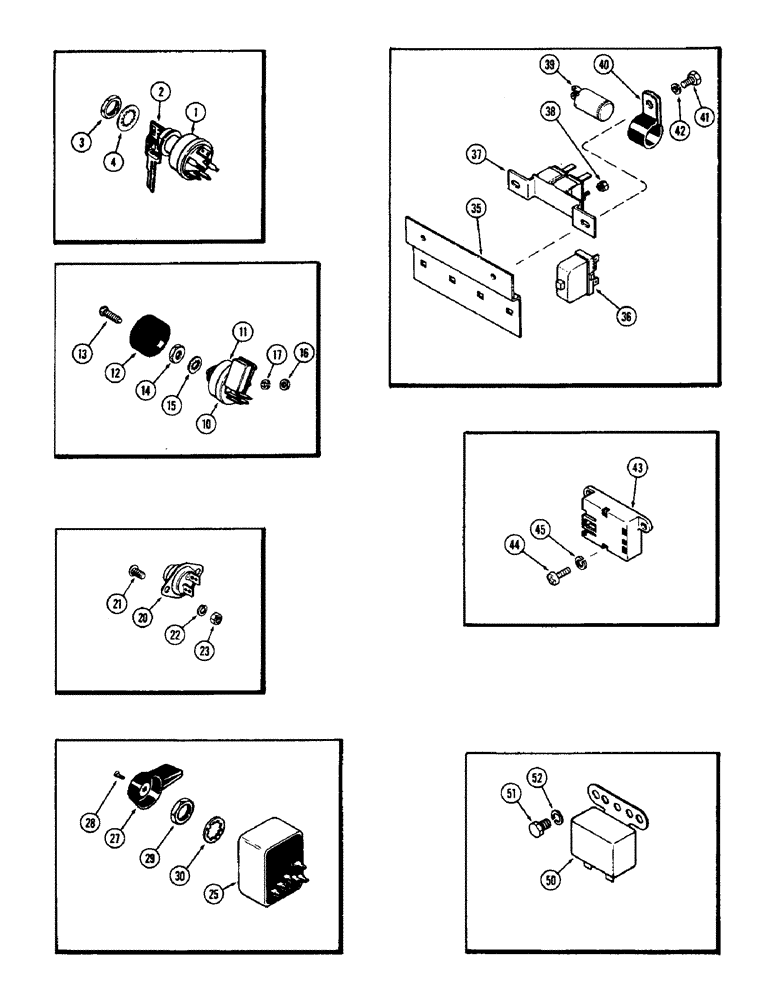

Запчасти Case IH 2870 (082) - INSTRUMENT PANEL COMPONENTS (04) - ELECTRICAL SYSTEMS

1

A77312

SWITCH

- starting

1шт.

2

A77313

SET OF 2 KEYS

KEY - starting switch (Set of 2)

1шт.

3

A77314

NUT

- mounting, starting switch

1шт.

4

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - 1" internal Shakeproof

1шт.

10

A64499

SWITCH

ASSEMBLY - light, Includes: Ref. 11

1шт.

11

A45686

CIRCUIT-BREAKER

BREAKER - circuit

1шт.

12

A59695

KNOB

- light switch

1шт.

13

182-565

SCREW,Sltd Pan Hd, #8-32 x 5/8"

- knob, #8-32 x 5/8" pan head slotted

1шт.

14

A20467

NUT

- mounting, Serial Range: switch-panel

1шт.

15

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - 5/8" internal Shakeproof

1шт.

16

129-37

NUT,#10-32

Terminal #10-32

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

A36948

SWITCH

- push button, cold start

1шт.

21

173-259

SCREW,Sl Rnd Hd, #10 - 32 x 2"

- #10-32 x 1/2" round head

2шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

23

129-37

NUT,#10-32

2шт.

25

A77184

SWITCH

- combination, turn signal and flasher

1шт.

A77185

KIT

PACKAGE - switch handle, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

HANDLE - (Order A77185)

1шт.

28

NSS

NOT SOLD SEPARAT

SCREW - knob

1шт.

29

NSS

NOT SOLD SEPARAT

NUT - mounting

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

35

A150086

BRACKET - component mounting, Start Serial: 8825418

1шт.

36

A143506

BUZZER

- audible warning, Start Serial: 8825418

4шт.

37

A143857

DIODE

- dual lamp check, Start Serial: 8825418

1шт.

38

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps, Start Serial: 8825418

1шт.

39

A145677

RELAY

- time-delay, Start Serial: 8825418

1шт.

40

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- relay mounting (Replaces R12102), Start Serial: 8825418

1шт.

41

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

, Start Serial: 8825418

2шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4", Start Serial: 8825418

2шт.

43

A147382

CONNECTOR, ELEC

MODULE - low coolant indicator (Replaces A145512), Start Serial: 8825418

1шт.

44

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- #10-24 x 3/4" pan head, Phillips, Start Serial: 8825418

2шт.

45

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10, Start Serial: 8825418

2шт.

50

A38787

BUZZER

- warning, parking brake, Serial Range: -8825418

1шт.

51

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

, Serial Range: -8825418

2шт.

52

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4", Serial Range: -8825418

2шт.
