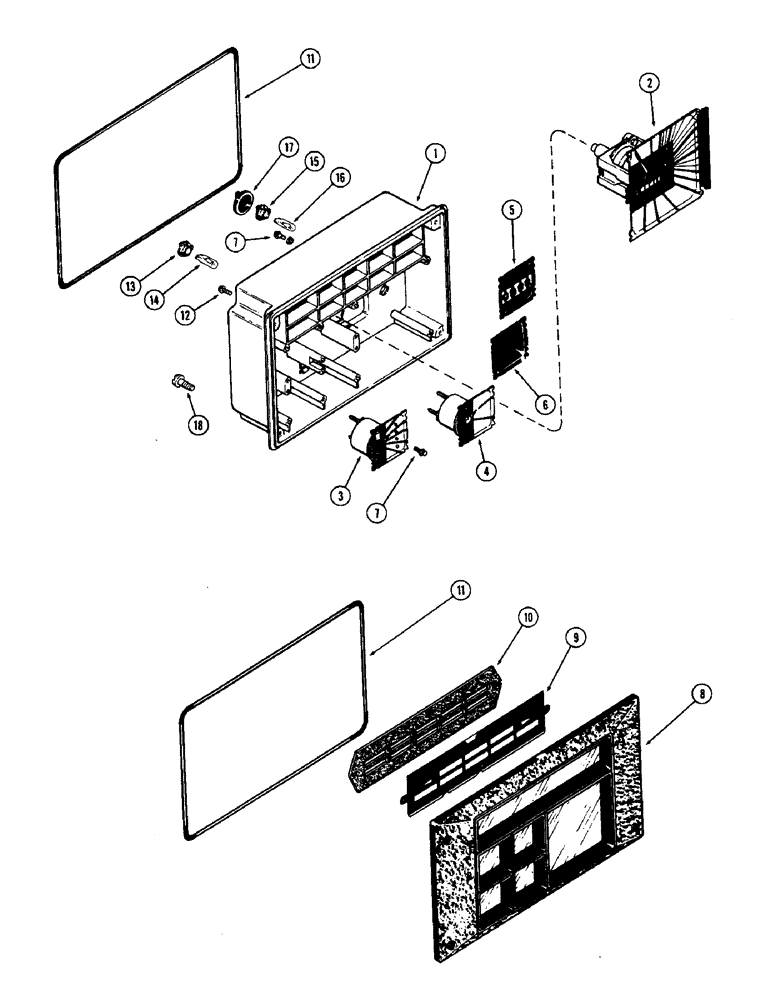

Запчасти Case IH 2870 (080) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

CLUSTER ASSEMBLY - instrument (Not available as an assembly, order components), Includes: Ref. 1 - 17

1шт.

1

D71335

CASE ASSY.

CASE ASSEMBLY - instrument (Includes printed circuit)

1шт.

2

A45004

ELECTRICAL GAUGE

TACHOMETER

1шт.

3

D71338

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

4

A45011

ELECTRICAL GAUGE

GAUGE - engine water temperature

1шт.

5

A45010

COVER

- pop out

1шт.

6

A45010

COVER

- blank, cluster opening

1шт.

7

A45093

SCREW,Hex Slotted, 12.70"

- instrument gauge

8шт.

8

A45007

LENS

LENS - bezel, instrument

1шт.

9

A45008

STRIP

- indentification, instrument lights

1шт.

10

D71342

GASKET,3.05mm Thk

- identification strip

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

- cluster case and lens

2шт.

12

A45093

SCREW,Hex Slotted, 12.70"

-, Serial Range: bezel-case

4шт.

13

A45006

SOCKET/RECEPTACLE

SOCKET - lamp (Green)

9шт.

14

D71346

TAIL LAMP,12V

LAMP - green socket (#168)

9шт.

15

A45005

SOCKET/RECEPTACLE

SOCKET - lamp (Blue gray)

3шт.

16

W10478

LAMP

- blue gray socket (#194)

3шт.

17

D71344

COVER

BOOT - lamp socket

3шт.

18

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- #10-24 x 5/8" pan head

4шт.
