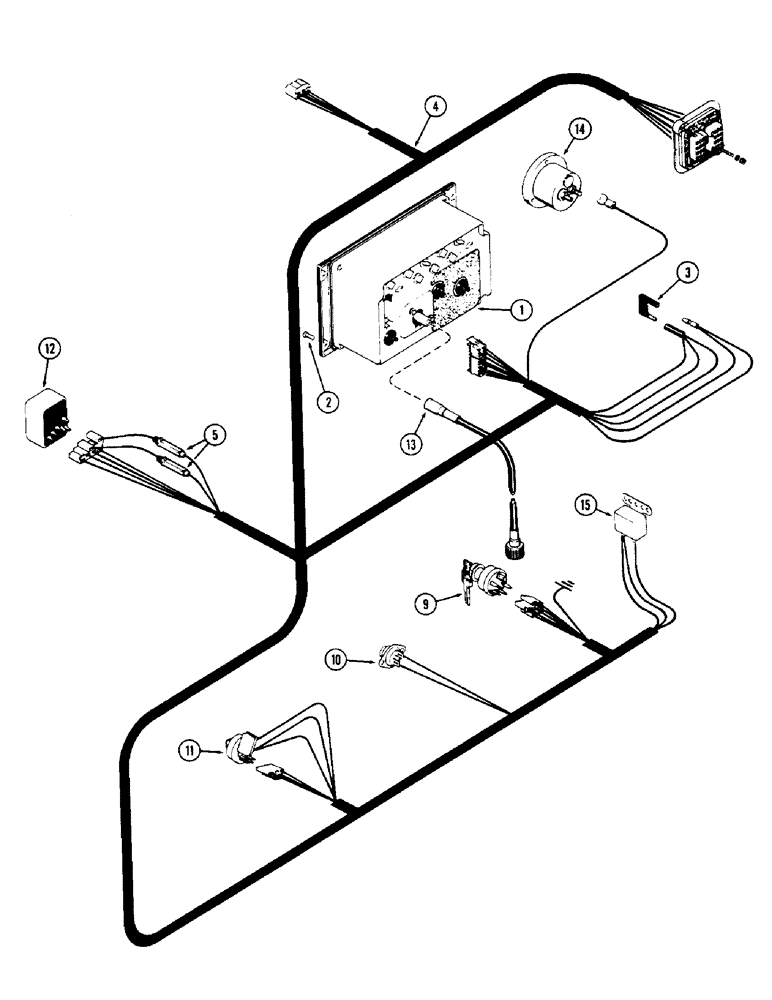

Запчасти Case IH 2870 (078) - INSTRUMENT PANEL WIRING, USED PRIOR TO P.I.N. 8825418 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See figure 80)

1шт.

2

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- cluster, #10-24 x 5/8" pan head

4шт.

3

A147976

DIODE

- instrument cluster (Replaces A146413)

1шт.

4

A148539

HARNESS

ASSEMBLY - wire, instrument panel

1шт.

5

223-15

FUSE,15 Amp, Type 3AG

- 15 ampere, light switch and turn signal switch

2шт.

9

A77312

SWITCH

- starting (See figure 82)

1шт.

10

A36948

SWITCH

- push button, cold start (See figure 82)

1шт.

11

A64499

SWITCH

- light (See figure 82)

1шт.

12

A77184

SWITCH

- flasher and turn signal (See figure 82)

1шт.

13

A144291

CABLE

- tachometer drive, 90" long (2286 mm)

1шт.

14

REF

INSTRUCTION

PYROMETER - (See figure 16)

1шт.

15

A38787

BUZZER

- warning, parking brake (See figure 82)

1шт.
