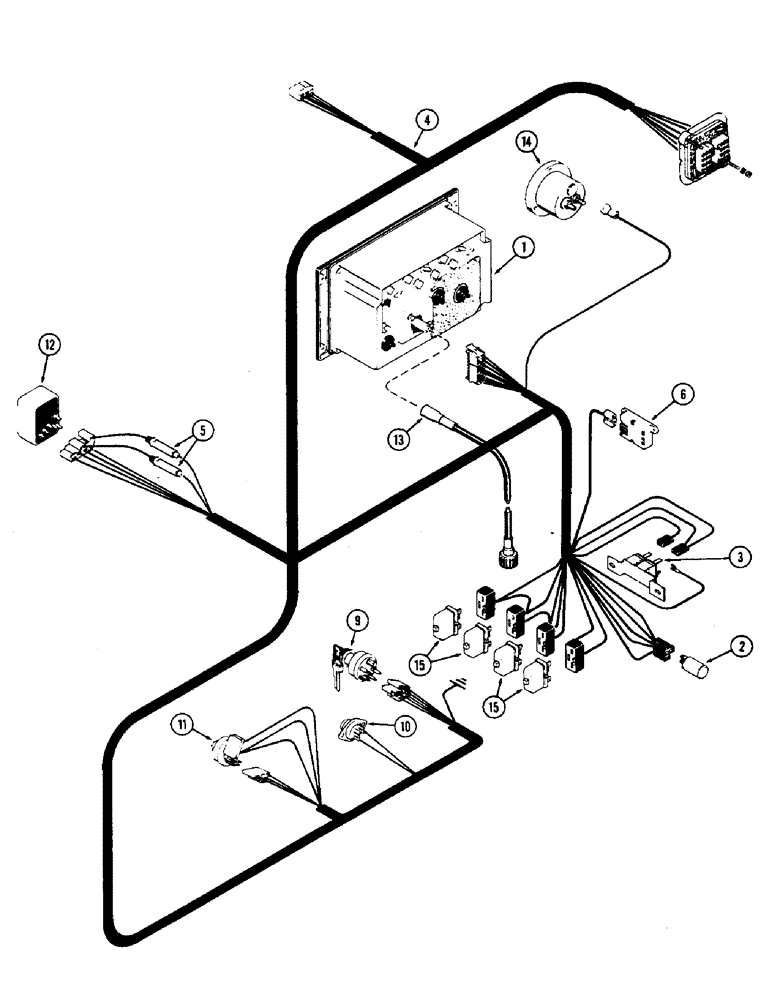

Запчасти Case IH 2870 (076) - INSTRUMENT PANEL WIRING, USED P.I.N. 8825418 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See figure 80)

1шт.

2

A145677

RELAY

- time-delay (See figure 82)

1шт.

3

A143857

DIODE

- dual lamp check (See figure 82)

1шт.

4

A152269

HARNESS

ASSEMBLY - wire, instrument panel

1шт.

5

223-15

FUSE,15 Amp, Type 3AG

- 15 ampere, light switch and turn signal switch (No longer required)

2шт.

6

A147382

CONNECTOR, ELEC

MODULE - low coolant indicator (See figure 82) (Replaces A145512)

1шт.

9

A77312

SWITCH

- starting (See figure 82)

1шт.

10

A36948

SWITCH

- pushbutton, cold start (See figure 82)

1шт.

11

A64499

SWITCH

- light (See figure 82)

1шт.

12

A77184

SWITCH

- flasher and turn signal (See figure 82)

1шт.

13

A144291

CABLE

- tachometer drive, 90" long (2286 mm)

1шт.

14

REF

INSTRUCTION

PYROMETER - (See figure 16)

1шт.

15

A143506

BUZZER

- audible warning (See figure 82)

4шт.
