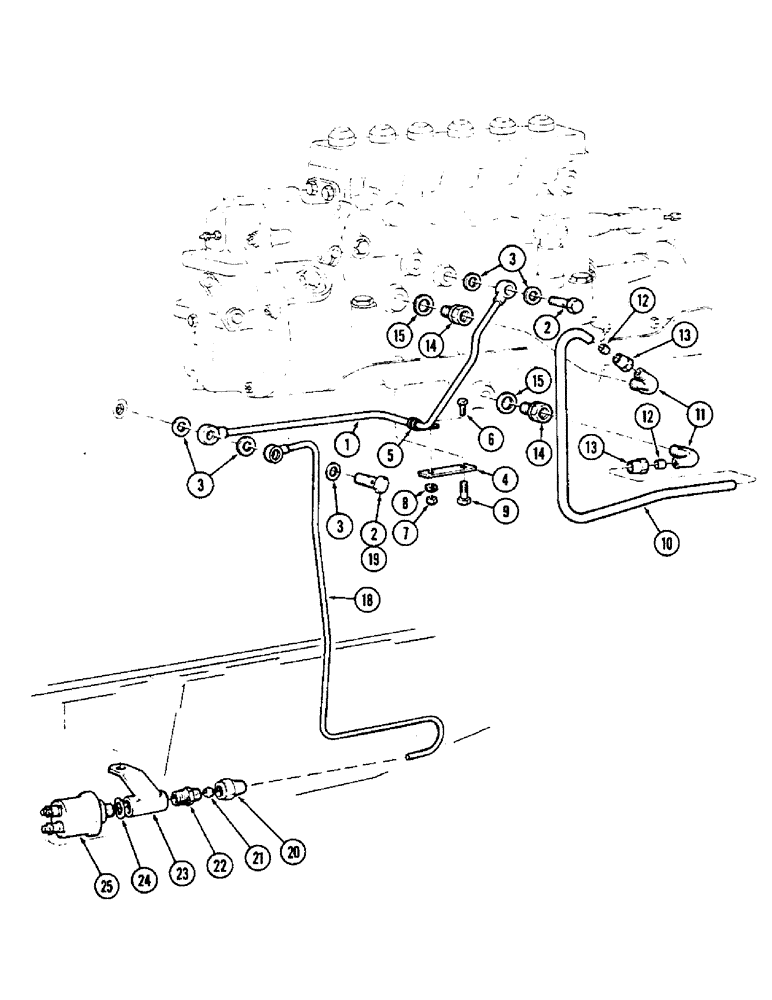

Запчасти Case IH 2870 (070) - INJECTION PUMP LUBRICATION TUBES, 674 CUBIC INCH DIESEL (03) - FUEL SYSTEM

1

A46358

TUBE

- lubrication, cylinder block to pump (Replaces A46250)

1шт.

2

A46251

BANJO BOLT

- hollow (Used prior to engine serial no. 5204755) (See Ref. 19)

2шт.

3

A45731

GASKET

- washer

1шт.

4

A46255

BRACKET

- tube clamp

1шт.

5

A46257

CLAMP

- lube tube

1шт.

6

513-404

SCREW

BOLT - 6 x 1.0 x 16 mm, hex head

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

8

195-515

WASHER,#12

- 1/4 x 1/2 x 3/64" (6.35 x 12.7 x 1.19 mm)

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT - (Part of injection pump assembly)

1шт.

10

A46252

TUBE

- return, injection pump to cylinder block

1шт.

11

A45858

FITTING

ELBOW - return tube

2шт.

12

A46254

SLEEVE

- tube nut

2шт.

13

A46256

NUT

-, Serial Range: elbow-tube

2шт.

14

A46253

CONNECTOR, ELEC

CONNECTOR -, Serial Range: pump-block

2шт.

15

A45766

GASKET

- washer, connector

2шт.

18

A46392

TUBE

- oil pressure monitor, switch 1st used engine s/n 5204755

1шт.

19

A46413

SCREW,Hollow, 3/8" x 1 1/4"

BOLT - pressure and lubrication tube, oil switch 1st used engine s/n 5204755

1шт.

20

A46395

NUT

- pressure tube, oil switch 1st used engine s/n 5204755

1шт.

21

A46394

SLEEVE

- pressure tube, oil switch 1st used engine s/n 5204755

1шт.

22

A46393

CONNECTOR, ELEC

CONNECTOR - tube to switch bracket, oil pressure 1st used engine s/n 5204755

1шт.

23

A46391

BRACKET

- pressure switch, oil 1st used engine s/n 5204755

1шт.

24

A45731

GASKET

- switch to bracket, oil pressure 1st used engine s/n 5204755

1шт.

25

A46390

SWITCH

- oil pressure monitor (See figure 30 for switch used prior to engine serial no. 5204755)

1шт.
