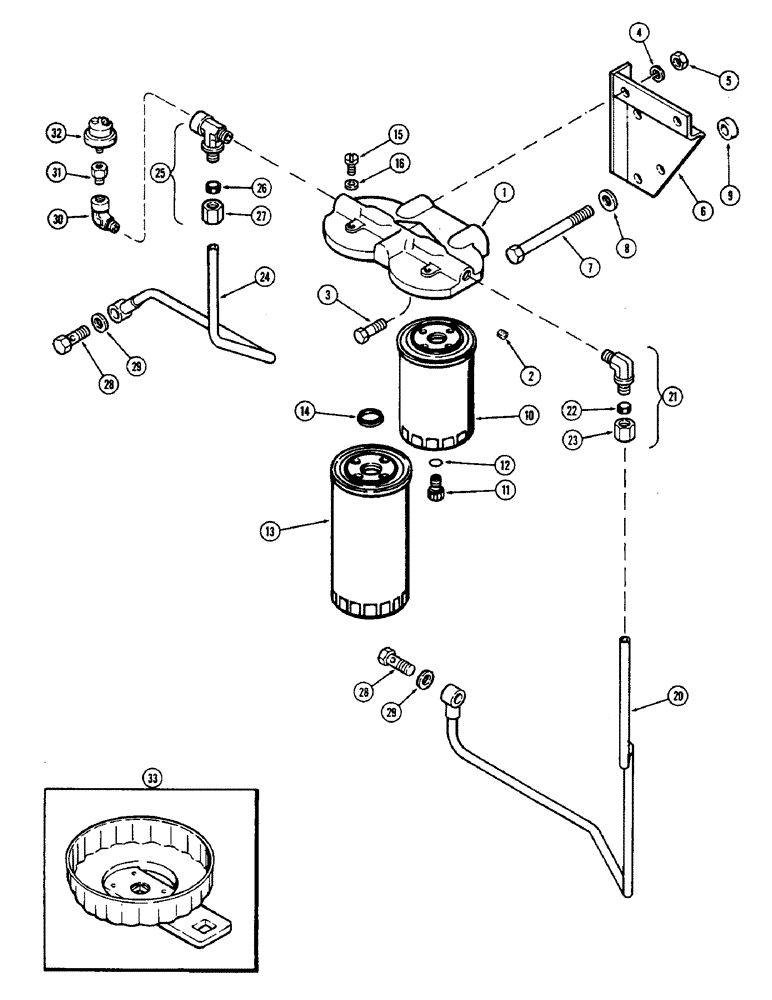

Запчасти Case IH 2870 (066) - FUEL FILTER SYSTEM, 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

A62339

HEAD

ASSEMBLY - first and second stage filters, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8" PT socket head

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

A46284

BRACKET

- filter head mounting

1шт.

7

513-5603

BOLT

- 12 x 1.75 x 135 mm, hex head

3шт.

8

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

2шт.

9

A46285

BUSHING

SPACER - mounting bracket

3шт.

A44068

FUEL FILTER

KIT, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - first stage, Includes: Ref. 11 and 12

1шт.

11

G49080

PLUG

- drain

1шт.

12

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

13

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - second stage, Includes: Ref. 14

1шт.

14

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

16

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

GASKET - bleed screw, 13/64 x 5/16 x 3/64" (5.16 x 7.94 x 1.19 mm)

2шт.

20

A150627

TUBE

- inlet to filter from pump

1шт.

21

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degree, Includes: Ref. 22 and 23

1шт.

22

222-104

SLEEVE,3/8" Tube

- for (9.53 mm) 3/8" Tube

1шт.

23

222-114

NUT,5/8"-24

NUT - for 3/8" tube (9.53 mm)

1шт.

24

A150628

TUBE

- outlet, Serial Range: filter-pump

1шт.

25

222-87

TEE,5/8"-24 Male x 1/4 NPT Fem Run x 1/4 NPT Br

CONNECTOR ASSEMBLY - (T type), Includes: Ref. 26 and 27

1шт.

26

222-104

SLEEVE,3/8" Tube

- for (9.53 mm) 3/8" Tube

1шт.

27

122-114

NUT

- for 3/8" tube (9.53 mm)

1шт.

28

A150818

BOLT,M14 x 1.5 x 1 mm

SCREW -, Serial Range: tube-pump

2шт.

29

A150819

GASKET

- screw and tube

4шт.

20

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (Pressure switch) 90º, 1/8"-27, NPT

1шт.

31

A155051

SPARE PART

SNUBBER - pressure switch (Replaces A28061)

1шт.

32

A139474

SWITCH

- fuel pressure sending

1шт.

33

A64761

TOOL

- filter removing

1шт.
