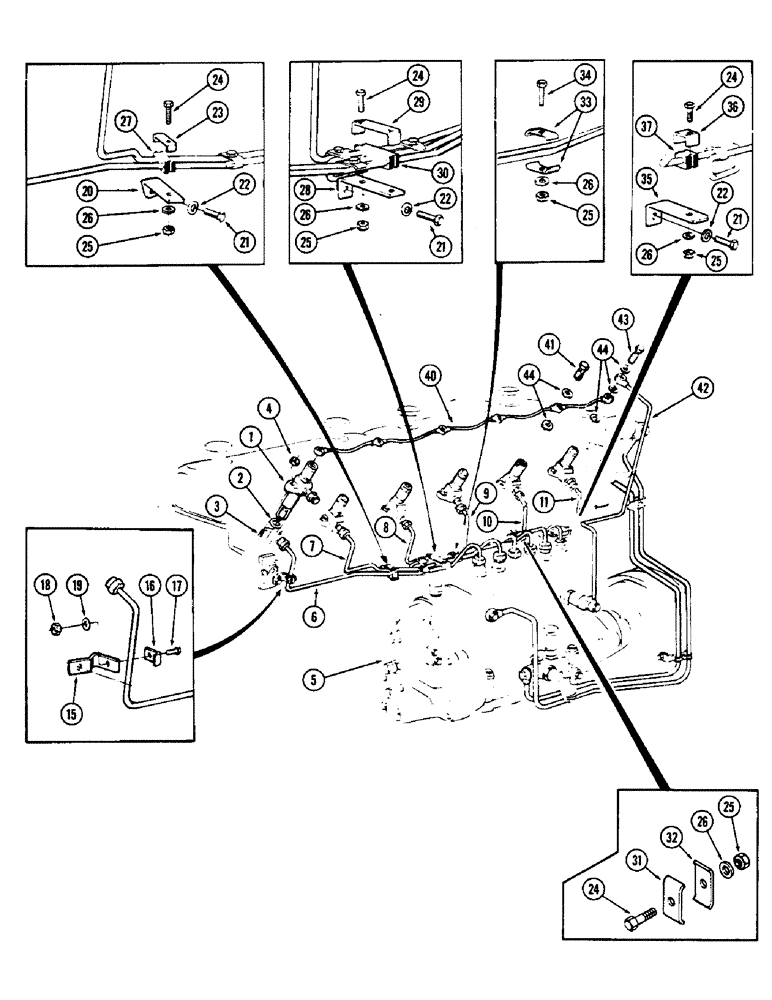

Запчасти Case IH 2870 (062) - FUEL INJECTION SYSTEM, 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injector (See figure 64)

6шт.

2

NLS

NO LONGER SERVICED

- nozzle to head (Copper)

6шт.

3

A45714

STUD

STUB -, Serial Range: nozzle-head

12шт.

4

A46073

NUT

- nozzle stud

12шт.

5

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See figure 64)

1шт.

6

A46056

TUBE

- injection pump to #6 nozzle

1шт.

7

A46055

TUBE

- injection pump to #5 nozzle

1шт.

8

A46281

TUBE

- injection pump to #4 nozzle

1шт.

9

A46280

TUBE

- injection pump to #3 nozzle

1шт.

10

A46279

TUBE

- injection pump to #2 nozzle

1шт.

11

A46278

TUBE

- injection pump to #1 nozzle

1шт.

15

A46219

BRACKET

- clamp, #6 tube

1шт.

16

A46220

CLAMP

- #6 tube

1шт.

17

A46221

BOLT

- clamp, 5 x 0.8 x 22 MM, hex head

1шт.

18

525-3

NUT

- 5 MM hex

1шт.

19

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.19 MM)

1шт.

20

A46212

BRACKET

- clamp, #5 and #6 tubes

1шт.

21

513-603

BOLT

- bracket, 8 x 1.25 x 14 MM, hex head

4шт.

22

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.53 x 22.23 x 1.98 MM)

4шт.

23

A46215

CLAMP

- for 2 tubes

2шт.

24

513-307

BOLT

- clamp, 5 x 0.8 x 30 MM, hex head

5шт.

25

525-3

NUT

- 5 MM hex

10шт.

26

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.19 MM)

11шт.

27

A46216

GROMMET

- for 2 tubes (Rubber)

4шт.

28

A46211

BRACKET

- clamp, #4, #5 and #6 tubes

1шт.

29

A46217

CLAMP

- for 3 tubes

1шт.

30

A46218

GROMMET

- for 3 tubes (Rubber)

2шт.

31

A46454

CLAMP

- tube, front

1шт.

32

A46455

CLAMP

- tube, rear

1шт.

33

A46222

CLAMP

- for 1 tube

10шт.

34

513-304

BOLT

- 5 x 0.8 x 16 MM, hex head

6шт.

35

A46210

BRACKET

- tube clamp

1шт.

36

A46213

CLAMP

- for 1 tube

1шт.

37

A46214

GROMMET

- for 1 tube (Rubber)

1шт.

40

A46057

TUBE

- fuel return (Leak-off)

1шт.

41

A46058

BANJO BOLT

- fuel return, Serial Range: tube-nozzle

5шт.

42

A46059

TUBE

- fuel return, Serial Range: (Leak-off)-pump

1шт.

43

A46060

BANJO BOLT

- fuel return tube to no. 1 nozzle

1шт.

44

A46379

WASHER

GASKET - fuel return tubes (Copper) (Replaces aluminum gasket A46071)

13шт.
