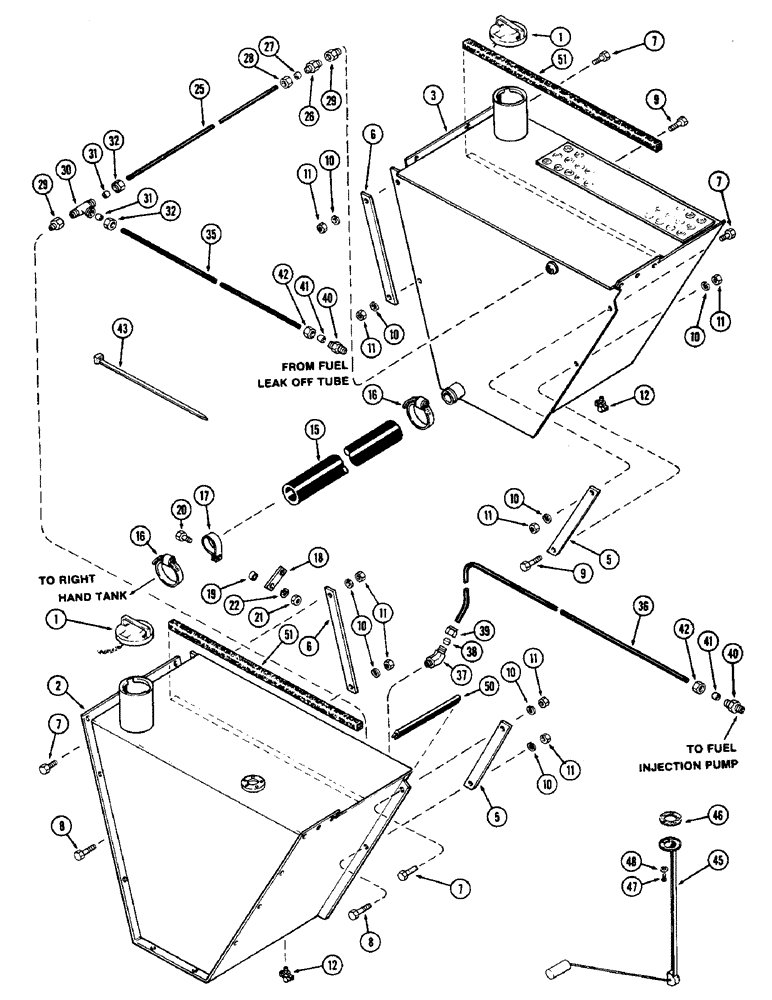

Запчасти Case IH 2870 (060) - FUEL TANKS AND LINES, 674 CUBIC INCH DIESEL ENGINE (03) - FUEL SYSTEM

1

51200859

CAP

- filler, fuel tank

2шт.

2

A144081

TANK

- fuel, right hand, 75 gallons (284 L)

1шт.

3

A144075

TANK

- fuel, left hand, 75 gallons (284 L)

1шт.

5

A144080

BUSHING

SPACER - front, fuel tank

2шт.

6

A140522

BUSHING

SPACER - rear, fuel tank

2шт.

7

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

8

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

3шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- 5/8 x 3-1/2" NC hex

2шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

129-107

NUT,5/8"-11, G5

8шт.

12

217-81

VALVE

- drain, water trap (1/8" PT)

2шт.

15

A160192

HOSE,2.00" ID x 29.00", SAE 30R1 PER SAE J30 OR SAE 30R2 TYPE 2

2.00" ID x 29.00", SAE 30R1 per SAE J30 - Passage, Tank to Tank (Replaces A144779)

1шт.

16

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46 to 69.85 mm) #36, 1.81/2.75 Type F Worm

2шт.

17

A8593

CLAMP

- hose support

1шт.

18

A160255

STRAP

- hose support (Replaces A144780)

1шт.

19

A31263

BUSHING

SPACER - clamp

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

A63997

TUBE

- vent, tank to tank, 3/8" OD x 25" nylon (9.53 x 635 mm)

1шт.

26

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

CONNECTOR ASSEMBLY - left hand tank, Includes: Ref. 27 and 28

1шт.

27

222-5186

SLEEVE,3/8" Tube

- for (9.53 mm) 3/8" Tube

1шт.

28

222-5181

NUT,9/16"-24

NUT - for 3/8" tube (9.53 mm)

1шт.

29

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

2шт.

30

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSEMBLY - right hand tank, Includes: Ref. 31 and 32

1шт.

31

222-5186

SLEEVE,3/8" Tube

- for (9.53 mm) 3/8" Tube

2шт.

32

222-5181

NUT,9/16"-24

NUT - for 3/8" tube (9.53 mm)

2шт.

35

A60771

TUBE

- return, nozzle leak-off to tank, 3/8 OD x 83-1/2" nylon (9.53 x 2120.9 mm) (Replaces A136891)

1шт.

36

A67323

TUBE

- tank to pump, 3/8" OD x 95" nylon (9.53 x 2413 mm) (Replaces A144833 and A150838)

1шт.

37

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSEMBLY - 45 degree, Includes: Ref. 38 and 39

1шт.

38

222-5186

SLEEVE,3/8" Tube

- for (9.53 mm) 3/8" Tube

1шт.

39

222-5181

NUT,9/16"-24

NUT - for 3/8" tube (9.53 mm)

1шт.

40

222-5101

CONNECTOR, ELEC,17/32"-24 x 1/4" NPT

CONNECTOR ASSEMBLY, Includes: Ref. 41 and 42

2шт.

41

222-5186

SLEEVE,3/8" Tube

- for (9.53 mm) 3/8" Tube

1шт.

42

222-5181

NUT,9/16"-24

NUT - for 3/8" tube (9.53 mm)

1шт.

43

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, fuel tubes (Replaces L11541)

5шт.

45

A144084

UNIT

SENDER - fuel gauge

1шт.

46

A11822

GASKET

-, Serial Range: sender-tank

1шт.

47

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" round head

5шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

50

A141897

X

TRIM - air conditioner tubes, 11-1/2" long (292.1 mm)

1шт.

51

A150492

FOAM

- sealing, tank to cab, 2 x 2 x 35-1/2" (50.8 x 50.8 x 901.7 mm)

2шт.
