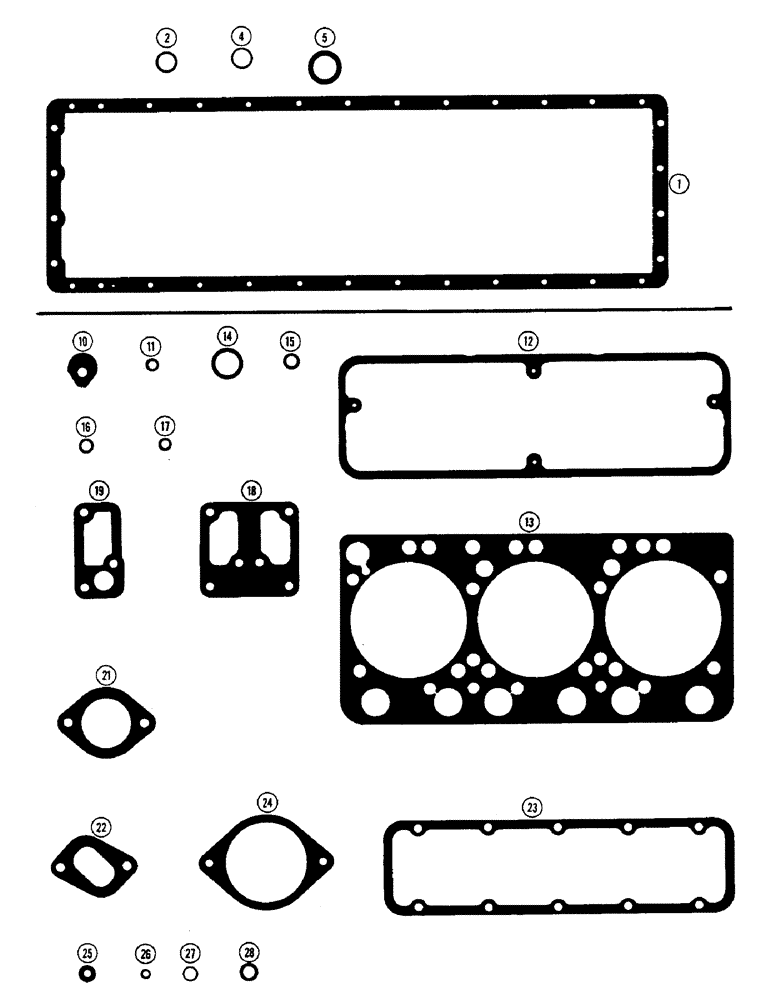

Запчасти Case IH 2870 (056) - GASKET KIT, 674 CUBIC INCH DIESEL ENGINE, FOR COMPLETE ENGINE OVERHAUL (02) - ENGINE

A46143

GASKET

KIT - oil pan, Includes: Ref. 1 - 5

1шт.

1

A45860

GASKET

- oil pan

1шт.

2

A45885

GASKET

WASHER - oil pan plug

1шт.

A45887

GASKET

- cover

1шт.

4

A46167

O-RING,9 mm ID x 15 mm OD

- dipstick

1шт.

5

A46313

GASKET

- dipstick tube

1шт.

A46295

GASKET

KIT - cylinder head overhaul, Includes: Ref. 10 - 28

2шт.

10

A45727

GASKET

- rocker arm bracket, for cylinder head overhaul

3шт.

11

A45731

GASKET

WASHER - lube tubes, for cylinder head overhaul

6шт.

12

A45742

GASKET

- valve cover to head, for cylinder overhaul

1шт.

13

A45744

GASKET

- head to block (Steel), for cylinder overhaul

1шт.

14

A45745

RING

SEAL - head gasket (38.7 mm), for cylinder overhaul

6шт.

15

A45746

RING

SEAL - head gasket (15.7 mm), for cylinder overhaul

2шт.

16

A45747

RING

SEAL - head gasket (23.5 mm), for cylinder overhaul

2шт.

17

A46345

RING

SEAL - head gasket (12.7 mm), for cylinder overhaul

1шт.

18

A46383

MANIFOLD GASKET

- water flange, for cylinder head overhaul

1шт.

19

A45757

GASKET

- side cover, for cylinder head overhaul

2шт.

21

A46368

MANIFOLD GASKET

- exhaust manifold, large, for cylinder head overhaul

2шт.

22

A46369

MANIFOLD GASKET

- exhaust manifold, small, for cylinder head overhaul

2шт.

23

A46360

GASKET

- intake manifold, for cylinder head overhaul

2шт.

24

A46362

GASKET

- intake tube, for cylinder head overhaul

1шт.

25

A46069

GASKET

- fuel injection nozzle, copper, for cylinder head overhaul

3шт.

26

A46379

WASHER

- leak-off tube, for cylinder head overhaul

8шт.

27

A46290

RING

SEAL - head gasket (19.7 mm), for cylinder overhaul

9шт.

28

A46291

RING

SEAL - head gasket (32.7 mm), for cylinder overhaul

1шт.
