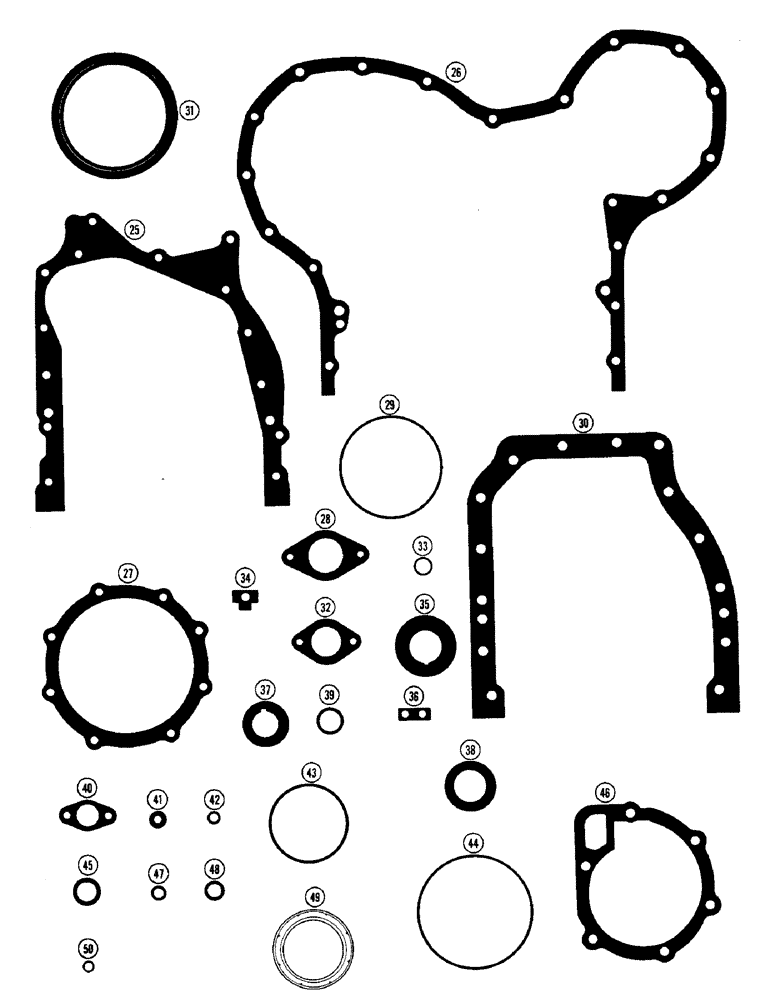

Запчасти Case IH 2870 (054) - GASKET KIT, 674 CUBIC INCH DIESEL ENGINE, FOR COMPLETE ENGINE OVERHAUL (02) - ENGINE

A46341

GASKET

KIT - complete engine overhaul (Continued from page 52), Includes: Ref. 25 - 50

1шт.

25

A46437

GASKET

- timing gear housing

1шт.

26

A46439

GASKET

- timing window cover

1шт.

27

A45871

GASKET

- tachometer drive cover

1шт.

28

A46359

GASKET

- oil cooler elbow

1шт.

29

A45876

RING,119.5 mm ID x 125.5 mm OD

O-RING - oil filler flange

1шт.

30

A46438

GASKET

- flywheel housing

1шт.

31

A45879

SEAL

- oil, crankshaft rear

1шт.

32

A46436

GASKET

- breather tube

2шт.

33

A45913

O-RING,22.1 mm ID x 1.6 mm

- oil pump port

1шт.

34

A45927

LOCK WASHER

- lock, camshaft flange and idler gear

4шт.

35

A45930

LOCK WASHER

- lock, camshaft nut

1шт.

36

A45935

LOCK WASHER

- lock, idler gear

1шт.

37

A45945

WASHER

- locking, pump drive shaft nut

1шт.

38

A45946

SEAL

- oil, injection pump drive shaft

1шт.

39

A45948

WASHER

- tachometer drive gear

1шт.

40

A45968

GASKET

- oil pump suction tube

1шт.

41

NLS

NO LONGER SERVICED

- fuel injection nozzle, copper

6шт.

42

A46379

WASHER

- leak-off tube

15шт.

43

A46178

O-RING,99.5 mm ID x 3mm

- blind cover, front

1шт.

44

A46193

O-RING,134.5 mm ID x 140.5 mm OD

- injection pump shelf

1шт.

45

A46434

GASKET

- return line

1шт.

46

A46258

GASKET

- water pump

1шт.

47

A46290

RING

SEAL - head gasket (19.7 mm)

18шт.

48

A46291

RING

SEAL - head gasket (32.7 mm)

2шт.

49

A46435

SEALING RING

- oil, crankshaft front

1шт.

50

A46345

RING

SEAL - head gasket (12.7 mm)

2шт.

A46294

KIT

GASKET KIT - oil cleaner (See figure 30 for parts illustrations)

1шт.

A45920

O-RING

- cyclone (Large)

1шт.

A45976

GASKET

- cleaner, Serial Range: housing-bracket

1шт.

A45987

RING

- snap, cover nut

1шт.

A45988

GASKET

-, Serial Range: bracket-block

1шт.

A45991

O-RING,4.359" ID x 4.637" OD

- cover to rotor

1шт.

A45992

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

- cover

1шт.

A45995

GASKET

- cover nut

1шт.

A45997

GASKET

- pressure switch

1шт.

A46154

GASKET

- cooler and, Serial Range: cleaner-bracket

2шт.

A46176

RING,26.2 mm ID x 32.2 mm OD

O-RING - cyclone (Small)

1шт.

A46177

O-RING,13.3 mm ID x 18.1 mm OD

- pressure switch

1шт.

A46143

GASKET

KIT - oil pan (See figure 56)

1шт.
