Запчасти Case IH 2870 (052) - GASKET KIT, 674 CUBIC INCH DIESEL ENGINE, FOR COMPLETE ENGINE OVERHAUL (02) - ENGINE

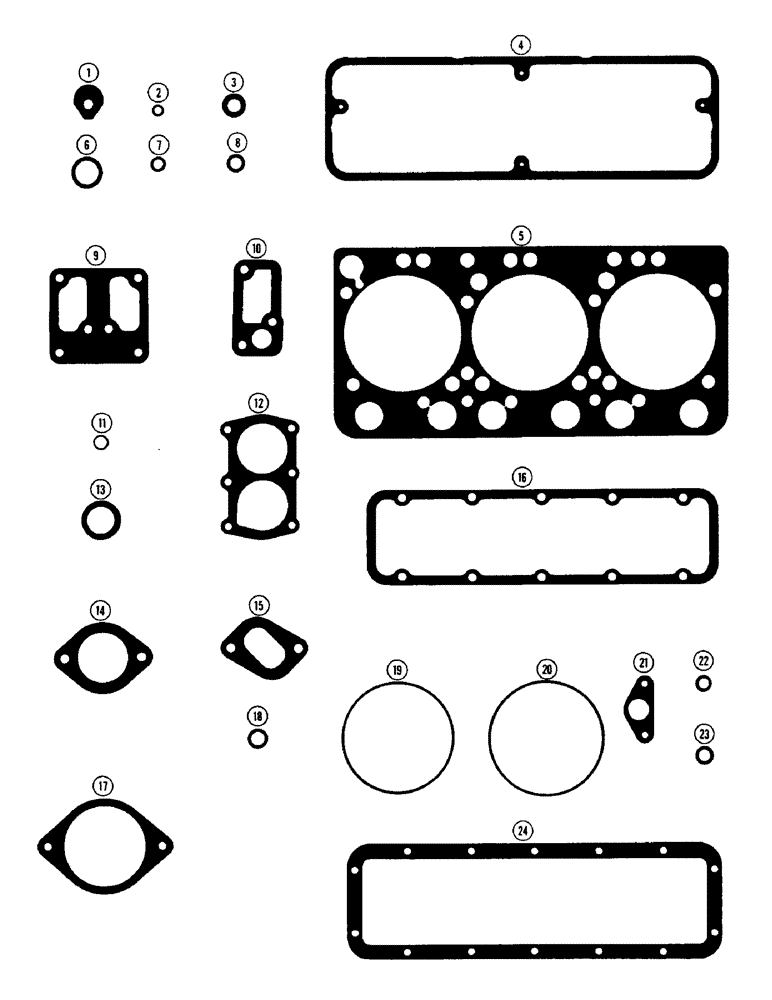

Схема запчастей Case IH 2870 - (052) - GASKET KIT, 674 CUBIC INCH DIESEL ENGINE, FOR COMPLETE ENGINE OVERHAUL (02) - ENGINE
14
13
20
4
15
24
16
7
3
9
17
19
8
11
10
18
23
6
22
12
5
1
21
2

Артикул

Название

Примечание

Количество

A46341

GASKET

KIT- complete engine overhaul (Replaces A46142 and A46296), Includes: Ref. 1 - 24

1шт.

1

A45727

GASKET

- rocker arm bracket

6шт.

2

A45731

GASKET

WASHER - lube tubes

15шт.

3

A46365

GASKET

- valve cover nut, rubber

4шт.

4

A45742

GASKET

- valve, Serial Range: cover-head

2шт.

5

A45744

GASKET

- head to block, steel

2шт.

6

A45745

RING

SEAL - head gasket (38.7 mm)

12шт.

7

A45746

RING

SEAL - head gasket (15.7 mm)

4шт.

8

A45747

RING

SEAL - head gasket (23.7 mm)

4шт.

9

A46383

MANIFOLD GASKET

- water flange

1шт.

10

A45757

GASKET

- side cover, cylinder head

2шт.

11

A45766

GASKET

WASHER - injection, Serial Range: tube-nozzle

17шт.

12

A45769

GASKET,0.5mm Thk

- thermostat housing cover

1шт.

13

A45770

GASKET

- thermostat

2шт.

14

A46368

MANIFOLD GASKET

- exhaust manifold, large

2шт.

15

A46369

MANIFOLD GASKET

- exhaust manifold, small

2шт.

16

A46360

GASKET

- intake manifold

2шт.

17

A46362

GASKET

- intake tube

1шт.

18

A45788

SEALING WASHER

WASHER - tube

1шт.

19

A45833

RING

O-RING - cylinder sleeve, upper and center

12шт.

20

A45834

RING

O-RING - cylinder sleeve, lower

6шт.

21

A45844

GASKET

- oil drain tube

1шт.

22

A45850

GASKET

WASHER - gasket, cylinder block plug

3шт.

23

A45852

GASKET

- draincock

1шт.

24

A45856

GASKET

- side cover, cylinder block

2шт.

Выбрано товаров: 25
