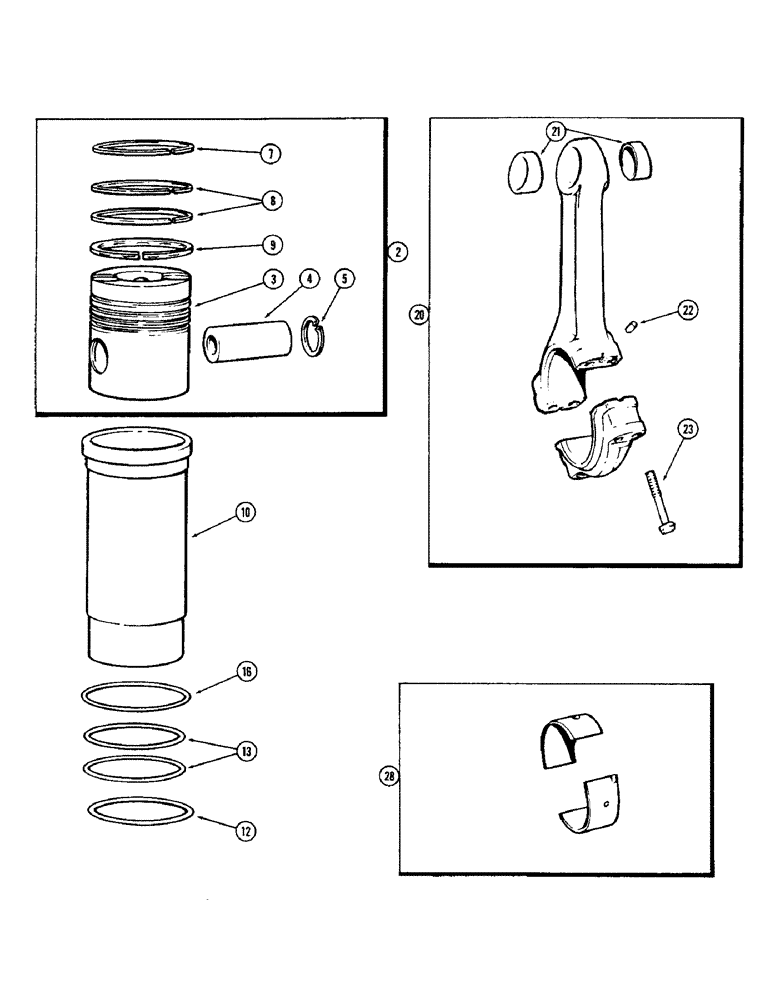

Запчасти Case IH 2870 (050) - PISTONS, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
2
A46320
PISTON
ASSEMBLY - (Replaces A46173), Includes: Ref. 3 - 9
6шт.
3
NSS
NOT SOLD SEPARAT
PISTON
1шт.
4
NSS
NOT SOLD SEPARAT
PIN - piston
1шт.
5
A46174
SNAP RING,M50, Int
RING - snap, piston pin retaining
2шт.
A46240
RING
KIT, Includes: Ref. 7 - 9
1шт.
7
NSS
NOT SOLD SEPARAT
RING - compression (1st groove)
1шт.
8
NSS
NOT SOLD SEPARAT
RING - compression (2nd and 3rd groove)
2шт.
9
NSS
NOT SOLD SEPARAT
RING - oil control (4th groove)
1шт.
10
A45832
SLEEVE
- piston (Cylinder liner)
6шт.
A46371
SEAL
ING KIT - sleeve, Includes: Ref. 12 and 13
6шт.
12
A45834
RING
- sealing, lower (In block)
1шт.
Ref. 12 & 13 sub to p/n A48611
1шт.
13
A45833
RING
- sealing, upper and center (In block)
2шт.
Ref. 12 & 13 sub to p/n A48611
1шт.
16
A45835
SHIM,0.20mm Thk
Sleeve 0.20mm Thk
1шт.
16
A45836
SHIM,0.25mm Thk
Sleeve 0.25mm Thk
1шт.
16
A45837
SHIM,.030mm Thk
Sleeve .030mm Thk
1шт.
16
A45838
SHIM,0.50mm Thk
Sleeve 0.50mm Thk
1шт.
16
CASA45839
SHIM
- sleeve (0.75 mm)
1шт.
20
A45894
ROD
ASSEMBLY - connecting, Includes: Ref. 21 - 23
6шт.
21
A45896
BEARING
BUSHING - piston pin, connecting rod
2шт.
22
A45898
PIN
DOWEL - cap locating, connecting rod
1шт.
23
A45897
BOLT
- connecting rod cap
2шт.
28
A46327
LINING
LINER KIT - connecting rod bearing (Standard) (Set of 2)
6шт.
28
A46328
BEARING
LINER KIT - connecting rod bearing (-0.25 mm) (Set of 2)
6шт.
28
A46329
BEARING
LINER KIT - connecting rod bearing (-0.50 mm) (Set of 2)
6шт.
28
A46330
BEARING LINER
LINER KIT - connecting rod bearing (-0.75 mm) (Set of 2)
6шт.
28
A46331
BEARING
LINER KIT - connecting rod bearing (-1.0 mm) (Set of 2)
6шт.
28
A46332
LINING
LINER KIT - connecting rod bearing (-1.25 mm) (Set of 2)
6шт.
28
A46333
LINING
LINER KIT - connecting rod bearing (-1.50 mm) (Set of 2)
6шт.
28
A46334
LINING
LINER KIT - connecting rod bearing (-1.75 mm) (Set of 2)
6шт.
Выбрано товаров: 31
