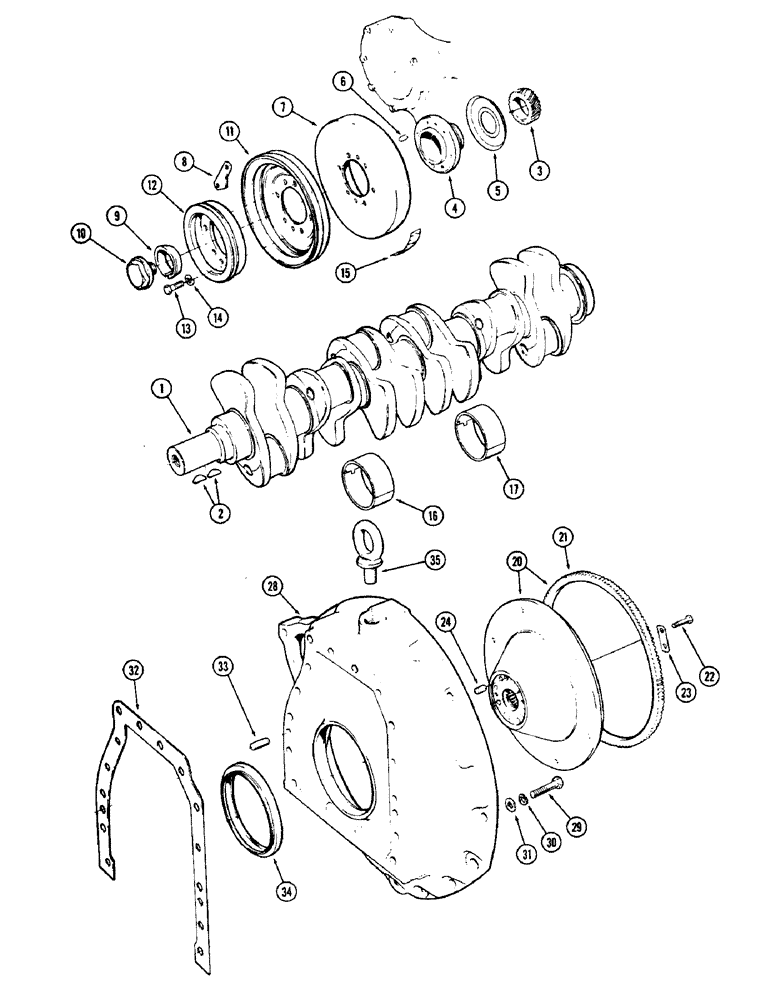

Запчасти Case IH 2870 (048) - CRANKSHAFT, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A45907

CRANKSHAFT

- (Also order 3-A45908 dowels, see Ref. 24)

1шт.

2

A46182

KEY

- gear and, Serial Range: hub-crankshaft

2шт.

3

A45909

GEAR

- crankshaft

1шт.

4

A46407

HUB

- vibration damper (Used with A46408 deflector) (1st use Scania Engine serial no. 5202348 or Brazil engine serial no. 3001764)

1шт.

4

A45915

NO LONGER SERVICED

HUB - vibration damper (Not used with A46408 deflector) (Used prior to Scania Engine serial no. 5202348 or Brazil engine serial no. 3001764) (Order 1-A46407 hub and 1-A46408 deflector)

1шт.

5

A46408

DEFLECTOR

- oil (Used with A46407 hub) (1st used Scania engine serial no. 5202348 or Brazil engine serial no. 3001764)

1шт.

6

A45921

PIN

- guide, Serial Range: damper-hub

2шт.

7

A45914

DAMPER

- vibration

1шт.

8

A46244

INDICATOR

- timing mark

1шт.

9

A45916

CONE

- expanding, damper hub

1шт.

10

A45917

SCREW

BOLT - expanding, Serial Range: cone-hub

1шт.

11

A45918

PULLEY

- two groove

1шт.

12

A45893

PULLEY

- small

1шт.

13

813-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- pulley, 12 x 1.75 x 35 mm, hex head (Replaces 513-806)

6шт.

14

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 27 x 2.38 mm)

6шт.

15

A46398

TAPE

- timing indicator

1шт.

16

A46441

LINING

LINER - main bearing, standard (Replaces A45820)

12шт.

16

A45822

PIPE FITTING

LINER - main bearing, -101.37 mm

12шт.

16

A46442

LINING

LINER - main bearing, -101.12 mm (Replaces A45823)

12шт.

16

A46443

BEARING LINER

LINER - main bearing, -100.87 mm (Replaces A45824)

12шт.

16

A45825

BEARING

LINER - main bearing, -100.62 mm

12шт.

16

A45826

BEARING

LINER - main bearing, -100.37 mm

12шт.

16

A46444

LINING

LINER - main bearing, -100.12 mm (Replaces A45827)

12шт.

17

A46456

LINING

LINER - center main bearing, standard (Replaces A45821)

2шт.

17

A46187

LINING

LINER - center main bearing, -101.37 mm

2шт.

17

A46188

LINING

LINER - center main bearing, -101.12 mm

2шт.

17

A46189

LINING

LINER - center main bearing, -100.87 mm

2шт.

17

A46190

BEARING

LINER - center main bearing, -100.62 mm

2шт.

17

A46191

BEARING

LINER - center main bearing, -100.37 mm

2шт.

17

A46192

LINING

LINER - center main bearing, -100.12 mm

2шт.

20

A46321

FLYWHEEL

ASSEMBLY - (Replaces A45910), housing, Includes: Ref. 21

1шт.

21

A46340

GEAR

- ring, starter (Replaces A45912), flywheel & housing

1шт.

22

513-908

BOLT

- 14 x 2 x 50 mm, hex head, flywheel & housing

8шт.

23

A45919

LOCK WASHER

PLATE - lock (Used on some early model engines), flywheel & housing

4шт.

24

NLS

NO LONGER SERVICED

DOWEL - flywheel to crankshaft, housing

3шт.

28

A45877

HOUSING

- flywheel and rear oil seal, housing

1шт.

29

513-808

BOLT

- 12 x 1.75 x 45 mm, hex head, flywheel & housing

14шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Flywheel & housing 1/2"

14шт.

31

A46172

WASHER

- cover bolts, flywheel & housing

14шт.

32

A46438

GASKET

- housing to block (Replaces A45878), housing

1шт.

33

A45971

PIN

- locating, housing to block, flywheel

2шт.

34

A45879

SEAL

- oil, crankshaft, rear, flywheel & housing

1шт.

35

A46171

BOLT

- lifting eye, flywheel & housing

1шт.
