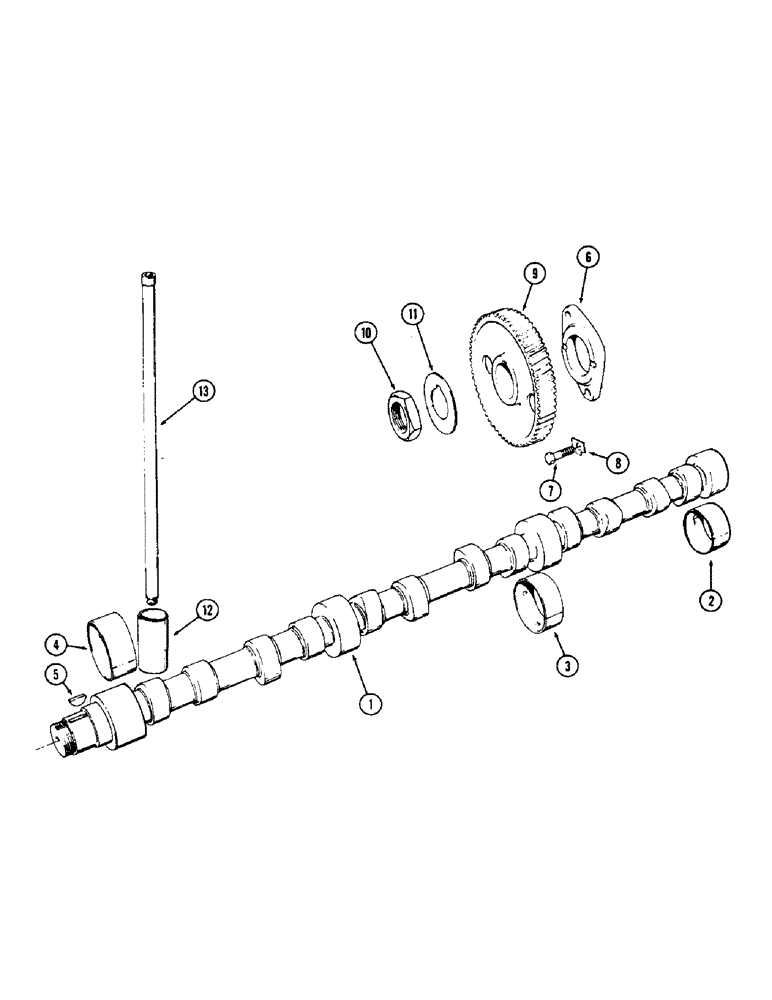

Запчасти Case IH 2870 (044) - CAMSHAFT, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A45922

CAMSHAFT

1шт.

A46239

SET

BUSHING KIT - camshaft, Includes: Ref. 2 - 4

1шт.

2

A45923

BEARING LINER

BUSHING - rear

1шт.

3

A45924

BEARING LINER

BUSHING - intermediate

2шт.

4

A45925

BEARING LINER

BUSHING - front

1шт.

5

A46183

KEY

- camshaft gear

1шт.

6

A45926

FLANGE

- camshaft

1шт.

7

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 mm, hex head (Replaces 513-706)

2шт.

8

A45927

LOCK WASHER

- lock, flange bolt

2шт.

9

A45928

GEAR

- camshaft

1шт.

10

A45929

NUT

- camshaft gear

1шт.

11

A45930

LOCK WASHER

- lock, camshaft nut

1шт.

12

A45936

TAPPET

- valve

12шт.

13

A46357

ROD

- push, valve (Replaces A45937)

12шт.
