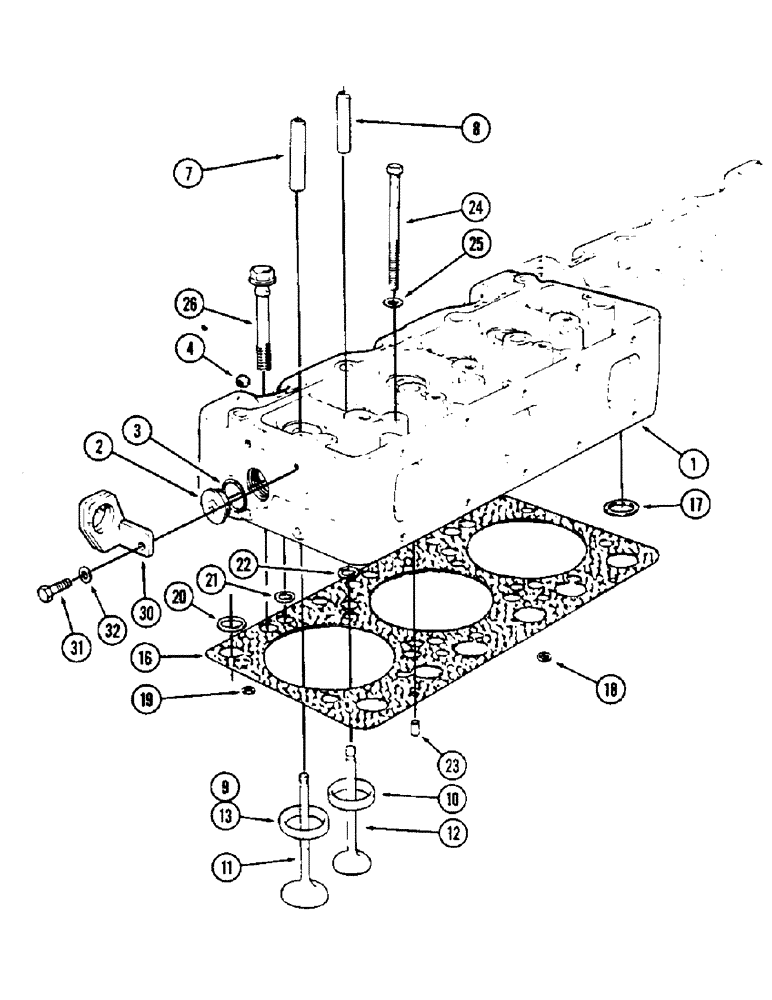

Запчасти Case IH 2870 (038) - CYLINDER HEAD, 674 CUBIC INCH DIESEL ENGINE, WITH 20 DEGREE INTAKE VALVES AND SEATS (02) - ENGINE

1

A46415

CYLINDER HEAD

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 10

2шт.

2

A45701

PLUG

- front and rear

2шт.

3

A45719

O-RING,39.3 mm ID x 1.6 mm

- plug

2шт.

4

A45720

PLUG

- side

3шт.

A46425

PLUG

- (Not illustrated)

2шт.

A46424

RING

O-RING - plug (Not illustrated)

2шт.

7

A46433

GUIDE

- intake valve

3шт.

8

A46409

GUIDE

- exhaust valve

3шт.

9

A46417

SEAT

- intake valve (Standard) (See Ref. 13)

3шт.

10

A45705

VALVE SEAT

SEAT - exhaust valve

3шт.

11

A46416

VALVE

- intake

6шт.

12

A46380

VALVE

- exhaust

6шт.

13

A46418

SEAT

- intake valve (Oversize)

6шт.

16

A45744

GASKET

- cylinder, Serial Range: head-block

2шт.

17

A45745

RING

- seal, head gasket (38.7 mm diameter)

12шт.

18

A45746

RING

- seal, head gasket (15.7 mm diameter)

4шт.

19

A46345

RING

- seal, head gasket (12.7 mm diameter)

2шт.

20

A46291

RING

- seal, head gasket (32.7 mm diameter)

2шт.

21

A46290

RING

- seal, head gasket (19.7 mm diameter)

18шт.

22

A45747

RING

- seal, head gasket (23.7 mm diameter)

4шт.

23

A45970

PIN

DOWEL - head locking

2шт.

24

A45751

STEP BOLT

BOLT - cylinder head to block, 16 x 187 mm

22шт.

25

A45763

WASHER

- cylinder head bolts

22шт.

26

A45752

STEP BOLT

BOLT - cylinder head to block, 18 x 110 mm

6шт.

30

A45740

BRACKET

- lift, cylinder head

1шт.

31

513-705

BOLT

- bracket, 10 x 1.5 x 25 mm, hex head

2шт.

32

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.34 x 1.59 mm)

2шт.
