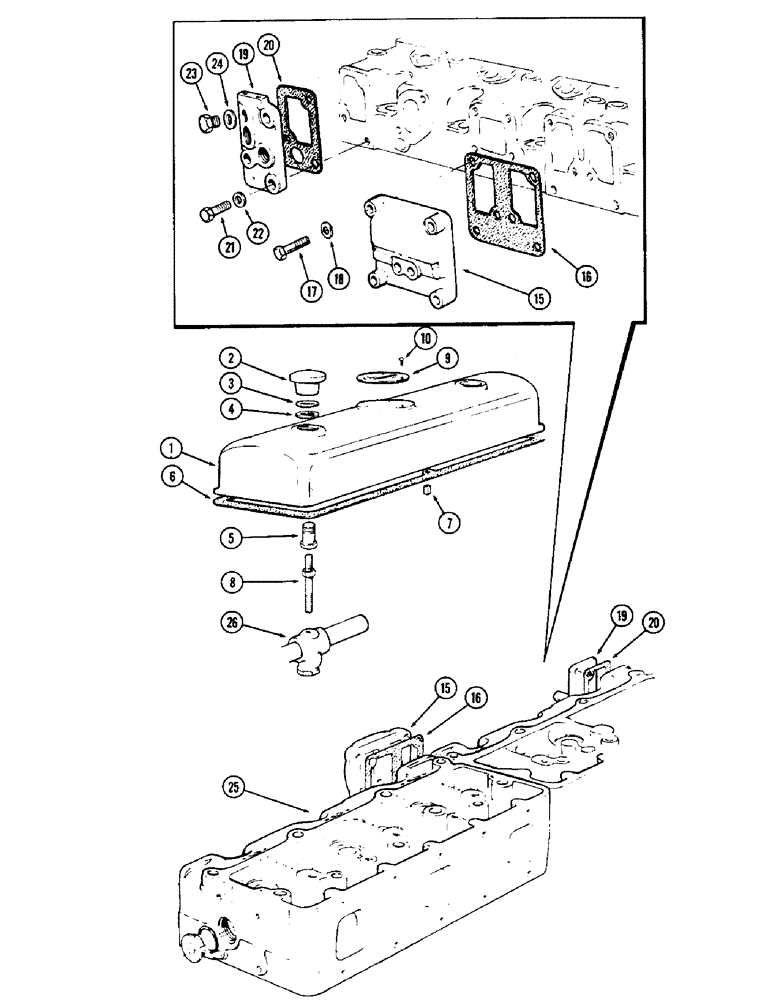

Запчасти Case IH 2870 (036) - CYLINDER HEAD COVERS, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46373

COVER

ASSEMBLY - valve head (Replaces A45733), Includes: Ref. 2 - 5

2шт.

2

A45735

NUT

- grip, cover fastener

2шт.

3

A46364

WASHER

- fastener nut (Replaces A45736)

2шт.

4

A46365

GASKET

- rubber, nut to cover (Replaces A45737)

2шт.

5

A45738

ADAPTER

- cover nut

2шт.

6

A45742

GASKET

-, Serial Range: cover-head

2шт.

7

A45743

PIN

- tension, Serial Range: cover-head

8шт.

8

A45728

STUD

- valve cover and, Serial Range: bracket-head

4шт.

9

321-4195

DECAL

- valve clearance

1шт.

10

A45761

SCREW - cover

3шт.

15

A45754

FLANGE

- water connection, cylinder head

1шт.

16

A46383

MANIFOLD GASKET

- flange to head (Replaces A45755)

1шт.

17

513-809

BOLT

- 12 x 1.75 x 50 mm, hex head

2шт.

18

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 27 x 2.38 mm)

2шт.

19

A45756

COVER

- cylinder head, rear right hand side

1шт.

20

A46170

GASKET

- rear cover

1шт.

21

813-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- 12 x 1.75 x 35 mm, hex head (Replaces 513-806)

3шт.

22

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 27 x 2.38 mm)

3шт.

23

A45764

PLUG

- cover

1шт.

23

A45765

PLUG

- cover

2шт.

24

A45766

GASKET

WASHER - plug (Use with A45764 plug)

1шт.

25

REF

INSTRUCTION

HEAD ASSEMBLY - cylinder (See figure 38 and 40)

2шт.

26

REF

INSTRUCTION

SHAFT - rocker arm (See figure 42)

2шт.
