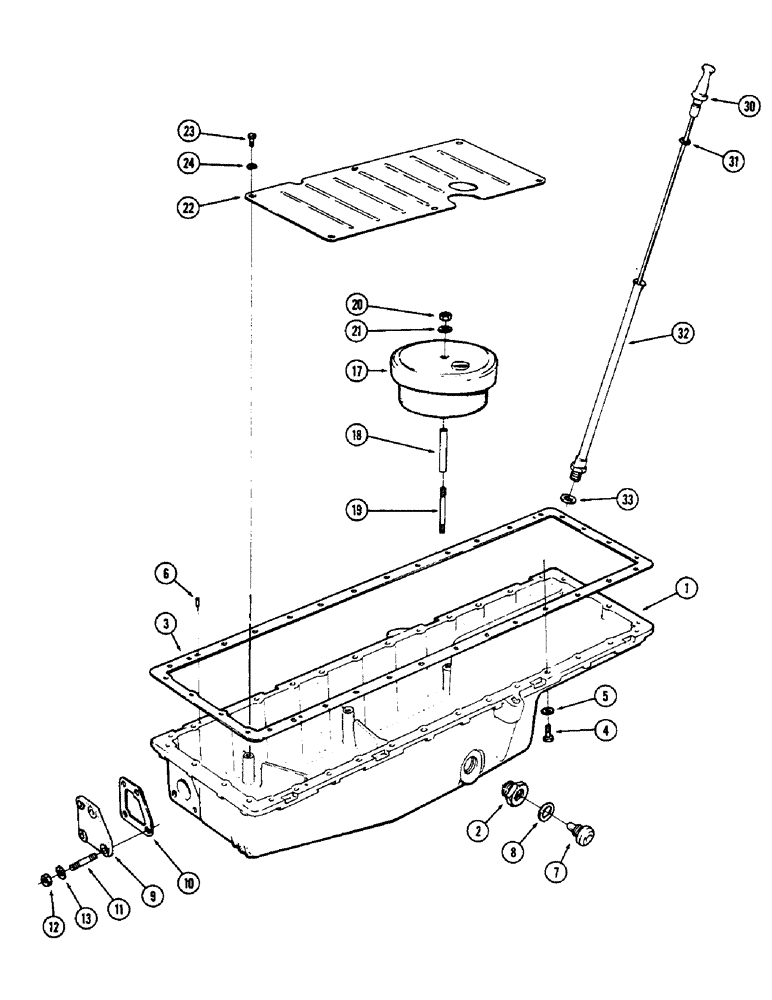

Запчасти Case IH 2870 (034) - OIL PAN AND DIPSTICK, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46319

PAN

OIL PAN ASSEMBLY - (Replaces A45883), Includes: Ref. 2

1шт.

2

A45884

BUSHING

- reducer, drain plug

1шт.

3

A45860

GASKET

- oil pan to block (See figure 56)

1шт.

4

813-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- 10 x 1.5 x 40 mm, hex head (Replaces 523-708)

34шт.

5

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

34шт.

6

A45789

PIN

- guide, oil, Serial Range: pan-block

5шт.

7

A46202

PLUG

- drain, oil pan

1шт.

8

A45885

GASKET

- drain plug

1шт.

9

A45886

COVER

- front end

1шт.

10

A45887

GASKET

- cover

1шт.

11

A45888

STUD

- front end cover

4шт.

12

100016

NUT,M10 x 1.5, Cl 8

4шт.

13

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

4шт.

17

A46203

SCREEN

- oil

1шт.

18

A46205

BUSHING

SPACER - stud, oil screen

1шт.

19

A46204

STUD

- oil screen mounting

1шт.

20

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

21

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.53 x 22.23 x 1.98 mm)

1шт.

22

A46206

PLATE

- baffle, oil pan

1шт.

23

513-604

BOLT

- 8 x 1.5 x 16 mm, hex head

6шт.

24

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.53 x 22.23 x 1.98 mm)

6шт.

30

A46165

DIPSTICK

- oil level

1шт.

31

A46167

O-RING,9 mm ID x 15 mm OD

- dipstick seal

1шт.

32

A46166

TUBE

- dipstick guide

1шт.

33

A46313

GASKET

- dipstick tube to pan (Replaces A46247)

1шт.
