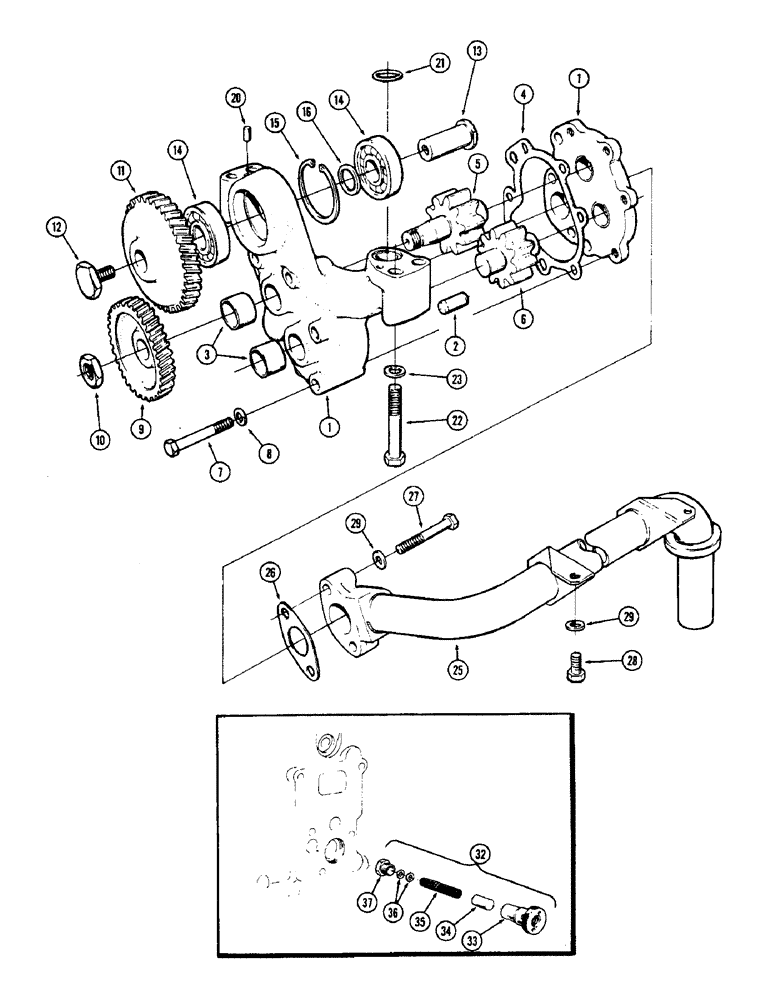

Запчасти Case IH 2870 (032) - OIL PUMP, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A45951

PUMP

ASSEMBLY - engine oil, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump gear (With matched cover)

1шт.

2

A45953

PIN

DOWEL -, Serial Range: cover-body

2шт.

3

A45954

BUSHING

- gear (In cover and housing)

4шт.

4

A45964

GASKET

- cover, 0.05 mm

1шт.

4

A45965

GASKET

- cover, 0.07 mm

1шт.

4

A45966

GASKET

- cover, 0.10 mm

1шт.

5

A45960

GEAR - drive

1шт.

6

A45963

GEAR - driven

1шт.

7

513-616

BOLT

- 8 x 1.25 x 75 mm, hex head

4шт.

8

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.53 x 22.23 x 1.98 mm)

4шт.

9

A45961

GEAR

- pump drive

1шт.

10

A45962

NUT

- drive gear

1шт.

11

A45958

GEAR

- reverse idler

1шт.

12

A45959

BOLT

-, Serial Range: gear-shaft

1шт.

13

A45957

SHAFT

- reverse gear

1шт.

14

A45956

BALL BEARING

BEARING - reverse gear shaft

2шт.

15

A45972

RING

- snap, bearing

1шт.

16

A45955

BUSHING

SPACER - bearing

1шт.

20

A45969

PIN

DOWEL -, Serial Range: pump-engine

2шт.

21

A45913

O-RING,22.1 mm ID x 1.6 mm

- pump oil port

1шт.

22

513-713

BOLT

- 10 x 1.5 x 65 mm, hex head

4шт.

23

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

4шт.

25

A45967

TUBE

- suction, oil, Serial Range: pump-pan

1шт.

26

A45968

GASKET

- suction, Serial Range: tube-pump

1шт.

27

513-615

BOLT

- 8 x 1.25 x 70 mm, hex head, Serial Range: (Tube-pump)

2шт.

28

513-604

BOLT

- 8 x 1.25 x 16 mm, hex head (Tube bracket)

1шт.

29

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (9.53 x 22.23 x 1.98 mm)

3шт.

32

A46180

VALVE

ASSMEBLY - oil pressure, Includes: Ref. 33 - 37

1шт.

33

NSS

NOT SOLD SEPARAT

SEAT - valve, oil pressure

1шт.

34

NSS

NOT SOLD SEPARAT

VALVE, oil pressure

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING, oil pressure valve

1шт.

36

A46181

SHIM

- valve, oil pressure

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG, oil pressure valve

1шт.
