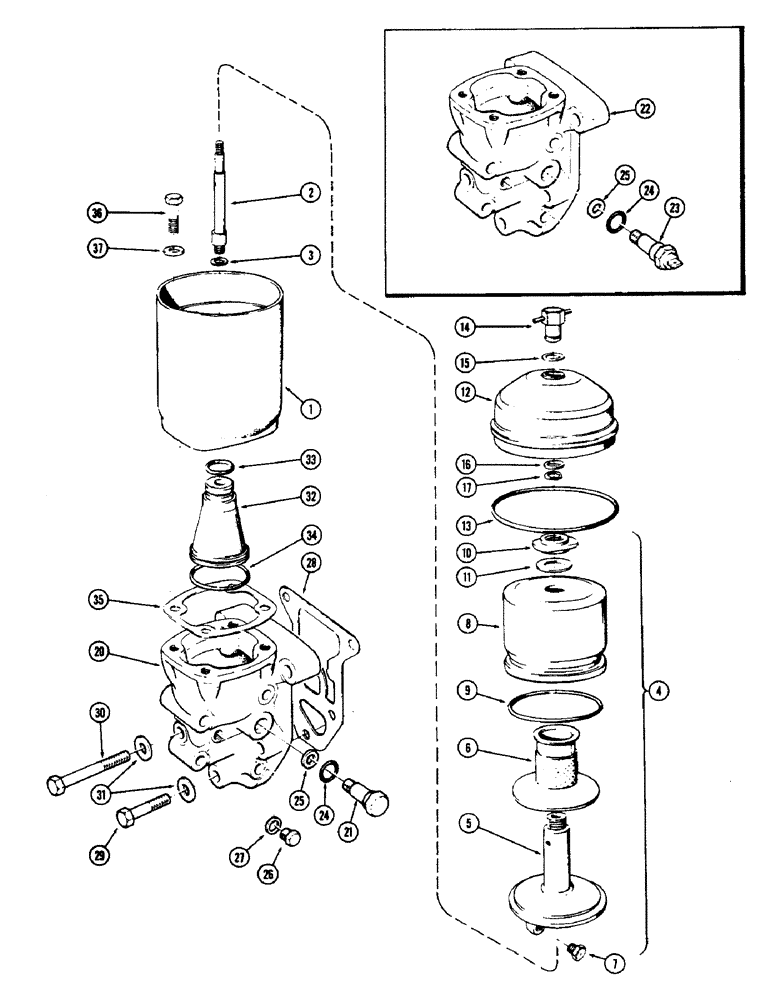

Запчасти Case IH 2870 (030) - OIL CLEANER, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A45973

CLEANER

ASSEMBLY - engine oil, Includes: Ref. 1 - 17

1шт.

1

A45975

HOUSING

- oil cleaner

1шт.

2

A45978

SPINDLE

- rotor

1шт.

3

A45993

WASHER

- spindle

1шт.

4

A45979

ROTOR

ASSEMBLY - cleaner, Includes: Ref. 5 - 11

1шт.

5

A45980

ROTOR

- oil cleaner

1шт.

6

A45981

CLEANER

STRAINER - oil

1шт.

7

A45982

NOZZLE CAP

NOZZLE

2шт.

8

A45983

COVER

- stainer

1шт.

9

A45991

O-RING,4.359" ID x 4.637" OD

- cover to rotor

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

10

A45984

NUT

- cover

1шт.

11

A45994

WASHER

- cover nut

1шт.

12

A45985

COVER

- body

1шт.

13

A45992

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

- cover

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

14

A45986

NUT

ASSEMBLY - lock, cover, Includes: Ref. 15 - 17

1шт.

15

A45995

GASKET

- cover nut

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

16

A45996

WASHER

- cover nut

1шт.

17

A45987

RING

- snap, cover nut

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

20

A46396

BRACKET

- oil cleaner (1st used engine serial no. 5204755)

1шт.

21

A46411

PLUG

- (Used with A46396 bracket)

1шт.

22

A45974

BRACKET

- oil cleaner (Used prior to engine serial no. 5204755)

1шт.

23

A45989

SWITCH

- oil pressure sender (Used with A45974 bracket) (See figure 70 for latest switch)

1шт.

24

A46177

O-RING,13.3 mm ID x 18.1 mm OD

- switch or plug

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

25

A45997

GASKET

- switch or plug

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

26

A45990

PLUG

- bracket

1шт.

27

A45731

GASKET

- plug

1шт.

28

A45988

GASKET

-, Serial Range: bracket-block

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

29

513-709

BOLT

- bracket to block, 10 x 1.5 x 45 mm, hex head

4шт.

30

513-719

BOLT

- bracket to block, 10 x 1.5 x 100 mm, hex head

1шт.

31

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

5шт.

32

A45977

FILTER, ELEMENT

CYCLONE - oil cleaner

1шт.

33

A46176

RING,26.2 mm ID x 32.2 mm OD

O-RING - cyclone (Small)

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

34

A45920

O-RING

- cyclone (Large)

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

35

A45976

GASKET

- cleaner, Serial Range: housing-bracket

1шт.

Part of Gasket Oil Cleaner Kit P/N A46294

1шт.

36

513-707

BOLT

- housing to bracket, 10 x 1.5 x 35 mm, hex head

4шт.

37

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 15.9 mm)

4шт.

A46294

KIT

GASKET KIT - oil cleaner Includes: Ref. 9, 13, 15, 17, 24, 25, 28 and 33-35, plus, A46154 oil cooler gasket see Figure 028 Ref. 10, see Figure 052 for general overhaul kit

1шт.
