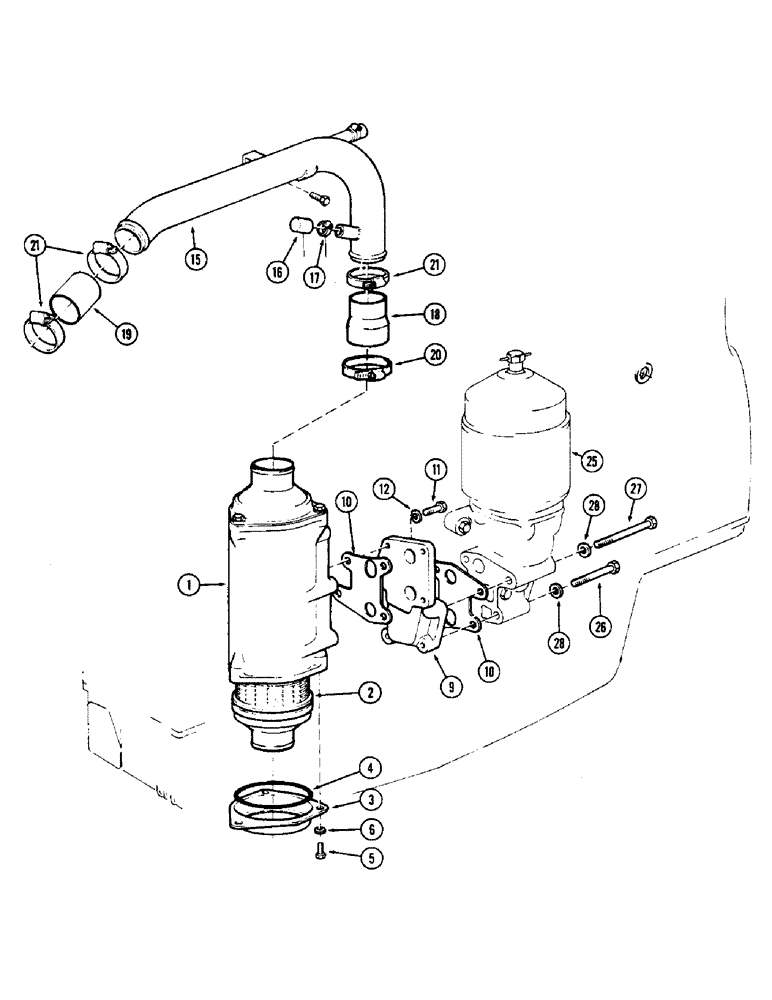

Запчасти Case IH 2870 (028) - OIL COOLER, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46150

COOLER

ASSEMBLY - engine oil, Includes: Ref. 1 - 6

1шт.

1

A46151

HOUSING

BODY - cooler assembly

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT - (Cleanable type)

1шт.

3

A46196

COVER

- cooler element

1шт.

4

A46195

O-RING,3.859" ID x 4.137" OD

- cover seal

2шт.

5

513-404

SCREW

BOLT - 6 x 1 x 16 mm, hex head

6шт.

6

195-515

WASHER,#12

- 1/4 x 1/2 x 3/64" (6.35 x 12.7 x 1.19 mm)

6шт.

9

A46153

BRACKET

ASSEMBLY - mounting, oil cooler and cleaner

1шт.

A46197

BUSHING

- threaded (Not illustrated)

4шт.

10

A46154

GASKET

- cooler and, Serial Range: cleaner-bracket

2шт.

11

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 mm, hex head (Cooler to bracket)

4шт.

12

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

4шт.

15

A46378

TUBE

- cooler to water pump (Replaces A46198)

1шт.

16

A46201

PLUG

- tube opening

1шт.

17

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP - plug, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

1шт.

18

A46199

HOSE

-, Serial Range: tube-cooler

1шт.

19

A46200

HOSE

- tube to water pump

1шт.

20

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose to cooler, 2-5/16" to 3-1/4" (58.74 x 82.55 mm)

1шт.

21

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.34 to 57.15 mm) #28, 1.31/2.25 Type F Worm

3шт.

25

REF

INSTRUCTION

CLEANER ASSEMBLY - engine oil (See figure 30)

1шт.

26

513-715

BOLT

- 10 x 1.5 x 75 mm, hex head

1шт.

27

513-719

BOLT

- 10 x 1.5 x 100 mm, hex head

3шт.

28

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

4шт.
