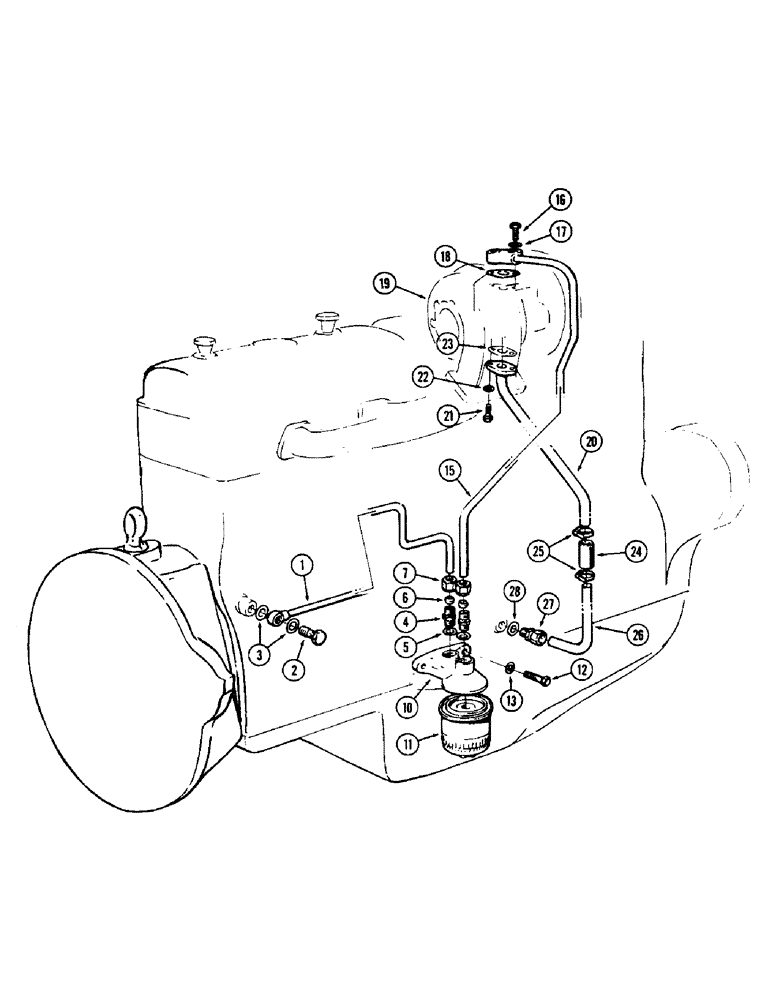

Запчасти Case IH 2870 (024) - TURBOCHARGER LUBRICATION SYSTEM, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A45998

TUBE

- block to filter, lube oil

1шт.

2

A45999

BANJO BOLT

- hollow, Serial Range: tube-block

1шт.

3

A46323

WASHER

- gasket, tube fitting (Replaces A46247)

2шт.

4

A45734

CONNECTOR, ELEC

CONNECTOR -, Serial Range: tube-filter

2шт.

5

A45850

GASKET

GASKET -, Serial Range: connector-filter

2шт.

6

A45741

SLEEVE

-, Serial Range: connector-tube

2шт.

7

A46249

NUT

-, Serial Range: connector-tube

2шт.

A46157

FILTER

ASSEMBLY - lube oil, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - filter

1шт.

11

A46158

FILTER, ELEMENT

ELEMENT - oil filter (Replaces A46293)

1шт.

12

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 mm, hex head (Replaces 513-706)

2шт.

13

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

2шт.

15

A46159

TUBE

- lube oil, Serial Range: filter-turbocharger

1шт.

16

513-707

BOLT

- 10 x 1.50 x 35 mm, hex head

2шт.

17

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

2шт.

18

A46160

GASKET

-, Serial Range: tube-turbocharger

1шт.

19

A45790

TURBOCHARGER

- See figure 26

1шт.

20

A46161

TUBE

- drain, turbocharger

1шт.

21

513-705

BOLT

- 10 x 1.5 x 25 mm, hex head

2шт.

22

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

2шт.

23

A46162

GASKET

- drain tube

1шт.

24

A46163

HOSE

- tube connecting

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

2шт.

26

A46164

TUBE

- oil, Serial Range: return-block

1шт.

27

A46246

CONNECTOR, ELEC

CONNECTOR -, Serial Range: tube-block

1шт.

28

A46434

GASKET

- connector to block (Replaces A46248)

1шт.
