Запчасти Case IH 2870 (438) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

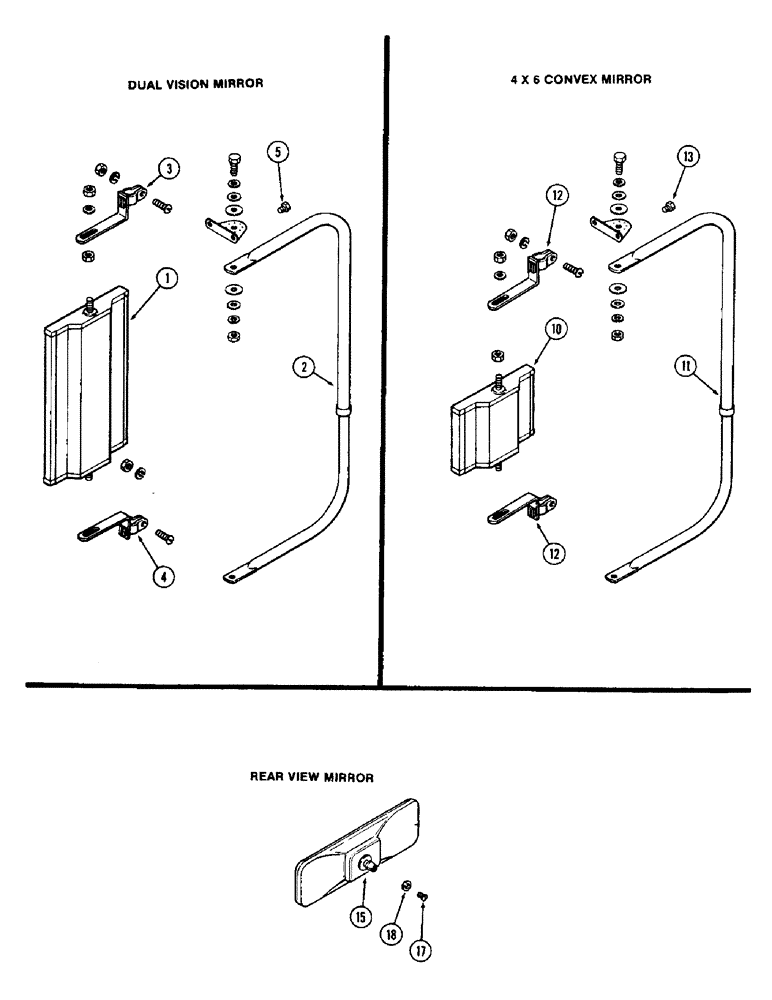

Схема запчастей Case IH 2870 - (438) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS
12
11
17
12
3
10
15
18
4
13
5
1
2

Артикул

Название

Примечание

Количество

A61895

ATTACHMENT

- mirror, Includes: Ref. 1 - 5

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - dual vision (Order A61895), Includes: Ref. 1 - 4

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror swing away

1шт.

3

A42766

ADAPTER

- mirror bracket (Small)

1шт.

4

A42767

ADAPTER

- mirror bracket (Large)

1шт.

5

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

BOLT - 1/4 x 3/8" hex

4шт.

A61897

KIT

ATTACHMENT - mirror, 4 x 6 convex, Includes: Ref. 10 - 13

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - 4 x 6 convex (Order A61897), Includes: Ref. 10 - 12

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror swing away, 4 x 6 convex

1шт.

12

A42767

ADAPTER

- mirror bracket, 4 x 6 convex

2шт.

13

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

BOLT - 1/4 x 3/8" hex, 4 x 6 convex

4шт.

15

F89695

MIRROR

ASSEMBLY - rear view, inside

1шт.

17

163-18

SCREW,Hex, #10 - 24 x 3/8"

- #10 x 3/8" NC flat head, inside rear view

1шт.

18

195-511

WASHER,#10

- 13/64 x 15/32 x 1/16", inside rear view

1шт.

Выбрано товаров: 16
