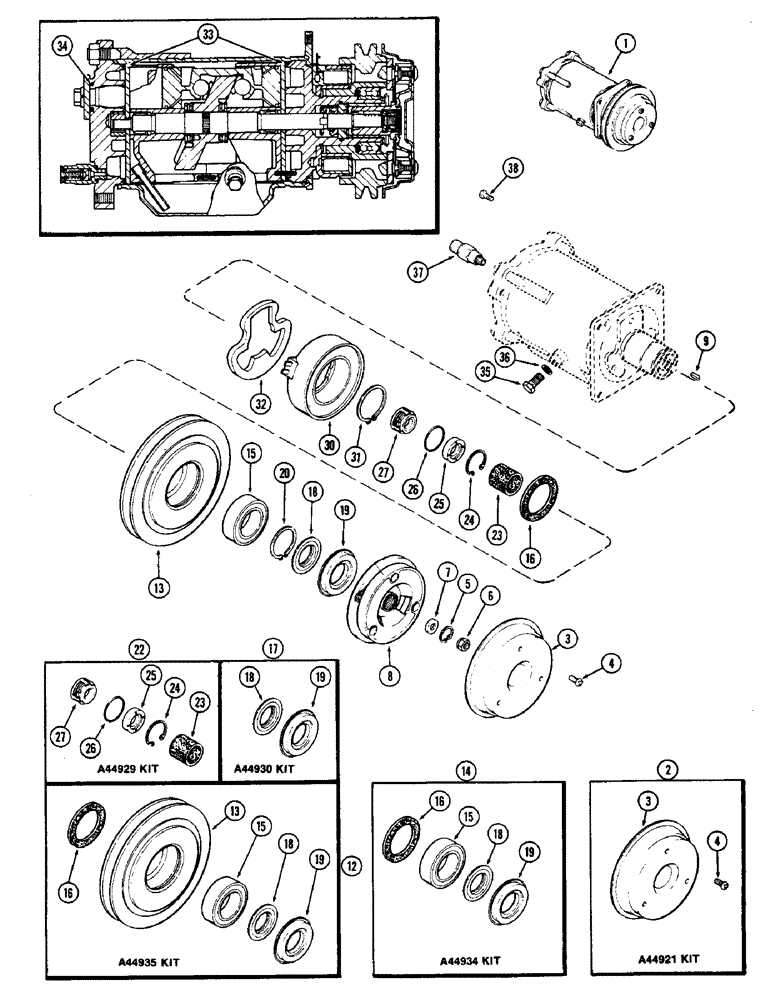

Запчасти Case IH 2870 (436) - AIR COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

A135362

COMPRESSOR

ASSEMBLY - (Frigidaire GMC), Includes: Ref. 2 - 38

1шт.

2

A44921

KIT

COVER KIT - pulley, dust, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - dust, pulley

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - #10-16 x 3/8" Phillips head

3шт.

5

A44925

RING

- snap, hub retaining

1шт.

6

A44924

NUT

- lock, hub shaft

1шт.

7

A44926

BUSHING

SPACER - hub retainer

1шт.

8

A44923

CLUTCH

- drive

1шт.

9

A44927

KEY

- shaft hub

1шт.

12

A44935

PULLEY

KIT, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

14

A44934

KIT

BEARING KIT - pulley, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - pulley

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - rear bearing

1шт.

17

A44930

KIT

BEARING SEAL KIT

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - bearing seal, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - pulley bearing

1шт.

20

A44933

SNAP RING,#156, Ext

Ring, Snap, , brg #156, Ext

1шт.

22

A44929

KIT

SEAL KIT - shaft, Includes: Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - felt seal

1шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - seal (Ceramic)

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - seat

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - shaft

1шт.

30

A44936

COIL

CORE - pulley

1шт.

31

A44937

SNAP RING,#175, Ext

Ring, Snap, , coil hsg to head #175, Ext

1шт.

32

A44938

GASKET

- head

1шт.

33

A44940

O-RING,0.796" ID x 0.139"

- front and rear heads

2шт.

34

A44941

O-RING

- suction and dash ports

2шт.

35

A44939

PLUG

- charging

1шт.

36

A26413

GASKET

- charging screw

1шт.

37

A44942

VALVE

- pressure relief

1шт.

38

113-281

BOLT - 3/8 x 3/4" NF hex

1шт.
