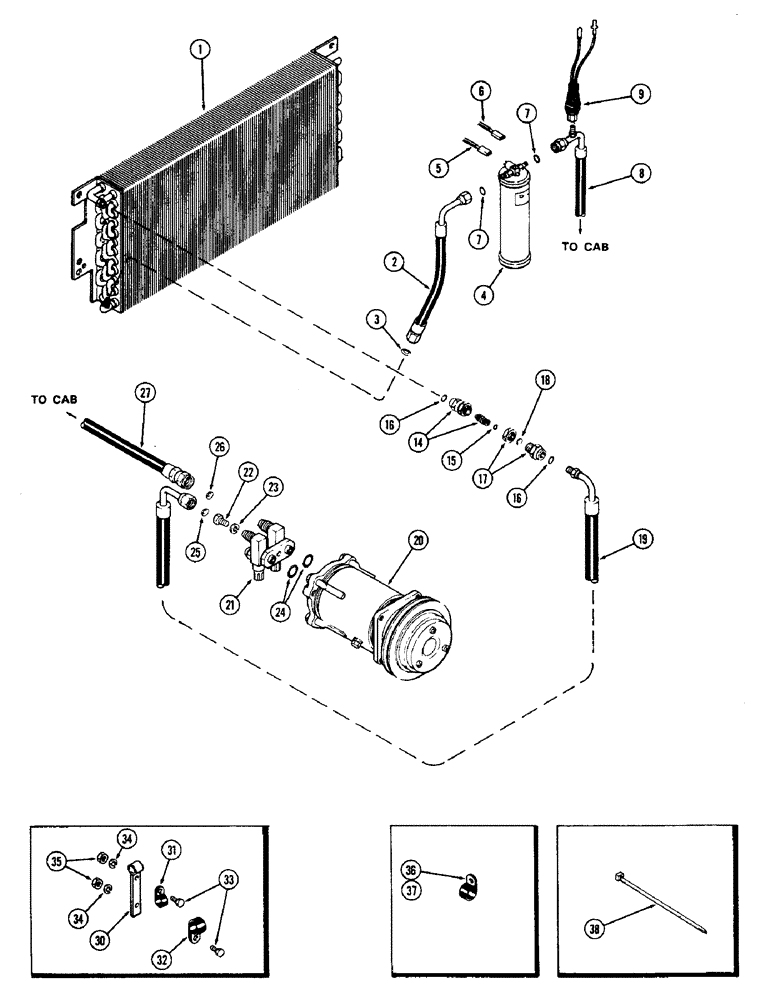

Запчасти Case IH 2870 (434) - AIR CONDITIONER, HOSE AND TUBES (09) - CHASSIS/ATTACHMENTS

1

A141411

CONDENSER

(See figure 432)

1шт.

2

A144167

HOSE

- condensor to receiver dryer

1шт.

3

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

4

A76312

RECEIVER-DRYER

DRYER - (Includes low pressure switch) (See figure 432)

1шт.

5

A138780

HARNESS - wire, low pressure, Serial Range: switch-compressor

1шт.

6

A144611

WIRE - low pressure switch to cab, 24" long (609.6 mm)

1шт.

7

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- 5/16 x 7/16 x 1/16" (7.94 x 11.11 x 1.59 mm)

2шт.

8

A138765

HOSE ASSY.

HOSE - receiver dryer to cab (See figure 408)

1шт.

9

A65779

SWITCH

- high pressure

1шт.

14

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - female, compressor hose to condenser, Includes: Ref. 15

1шт.

15

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- coupling, 1/4 x 3/8 x 1/16" (6.35 x 9.53 x 1.59 mm)

1шт.

16

A61195

O-RING,0.364" ID x 0.5" OD

- hose and coupling, 3/8 x 1/2 x 1/16" (9.53 x 12.7 x 1.59 mm)

2шт.

17

A61196

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male, compressor to condenser hose, Includes: Ref. 18

1шт.

18

A42667

GASKET

- coupling

1шт.

19

A138764

HOSE ASSY.

HOSE - compressor condenser

1шт.

20

A135362

COMPRESSOR

ASSEMBLY - (See figure 436)

1шт.

21

A135413

VALVE

- dual, compressor hoses

1шт.

22

113-281

BOLT - 3/8 x 3/4" NF hex (Part of compressor)

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

A44941

O-RING

- valve parts (Part of compressor) 13/16 x 1-1/16 x 1/8" (20.64 x 27 x 3.18 mm)

2шт.

25

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2" tube 45 degree flare

1шт.

26

222-995

SEALING WASHER,15.88mm ID

- cooper, 5/8" tube 45 degree flare

1шт.

27

A144643

HOSE ASSY.

HOSE - compressor to cab (See figure 408)

1шт.

30

A148781

BRACE - hose clamp mounting at fuel tank

1шт.

31

49855

CLAMP

- 3/4" hose (19.05 mm)

1шт.

32

47856

SCREW

CLAMP - 1" hose (25.4 mm)

1шт.

33

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Clamp Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

2шт.

36

515-22254

CLAMP,1", Insul, 5/16" Bolt

- 1" hose (25.4 mm)

2шт.

37

49855

CLAMP

- 3/4" hose (19.05 mm)

2шт.

38

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - (Nylon) hoses and wires

1шт.
