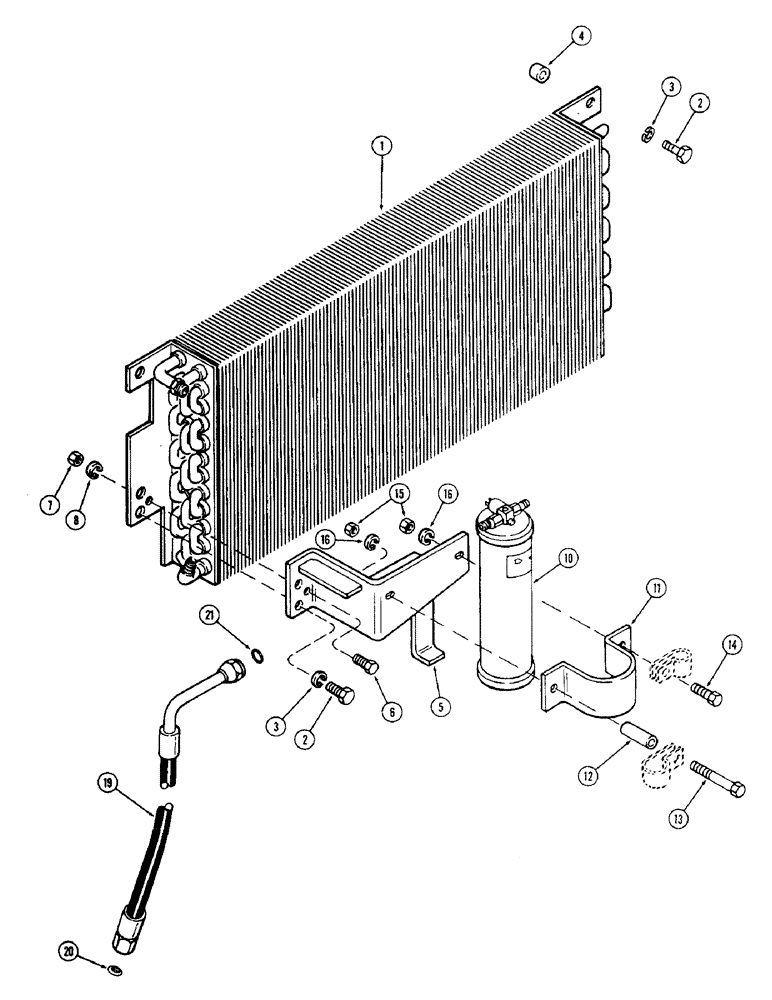

Запчасти Case IH 2870 (432) - AIR CONDITIONER, CONDENSER AND RECEIVER, DRYER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A141411

CONDENSER

- air conditioner (Replaces A144166)

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

4

A37418

SPACER

- condenser mounting, 5/8" OD x 1/2" long (15.88 x 12.7 mm)

5шт.

5

A148973

BRACKET

- receiver dryer mounting

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

A76312

RECEIVER-DRYER

DRYER - receiver

1шт.

11

A76313

CLAMP

- receiver, Serial Range: dryer-bracket

1шт.

12

A135623

BUSHING

SPACER - clamp bolt, 5/8" OD x 1-1/2" long (15.88 x 38.1 mm)

1шт.

13

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

14

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

19

A144167

HOSE

- condenser to receiver dryer

1шт.

20

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

21

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose to dryer, 5/16 x 7/16 x 1/16" (7.94 x 11.11 x 1.59 mm)

1шт.
