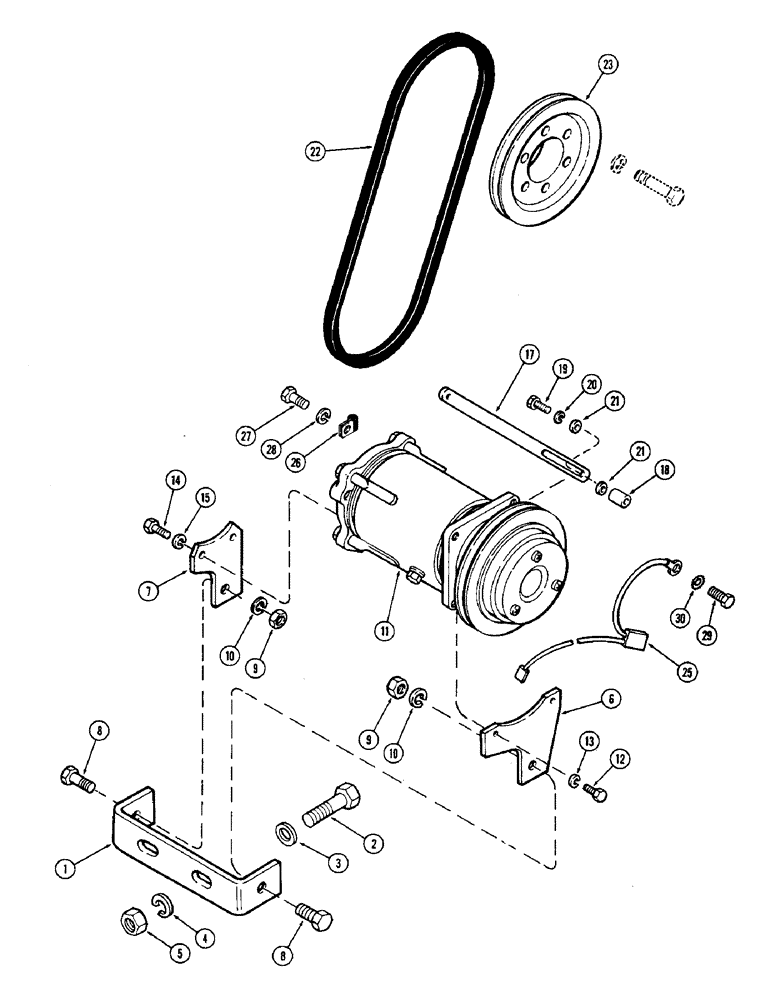

Запчасти Case IH 2870 (430) - AIR CONDITIONER, AIR COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A138770
BRACKET
- support, Serial Range: compressor-frame
1шт.
2
113-626
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
2шт.
3
195-541
WASHER,5/8", SAE
- 5/8 x 1-5/16 x 1/8"
2шт.
4
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
5
129-107
NUT,5/8"-11, G5
2шт.
6
A138762
BRACKET
- front, compressor mounting
1шт.
7
A138763
BRACKET
- rear, compressor mounting
1шт.
8
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
9
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
10
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
11
A135362
COMPRESSOR
ASSEMBLY - air (See figure 436)
1шт.
12
114-102
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
(Compressor to front bracket) Hex, 5/16"-24 x 3/4", G5, Full Thd
2шт.
13
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
14
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
(Compressor to rear bracket) Hex, 3/8"-16 x 1", G5, Full Thd
2шт.
15
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
17
A59098
STRAP
- adjusting, 8-1/2" long (215.9 mm) (Replaces A138759)
1шт.
18
T34922
BUSHING
SPACER - adjusting strap, 13/32" ID x 9/16" OD x 31/32"
1шт.
19
114-106
BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5
- 5/16 x 1-3/4" NF hex (To compressor)
1шт.
20
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
21
195-521
WASHER,5/16", SAE
- 11/32 x 11/16 x 1/16"
2шт.
22
A138760
V-BELT,0.50" W
Compressor Drive 0.50" W
1шт.
23
REF
INSTRUCTION
PULLEY - crankshaft, compressor drive (See figure 48)
1шт.
25
A138780
HARNESS - compressor clutch to pressure switch
1шт.
26
A7922
CLIP
-, Serial Range: wire-compressor
1шт.
28
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
29
114-108
BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd
- 5/16 x 1/2" NF hex (Ground to compressor)
1шт.
30
193-71
LOCK WASHER,Ext-Int Tooth, 5/16"
WASHER, LOCK, Ext-Int Tooth, 5/16"
1шт.
Выбрано товаров: 28
