(428) - CAB, HEADLINER NOISE PADS, USED WITH RADIO

Запчасти Case IH 2870 (428) - CAB, HEADLINER NOISE PADS, USED WITH RADIO (09) - CHASSIS/ATTACHMENTS

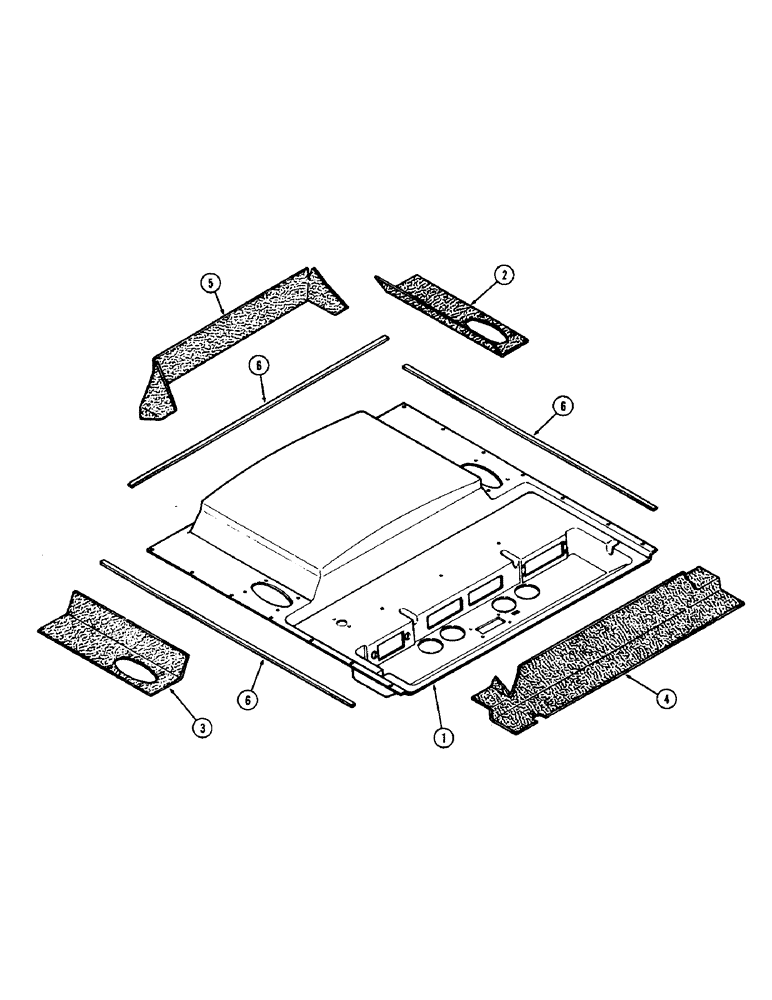

Схема запчастей Case IH 2870 - (428) - CAB, HEADLINER NOISE PADS, USED WITH RADIO (09) - CHASSIS/ATTACHMENTS
5
3
4
4
2
1
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEADLINER - cab (See figures 394 and 396)

1шт.

2

F64245

PAD

- damping, left hand

1шт.

3

F64246

PAD

- damping, right hand

1шт.

4

F64247

PAD

- damping, front

1шт.

5

F64248

PAD

- damping, rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44" (1117.6 mm) (Order F64119)

3шт.

F64119

SEALING STRIP

- seal, 100 foot roll (30.5 M) (Cut to length required)

1шт.
