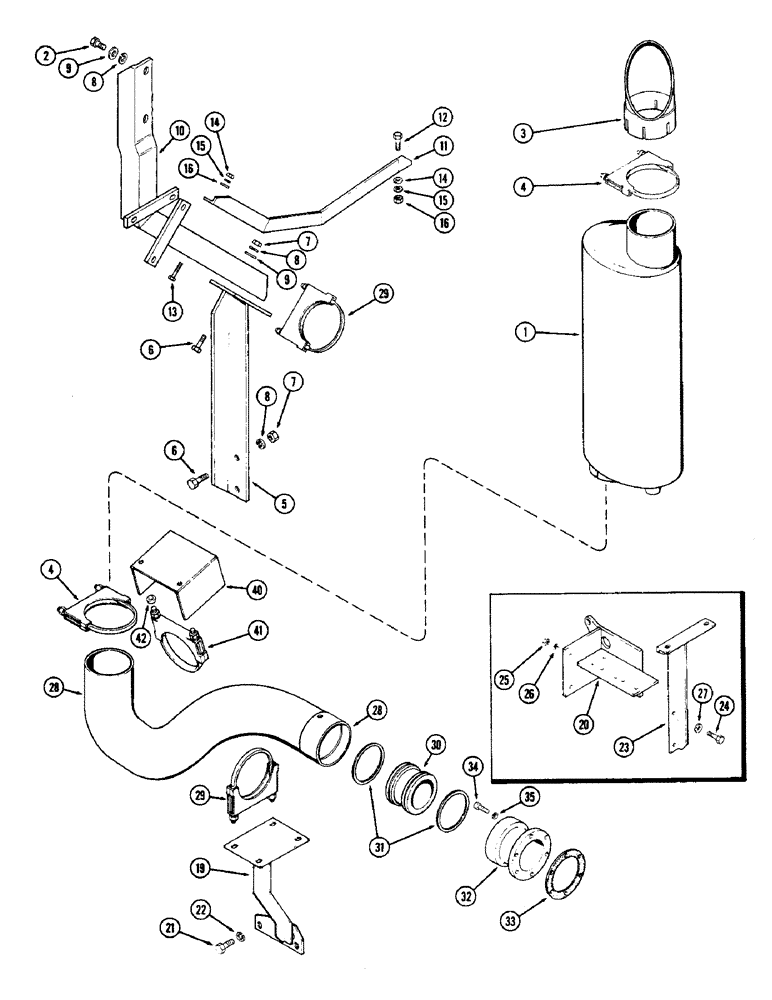

Запчасти Case IH 2870 (022) - EXHAUST TUBE AND MUFFLER, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A142751

MUFFLER,W/ Spark Arrester

- exhaust

1шт.

2

113-472

BOLT

- 1/2 x 1" NC hex

2шт.

3

A148244

DEFLECTOR

STACK - deflector

1шт.

4

G142721

PITMAN

- muffler and stack

2шт.

5

A144712

SPINDLE

SUPPORT - muffler, Serial Range: bracket-frame

1шт.

6

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8" (14.29 x 34.93 x 3.18 mm)

2шт.

10

A148159

SUPPORT

BRACKET - muffler mounting

1шт.

11

A152465

BRACE

- muffler bracket (Replaces A148199 and A150364)

2шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(To fuel tank) Hex, 3/8"-16 x 1 1/2", G5

2шт.

13

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

To muffler bracket Hex, 3/8"-16 x 2", G5

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

4шт.

19

A150783

SUPPORT

- exhaust pipe (Replaces A144704 and A144707) (1st used P.I.N. 8827752)

1шт.

20

A144704

SUPPORT

- exhaust pipe bracket (Order A150783), Serial Range: -8827752

1шт.

21

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- 12 x 1.75 x 30 mm, hex head (To engine block) (Replaces 513-2805)

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

A144707

BRACKET

- exhaust pipe (Order A150783), Serial Range: -8827752

1шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

2шт.

28

A148148

PIPE

- exhaust, Serial Range: turbocharger-muffler

1шт.

29

A142761

-, Serial Range: pipe-bracket

2шт.

30

A140857

JOINT

- expansion, Serial Range: pipe-coupling

1шт.

31

A20732

RING,101.78mm ID x 111.13mm OD x 2.37mm Thk

- compression, expansion joint

2шт.

32

A148911

COUPLING

COUPLING - joint to turbocharger (Replaces A140852)

1шт.

33

A140856

GASKET

- coupling flange

1шт.

34

Z2030

SCREW

BOLT -, Serial Range: coupling-turbocharger

6шт.

35

192-407

LOCK WASHER,7/16"

7/16"

6шт.

40

A152264

GUARD

SHIELD - exhaust heat

1шт.

41

A184592

CLAMP

- shield

1шт.

42

A140435

BUSHING

SPACER -, Serial Range: clamp-shield

2шт.
