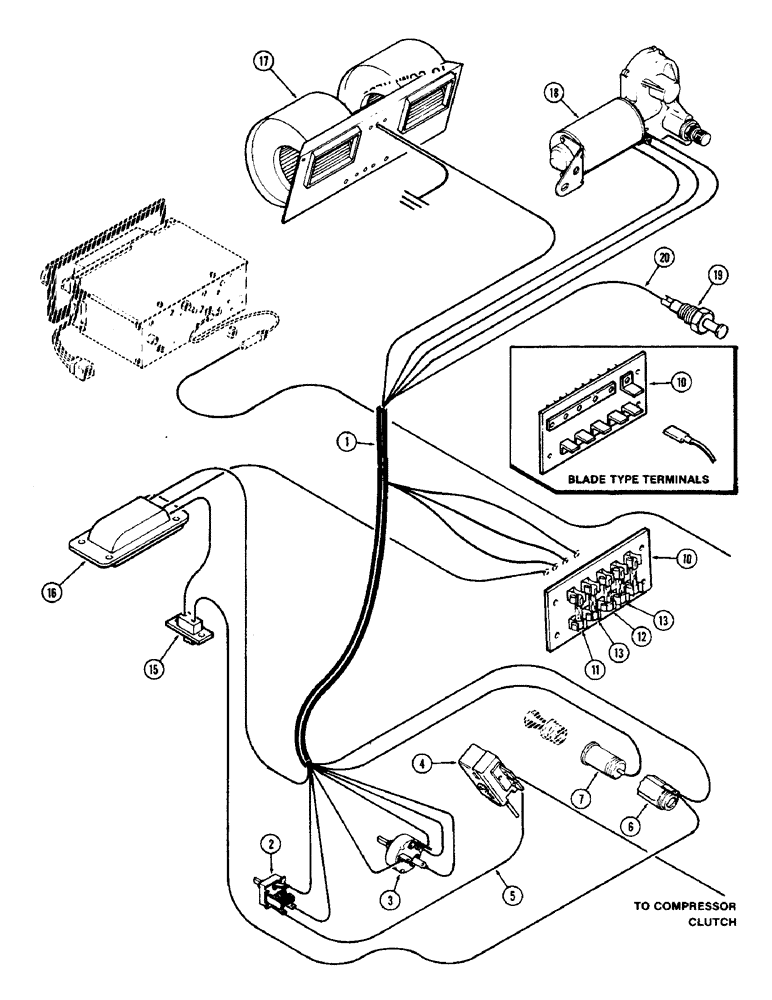

Запчасти Case IH 2870 (418) - CAB, MAIN WIRING HARNESS, USED PRIOR TO CAB SERIAL NUMBER 7882601 (09) - CHASSIS/ATTACHMENTS

1

F63437

HARNESS ASSEMBLY - main wiring, cab

1шт.

2

REF

INSTRUCTION

SWITCH - lower motor (See figure 410)

1шт.

3

REF

INSTRUCTION

SWITCH - wiper motor (See figure 410)

1шт.

4

REF

INSTRUCTION

SWITCH - cab temperature (See figure 410)

1шт.

5

A42624

ELECTRICAL WIRE

WIRE - temperature switch to blower switch, 6" black (152.4 mm)

1шт.

6

REF

INSTRUCTION

SHELL - light clamp (See figure 410)

1шт.

7

REF

INSTRUCTION

SOCKET - lighter (See figure 410)

1шт.

10

REF

INSTRUCTION

BLOCK - fuse (See figure 396)

1шт.

11

223-33

FUSE,1 Amp, Type 3AG

- dome lamp (1 ampere)

1шт.

12

223-35

FUSE,8 Amp, Type 3AG

- wiper (8 ampere)

1шт.

13

223-15

FUSE,15 Amp, Type 3AG

- blower and lighter (15 ampere)

1шт.

15

REF

INSTRUCTION

SWITCH - dome lamp (See figure 396)

1шт.

16

REF

INSTRUCTION

LAMP ASSEMBLY - dome (See figure 396)

1шт.

17

REF

INSTRUCTION

BLOWER - (See figure 400)

1шт.

18

REF

INSTRUCTION

MOTOR - wiper (See figure 422)

1шт.

19

F63895

SWITCH

- door opening, dome light

1шт.

20

F63893

WIRE - door switch to dome lamp, 70" white (1778 mm)

1шт.
