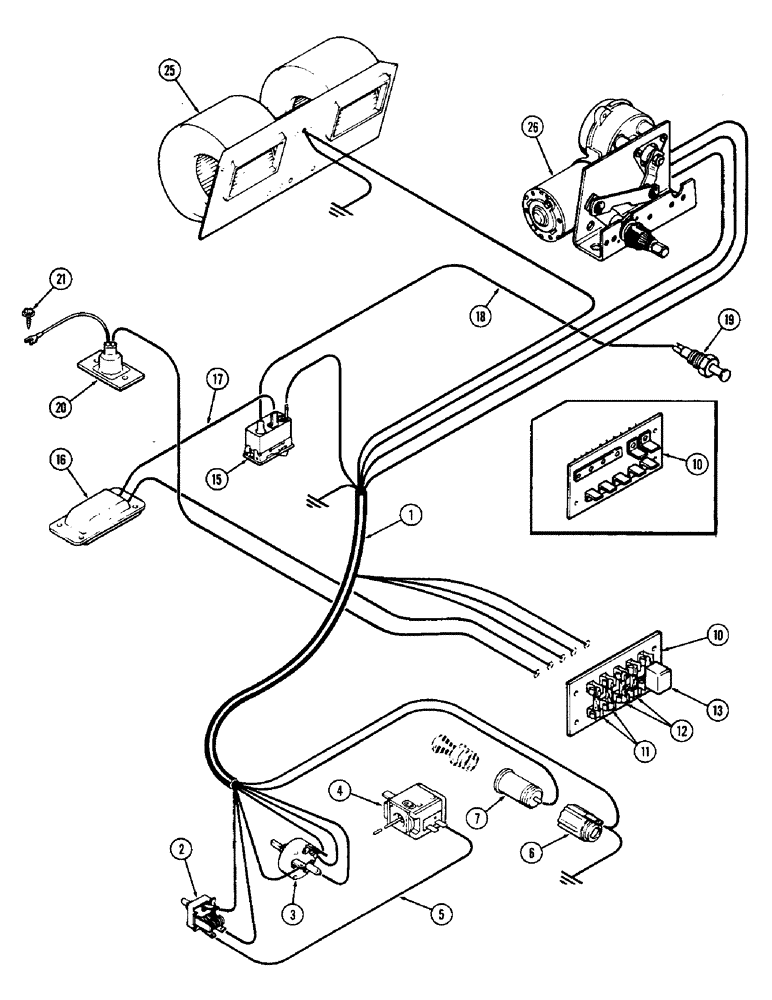

Запчасти Case IH 2870 (416) - CAB, MAIN WIRING HARNESS, USED CAB SERIAL NUMBER 7882601 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

F98110

HARNESS

ASSEMBLY - main wiring, cab

1шт.

2

REF

INSTRUCTION

SWITCH - blower motor (See figure 410)

1шт.

3

REF

INSTRUCTION

SWITCH - wiper motor (See figure 410)

1шт.

4

REF

INSTRUCTION

SWITCH - cab temperature (See figure 410)

1шт.

5

A42624

ELECTRICAL WIRE

WIRE - temperature switch to blower switch, 6" black (152.4 mm)

1шт.

6

REF

INSTRUCTION

SHELL - lighter socket (See figure 410)

1шт.

7

REF

INSTRUCTION

SOCKET - lighter (See figure 410)

1шт.

10

REF

INSTRUCTION

BLOCK - fuse (See figure 394)

1шт.

11

223-33

FUSE,1 Amp, Type 3AG

- dome light and console lamp (1 ampere)

2шт.

12

223-15

FUSE,15 Amp, Type 3AG

- lighter and blower (15 ampere)

2шт.

13

F64181

BREAKER

- circuit (6 ampere)

1шт.

15

REF

INSTRUCTION

SWITCH - dome lamp (See figure 394)

1шт.

16

REF

INSTRUCTION

LAMP - dome (See figure 394)

1шт.

17

F64126

ELECTRICAL WIRE

WIRE - switch to dome lamp, 4" black (101.6 mm)

1шт.

18

F64127

ELECTRICAL WIRE

WIRE - door switch, 70" white (1778 mm)

1шт.

19

F63895

SWITCH

- door, dome lamp

1шт.

20

REF

INSTRUCTION

LAMP - console (See figure 394)

1шт.

21

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tap, #10-16 x 1/2" Phillips head (Lamp ground)

1шт.

25

REF

INSTRUCTION

BLOWER ASSEMBLY - (See figure 400)

1шт.

36

REF

INSTRUCTION

MOTOR - wiper (See figure 420)

1шт.
