(412) - CAB, LOWER WIRING HARNESS, USED CAB SERIAL NUMBER 7882601 AND AFTER

Запчасти Case IH 2870 (412) - CAB, LOWER WIRING HARNESS, USED CAB SERIAL NUMBER 7882601 AND AFTER (09) - CHASSIS/ATTACHMENTS

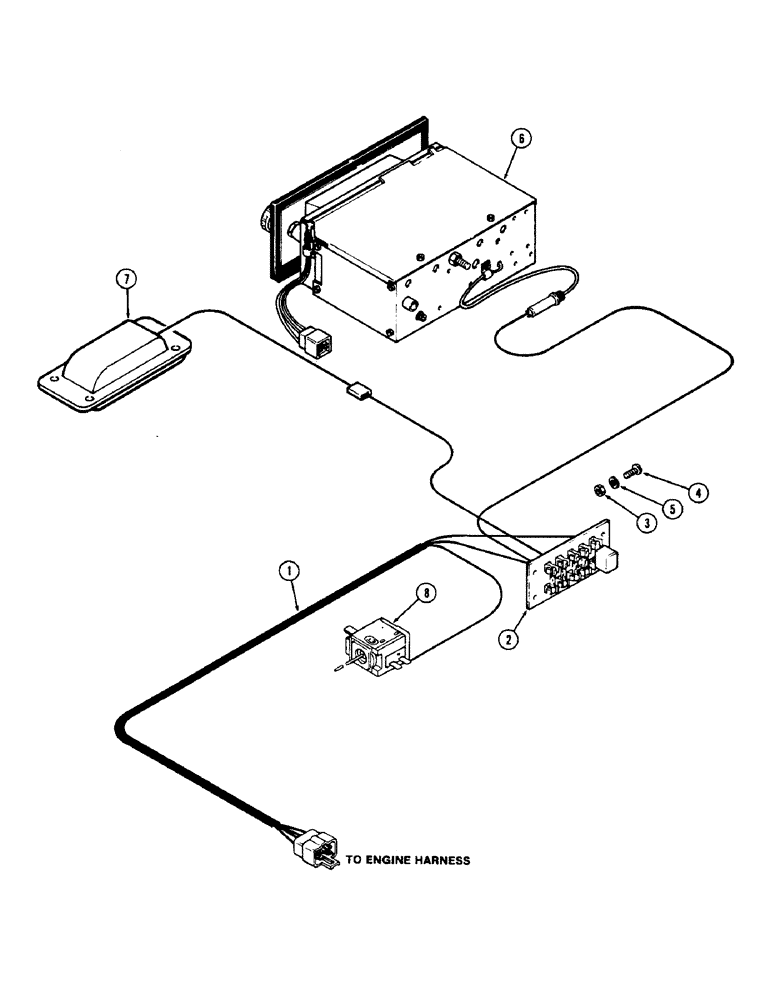

Схема запчастей Case IH 2870 - (412) - CAB, LOWER WIRING HARNESS, USED CAB SERIAL NUMBER 7882601 AND AFTER (09) - CHASSIS/ATTACHMENTS
8
1
4
6
2
3
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F98112

HARNESS

ASSEMBLY - cab to engine harness

1шт.

2

F98113

BLOCK

- fuse

1шт.

3

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- brass, #5-40 x 1/2" round head

1шт.

4

129-630

NUT,#5-40, Brass

- brass, #5-40 hex

1шт.

5

195-14

WASHER,#12

- #5 lock

1шт.

6

REF

INSTRUCTION

RADIO - (See figure 424)

1шт.

7

REF

INSTRUCTION

LAMP - ASSEMBLY - dome (See figure 394)

1шт.

8

REF

INSTRUCTION

SWITCH - temperature control (See figure 410)

1шт.
