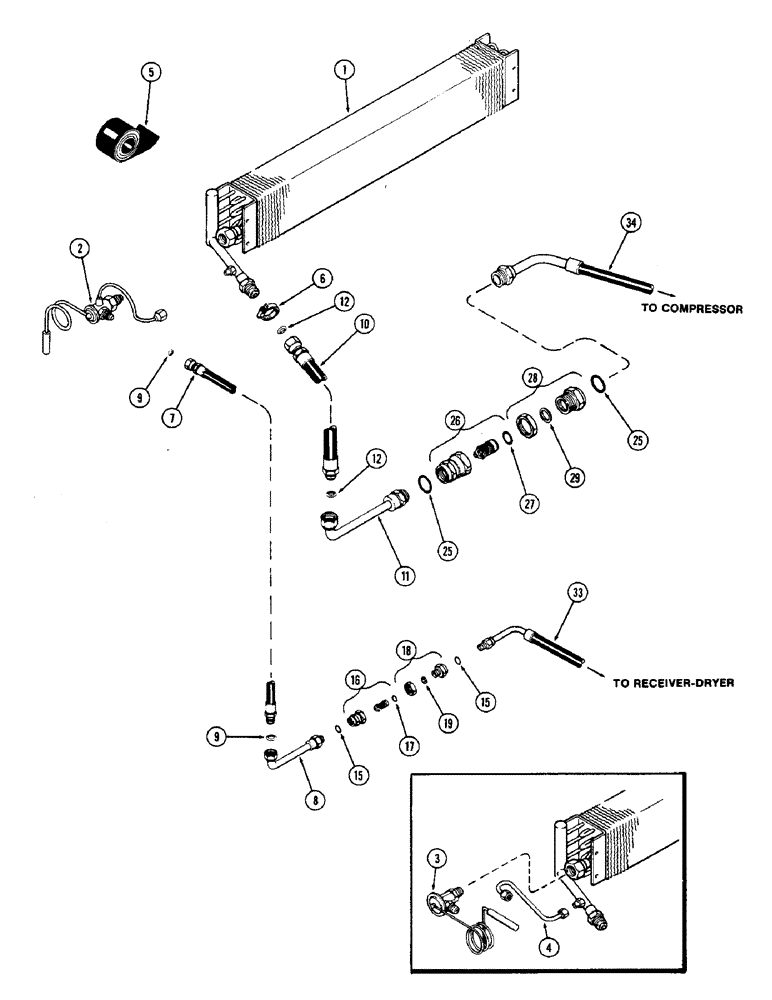

Запчасти Case IH 2870 (408) - CAB, AIR CONDITIONER AND LINES (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator

1шт.

2

F64389

VALVE

- expansion, with equalizer tube (1st used cab serial no. 7883184)

1шт.

3

F63726

VALVE

- expansion (Used prior to cab serial no. 7883184)

1шт.

4

F63871

TUBE - equalizer (Used with F63726 valve)

1шт.

5

345-37

TAPE

- insulation, 2-1/2 x 12" (63.5 x 305.8 mm)

1шт.

6

214-266

CLAMP - insulation, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

1шт.

7

F63753

HOSE

- high side, 1/2" ID x 77-1/2" (12.7 x 1968.5 mm)

1шт.

8

F63668

TUBE,0.38" OD x 9.25" L

- hose to coupling, high side

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

10

F63941

A/C HOSE,15.88 mm ID x 1854.20 mm

Low Side 15.88 mm ID x 1854.20 mm

1шт.

11

F63874

TUBE,0.75" OD x 6.30, 2.5" L

- hose to coupling

1шт.

12

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4" tube 45 degree flare

2шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

- coupling to tube, 3/8 x 1/2 x 1/16" (9.53 x 12.7 x 1.59 mm)

2шт.

16

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - high side to dryer hose, Includes: Ref. 17

1шт.

17

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- coupling piston, 1/4 x 3/8 x 1/16" (6.35 x 9.53 x 1.59 mm)

1шт.

18

A61196

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - dryer hose to cab, Includes: Ref. 19

1шт.

19

A42667

GASKET

- coupling

1шт.

25

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling, 1-1/16 x 1-3/16 x 1/16" (27 x 30.16 x 1.59 mm)

2шт.

26

A42664

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - low side to compressor hose, Includes: Ref. 27

1шт.

27

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

- coupling piston, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

28

A61194

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - compressor hose to cab, Includes: Ref. 29

1шт.

29

A42668

GASKET

- coupling

1шт.

33

A138765

HOSE ASSY.

HOSE - to receiver dryer

1шт.

34

A144643

HOSE ASSY.

HOSE, Serial Range: --compressor

1шт.
