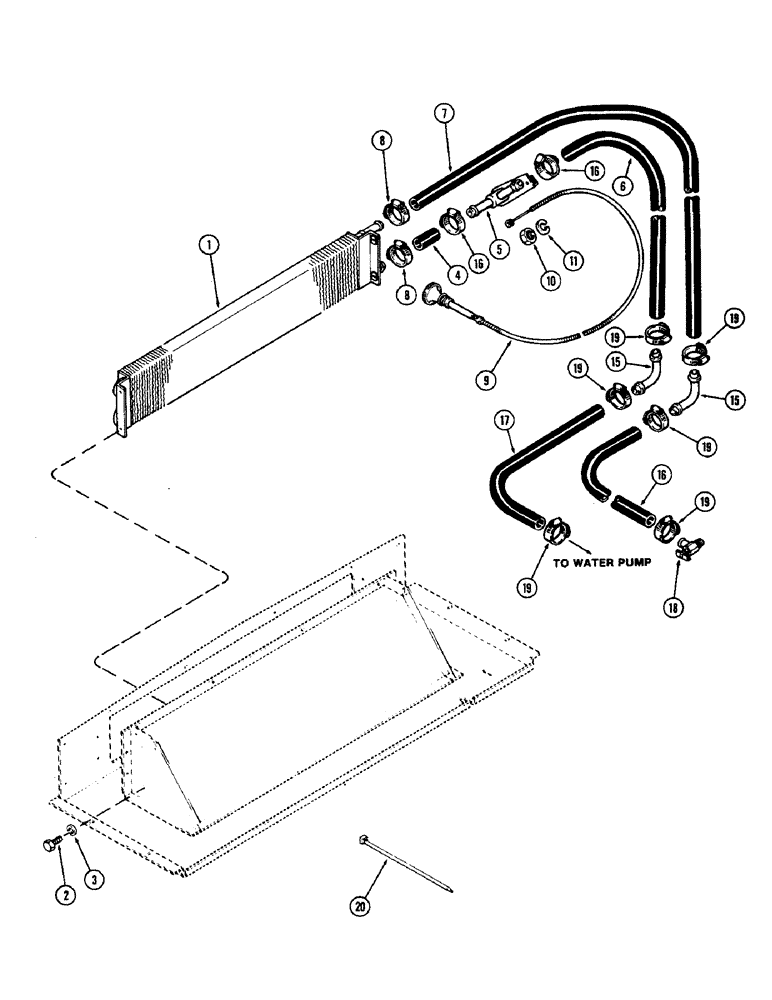

Запчасти Case IH 2870 (404) - CAB, HEATER CORE AND LINES (09) - CHASSIS/ATTACHMENTS

1

F63680

CORE

- heater

1шт.

2

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- 1/4 x 1/2" NC hex

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve, 2" long (Black) (50.8 mm) (Order A42610)

1шт.

5

F63865

VALVE

- control, heat

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, 77" long (Black) (1955.8 mm) (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet, 81" long (Red) (2057.4 mm) (Order A42610)

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 mm)

4шт.

9

A42614

CABLE

ASSEMBLY - heat control, Includes: Ref. 10 and 11

1шт.

10

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

15

A60823

ELBOW

- engine hose to cab hose

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE - heater to water pump, 75" long (1905 mm) (Order A42610)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - manifold to heater, 53" long (1346.2 mm) (Order A42610)

1шт.

18

A16764

VALVE

- shut-off

1шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 x 44.45 mm)

6шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose retainer (nylon)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" x 1" x 50 feet (15.88 x 25.4 mm x 15.25 M) (Cut to length required)

1шт.
