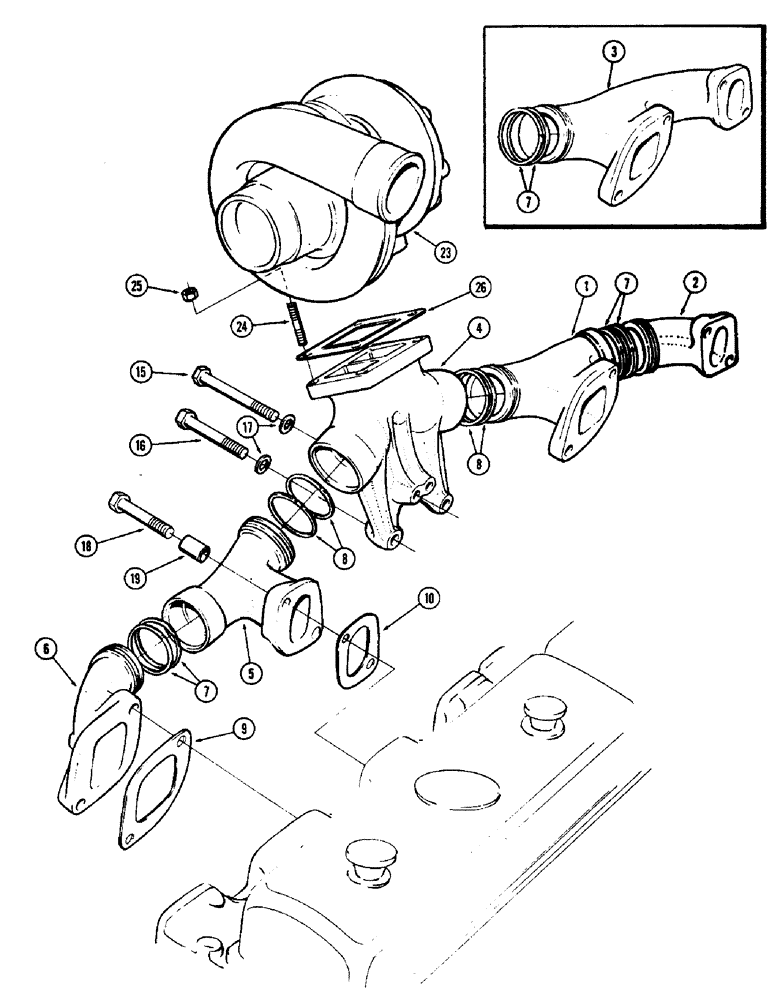

Запчасти Case IH 2870 (020) - EXHAUST MANIFOLD, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A46363

MANIFOLD

- exhaust, rear center section (1st used engine serial no. 3001764)

1шт.

2

A46377

MANIFOLD

- exhaust, rear end section (1st used engine serial no. 3001764)

1шт.

3

A45774

NO LONGER SERVICED

MANIFOLD - exhaust, rear section (One piece) (Order 1-A46363, 1-A46377 and 2-A46440) (Used prior to engine serial no. 3001764)

1шт.

4

A45771

MANIFOLD

- exhaust, intermediate section

1шт.

5

A45773

MANIFOLD

- exhaust, front center section

1шт.

6

A45772

MANIFOLD

- exhaust, front section

1шт.

7

A46440

RING

- compression, front and rear (Set of 2) (Replaces A45776)

4шт.

8

A46389

SEAL

- compression, intermediate (Set of 2) (Replaces A45777)

4шт.

9

A46368

MANIFOLD GASKET

- manifold to head (Large) (Replaces A45779)

2шт.

10

A46369

MANIFOLD GASKET

- manifold to head (Small) (Replaces A45780)

2шт.

15

513-818

BOLT

- 12 x 1.75 x 100 mm, hex head

2шт.

16

513-815

BOLT

- 12 x 1.75 x 80 mm, hex head

2шт.

17

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 27 x 2.38 mm)

4шт.

18

513-812

BOLT

- 12 x 1.75 x 65 MM, hex head

8шт.

19

A45778

SPACER

- mounting, exhaust manifold

8шт.

23

A45790

TURBOCHARGER

- (See figure 26)

1шт.

24

A45775

STUD

- turbocharger to exhaust manifold

4шт.

25

A46073

NUT

- turbocharger stud

4шт.

26

A46185

MANIFOLD GASKET

-, Serial Range: turbocharger-manifold

1шт.
