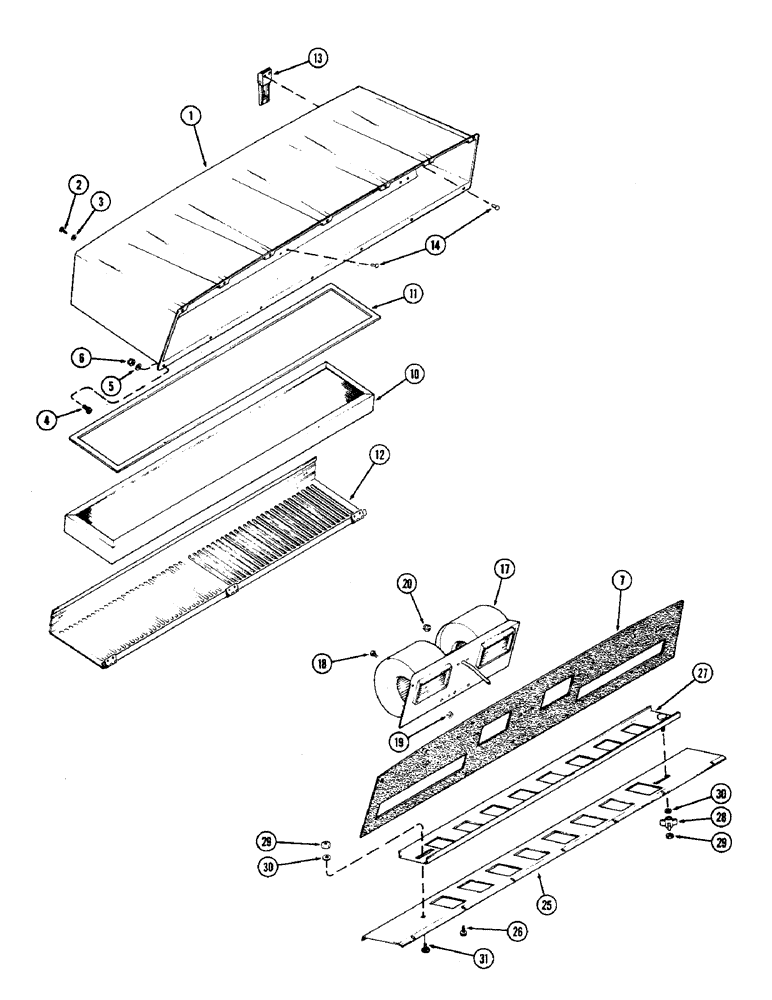

Запчасти Case IH 2870 (398) - CAB, AIR FILTER AND BLOWER (09) - CHASSIS/ATTACHMENTS

1

F64058

FILTER

HOUSING - filter and blower

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, #10-16 x 3/4" round head

7шт.

3

F63765

WASHER

- finishing

7шт.

4

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- #10-24 x 3/4" pan head

7шт.

5

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64"

7шт.

6

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

7шт.

7

F63592

SEAL

-, Serial Range: housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - cab air (Replaces F63679)

1шт.

11

F63669

SEAL

-, Serial Range: filter-housing

1шт.

12

F89926

COVER

- filter

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-547

RIVET - 1/8" pop type

10шт.

17

REF

INSTRUCTION

BLOWER ASSEMBLY - (See figure 400)

1шт.

18

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex head

2шт.

19

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex

2шт.

20

353-700

BUSHING

- blower wire, 3/8" diameter hole (9.53 mm)

1шт.

25

F64081

PLATE

- air circulating

1шт.

26

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex head

15шт.

27

F89947

DOOR - air circulating

1шт.

28

F63415

KNOB

- door

1шт.

29

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" NC hex

2шт.

30

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

2шт.

31

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - 5/16 x 3/4" NC carriage

1шт.
