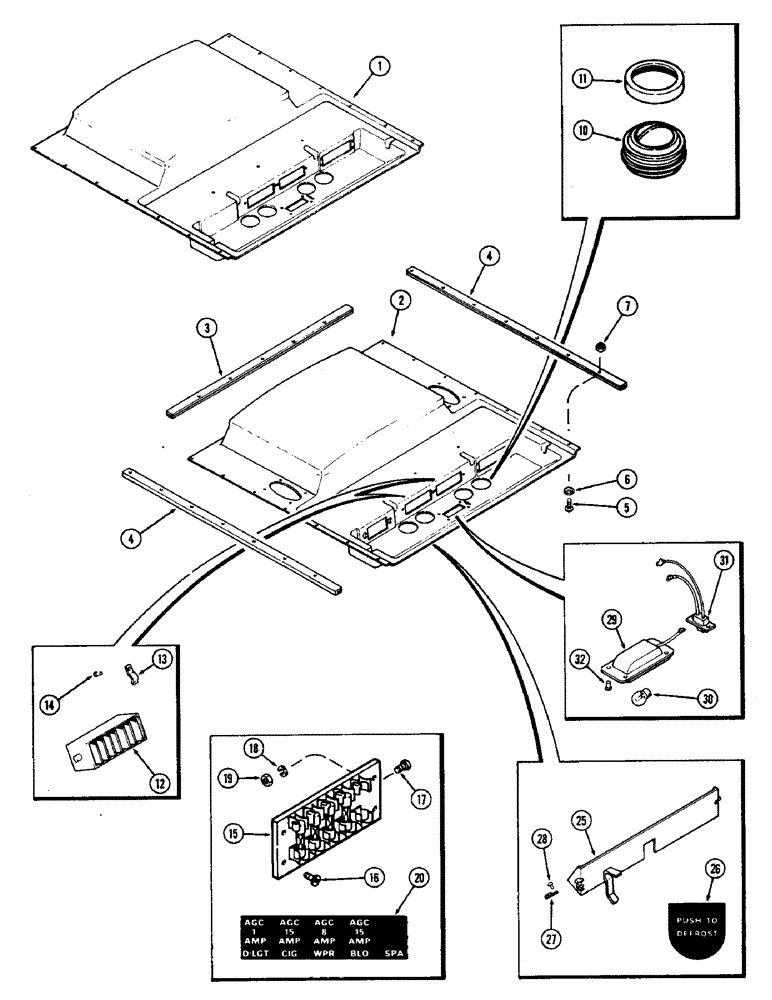

Запчасти Case IH 2870 (396) - CAB, HEADLINER AND LOUVERS, USED PRIOR TO CAB SERIAL NUMBER 7882601 (09) - CHASSIS/ATTACHMENTS

1

F63995

HEADLINER - cab (Without radio)

1шт.

2

F63994

HEADLINER - cab (With radio)

1шт.

3

F63799

MOLDING

TRIM - rear, headliner

1шт.

4

F63800

MOLDING

TRIM - side headliner

2шт.

5

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips head

22шт.

6

F63765

WASHER

- finishing

22шт.

7

86625057

NUT,#10-24, GB

NUT - #10-16 hex

22шт.

10

F64132

GUARD

LOUVER - ball type

4шт.

11

F64131

RING

- louver retainer

4шт.

12

F89673

GUARD

LOUVER - air deflection

2шт.

13

A42575

CLIP

- louver mounting

4шт.

14

151-526

RIVET,Pop, 1/8" x .337"

4шт.

15

F63718

BLOCK

ASSEMBLY - FUSE (Includes buss bar)

1шт.

16

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, #8-15 x 5/8" round head

4шт.

17

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- brass, #5-40 x 1/2" round head

1шт.

18

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

1шт.

19

129-630

NUT,#5-40, Brass

- brass, #5-40 hex

1шт.

20

321-2738

DECAL

- fuse block

1шт.

25

F89893

BRACKET

DOOR - defroster

1шт.

26

321-2995

DECAL

- defroster lever

1шт.

27

A42575

CLIP

- louver mounting

2шт.

28

151-526

RIVET,Pop, 1/8" x .337"

2шт.

29

F89772

LAMP

ASSEMBLY - dome, Includes: Ref. 30

1шт.

30

B50217

BULB

- dome lamp (#93)

1шт.

31

F63760

SWITCH

- dome lamp

1шт.

32

151-526

RIVET,Pop, 1/8" x .337"

6шт.
