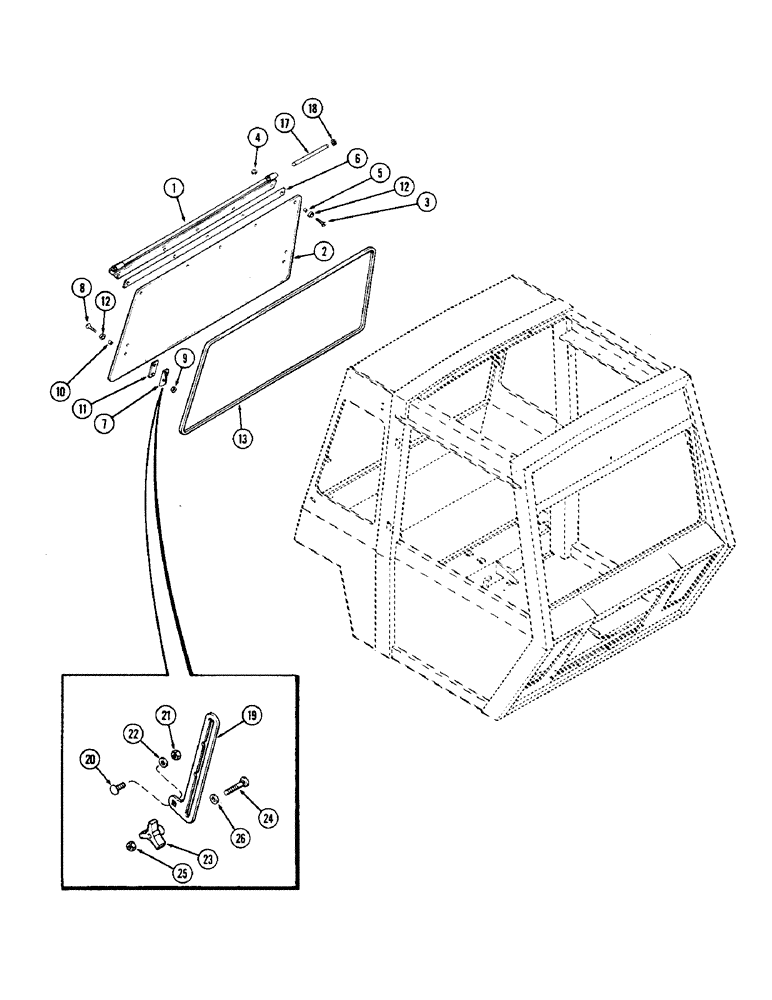

Запчасти Case IH 2870 (382) - CAB, REAR WINDOW WITHOUT FRAME, FIRST USED CAB SERIAL NUMBER 7882601 WITH PIN TYPE HINGE (09) - CHASSIS/ATTACHMENTS

1

F98107

CHANNEL - rear window pivot

1шт.

2

F64135

GLASS

- rear window

1шт.

See figure 386 for glass data.

1шт.

3

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" oval head

5шт.

4

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

5шт.

5

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw (Replaces F64136)

5шт.

6

F64139

SPACER

- rubber, Serial Range: window-channel

1шт.

7

F64138

BRACKET

- regulator arm

2шт.

8

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" oval head

4шт.

9

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

10

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw (Replaces F64136)

4шт.

11

F64140

SPACER

-, Serial Range: bracket-glass

2шт.

12

F43576

WASHER

- finishing

9шт.

13

F64141

SEAL

- window edge, 158" long (4013.2 mm)

1шт.

17

A42524

PIN,9.53mm OD x 119.38mm L

- hinge

2шт.

18

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

19

F64106

ARM

- regulator, window opening

2шт.

20

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16 x 3/4" NC carriage

2шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex

2шт.

22

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

2шт.

23

F63415

KNOB

- regulator

2шт.

24

111-263

BOLT - 5/16 x 1-3/4" NC hex carriage Short NK, 5/16"-18 x 1 3/4", G2

2шт.

25

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex

2шт.

26

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.
