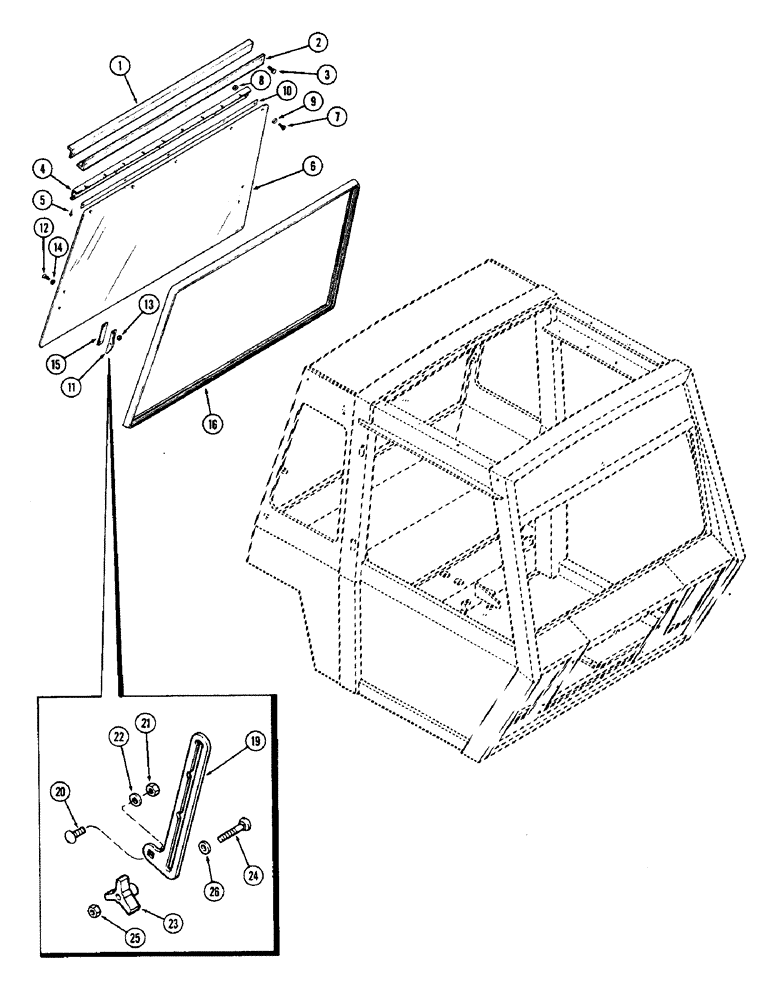

Запчасти Case IH 2870 (380) - CAB, REAR WINDOW WITHOUT FRAME, WITH POLYETHELENE HINGE (09) - CHASSIS/ATTACHMENTS

1

F98220

ANGLE

- window mounting

1шт.

2

F64240

HINGE

- window, polyethylene

1шт.

3

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- #10-32 x 3/4" round slotted head

10шт.

4

F64257

CHANNEL - rear, Serial Range: window-hinge

1шт.

5

151-522

RIVET,Pop, 3/16" x .575"

- 3/16" pop

9шт.

6

F64135

GLASS

- rear window

1шт.

See figure 386 for glass data.

1шт.

7

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" oval head

5шт.

8

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

5шт.

9

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

5шт.

10

F64139

SPACER

- rubber, Serial Range: window-channel

1шт.

11

F64138

BRACKET

- regulator arm

2шт.

12

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" oval head

4шт.

13

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

14

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

4шт.

15

F64140

SPACER

-, Serial Range: bracket-glass

2шт.

16

F64141

SEAL

- window edge, 158" long (4013.2 mm)

1шт.

19

F64106

ARM

- regulator, window opening

2шт.

20

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16 x 3/4" NC carriage

2шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex

2шт.

22

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

2шт.

23

F63415

KNOB

- regulator

2шт.

24

111-263

BOLT - 5/16 x 1-3/4" NC carriage Short NK, 5/16"-18 x 1 3/4", G2

2шт.

25

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex

2шт.

26

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.
