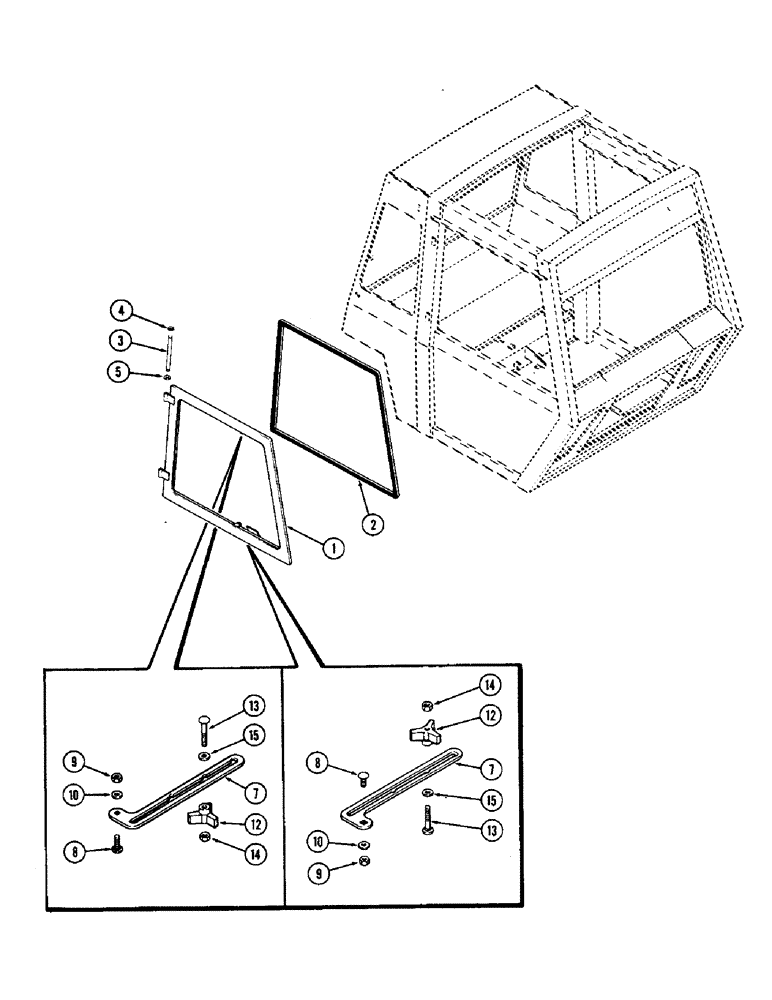

Запчасти Case IH 2870 (378) - CAB, SIDE WINDOW (09) - CHASSIS/ATTACHMENTS

F89399

WINDOW

ASSEMBLY - right hand (Includes glass), Includes: Ref. 1 and 2

1шт.

Order glass from figure 386.

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME

1шт.

2

F64267

DOOR SEAL

- weather, 181" long (4597.4 mm)

1шт.

3

F63729

PIN

- hinge, side window

2шт.

4

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

5

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge pin

2шт.

7

F64106

ARM

- regulator, window opening

2шт.

8

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16 x 3/4" NC carriage

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex

2шт.

10

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

2шт.

12

F63415

KNOB

- regulator

2шт.

13

111-163

BOLT - 5/16 x 1-3/4" NC carriage

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" NC hex

2шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.
