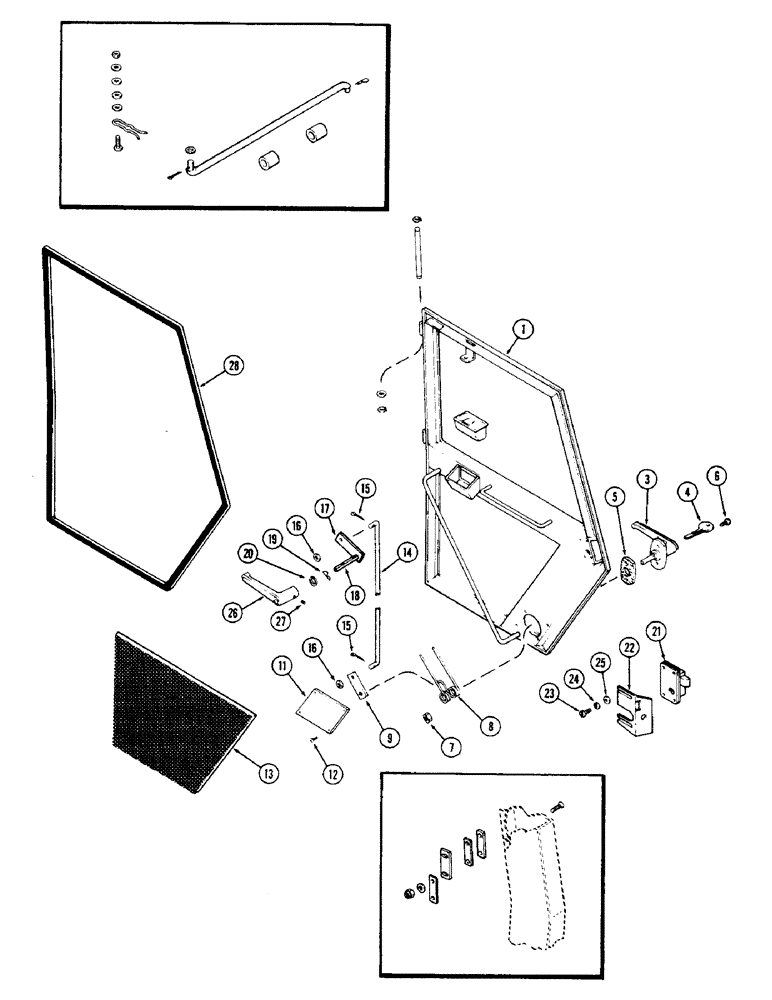

Запчасти Case IH 2870 (374) - CAB, DOOR, WITH STRIKER LATCH (09) - CHASSIS/ATTACHMENTS

F89771

DOOR ASSY.

DOOR ASSEMBLY - complete (Order F98184) (See figure 370), Includes: Ref. 1 - 28

1шт.

Order glass from figure 386.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR

1шт.

3

F63554

HANDLE

- outer, Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEY - door lock (Set of 2)

1шт.

5

F63860

GASKET

- handle

1шт.

6

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- #10-24 x 5/8" Phillips head

2шт.

7

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

8

F15243

SPRING

- latch arm

1шт.

9

F63739

ARM

- door latch

1шт.

11

F89397

COVER

PLATE - access, door latch

1шт.

12

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" self-tapping

4шт.

13

F63565

PADDING

- door

1шт.

14

F63551

ROD

- pull, door latch

1шт.

15

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

16

195-518

WASHER,1/4", SAE

- 9/32 x 5/8" x 1/16" (7.14 x 15.88 x 1.58 mm)

2шт.

17

F63739

ARM

- stub shaft

1шт.

18

F64297

SHAFT

- stub

1шт.

19

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

20

195-529

WASHER,7/16", SAE

- 1/2 x 15/16 x 1/16" (12.7 x 23.81 x 1.59 mm)

1шт.

21

F98123

LATCH

- door

1шт.

22

F63658

COVER

- door latch

1шт.

23

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- #10-32 x 1/2" round head

4шт.

24

195-513

WASHER,#10

- 7/32 x 1/2 x 1/16" (5.56 x 12.7 x 1.59 mm)

4шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

26

F63925

HANDLE

ASSEMBLY - inner, door latch, Includes: Ref. 27

1шт.

27

176-49

SCREW - set, 5/16 x 5/16" NC slot head cone point

1шт.

28

F64403

SEAL

STRIP - weather, door frame, 100 foot roll (30.5 M) (Cut as required) (Replaces F64016 and F64267)

1шт.
