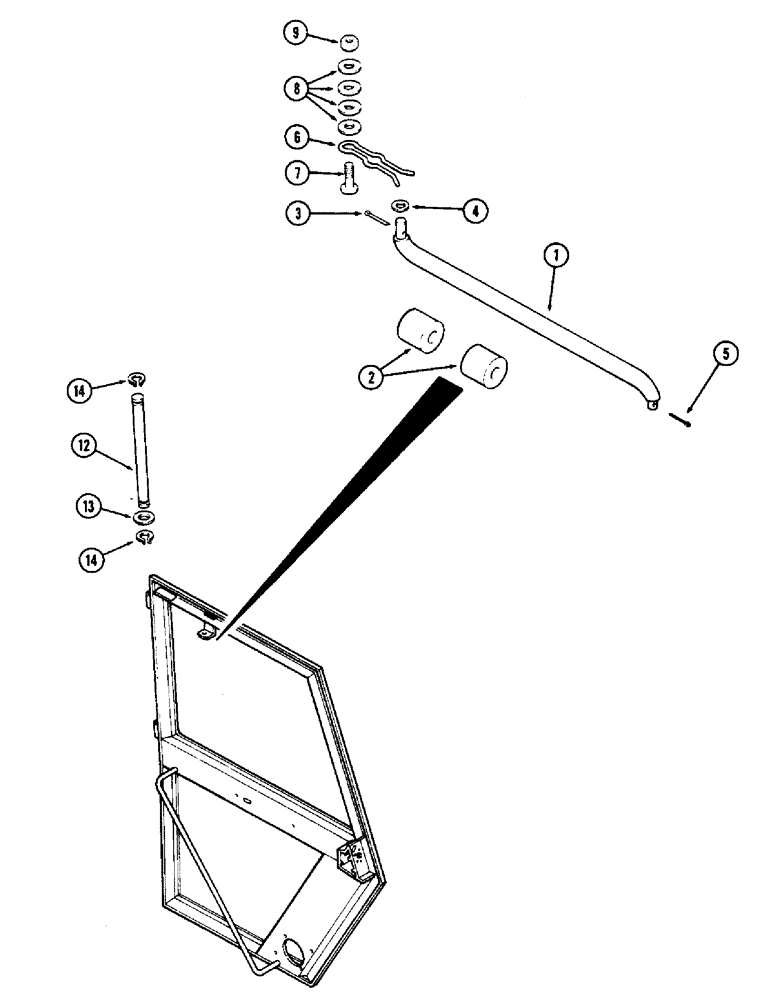

Запчасти Case IH 2870 (372) - CAB, DOOR, WITH ROTARY LATCH (09) - CHASSIS/ATTACHMENTS

1

F64407

ROD

- door bumper

1шт.

2

F64347

SEAL

BUMPER - door, 7/16 x 1 x 1" rubber (11.11 x 25.4 x 25.4 mm)

2шт.

3

132-333

COTTER PIN,1/8" x 5/8"

PIN - cotter, 3/32 x 5/8" (2.38 x 15.88 mm)

1шт.

4

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

1шт.

5

136-158

COTTER PIN,Int, 9/64" x .054"

PIN - internal hair

1шт.

6

F64470

COTTER PIN

- external hair (Replaces F63933)

1шт.

7

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- 1/4 x 1" NC round head

1шт.

8

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

5шт.

9

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex

1шт.

12

F63729

PIN

- door hinge

2шт.

13

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge pin (Lower) 3/8 x 3/4 x 1/32" (9.53 x 19.05 x 0.79 mm)

2шт.

14

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.
