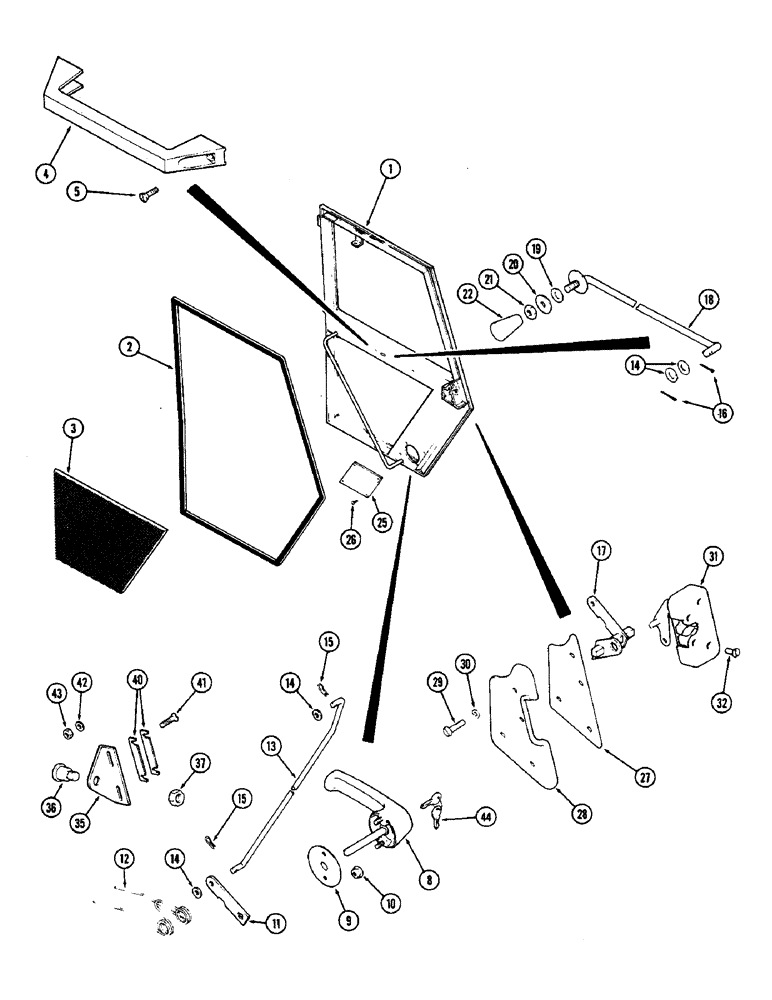

Запчасти Case IH 2870 (370) - CAB, DOOR, WITH ROTARY LATCH (09) - CHASSIS/ATTACHMENTS

F98184

DOOR

ASSEMBLY - (With glass and molding), Includes: Ref. 1 - 37

1шт.

See figure 386 for glass data.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - frame

1шт.

2

F64267

DOOR SEAL

STRIP - weather, door frame, 181" long (4597.4 mm)

1шт.

3

F64298

INSULATOR

PADDING - door

1шт.

4

F64344

HANDLE

- door, inner

1шт.

5

179-157

SCREW,Cross Oval Hd, 1/4" - 20 x 3/4"

- handle, 1/4 x 3/4" NC, slotted head

2шт.

8

F64311

HANDLE

- door, outer

1шт.

9

F64342

GASKET,1.6mm Thk

- outer handle

1шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, , Handle retaining #10-24, GB

2шт.

11

F64289

ARM

- door latch, lower

1шт.

12

F64431

SPRING

- lower latch arm

1шт.

13

F64293

ROD

- arm link

1шт.

14

F64384

WASHER

- 1/4 x 9/16 x 1/32" (6.35 x 14.29 x 0.79 mm)

4шт.

15

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

PIN - internal hair

2шт.

16

132-15

X

PIN - cotter, 1/16 x 1/2" (1.59 x 12.7 mm)

2шт.

17

F98228

ARM

- door latch, upper

1шт.

18

F98226

ROD

- pull, latch

1шт.

19

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- 3/8 x 3/4 x 1/32" (9.53 x 19.05 x 0.79 mm)

1шт.

20

F64340

WASHER

- shoulder

1шт.

21

131-1280

JAM NUT,Jam, 1/4"-20

NUT - 1/4" NC hex

1шт.

22

F64341

KNOB

- latch rod

1шт.

25

F89397

COVER

PLATE - access, lower

1шт.

26

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" self-tapping

4шт.

27

F98227

COVER

- latch

1шт.

28

F64357

COVER

- access, upper

1шт.

29

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- 1/4 x 1/2" NC, slotted head

4шт.

30

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - 1/4" lock

4шт.

31

F64296

LATCH

- rotary

1шт.

32

182-555

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

- 1/4 x 1-1/4" NC, slotted head

4шт.

35

F64301

BRACKET

- latch pin

1шт.

36

F64345

HARDWARE

PIN - latch

1шт.

37

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

40

F63785

SHIM

- door latch bracket, 14" gauge (1.98 mm)

2шт.

40

F63786

SHIM

- door latch bracket, 20" gauge (1.19 mm)

2шт.

41

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- 1/4 x 1" NC, slotted head

2шт.

42

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64" (7.14 x 15.88 x 1.58 mm)

2шт.

43

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex

2шт.

44

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Also used for ignition)

1шт.
