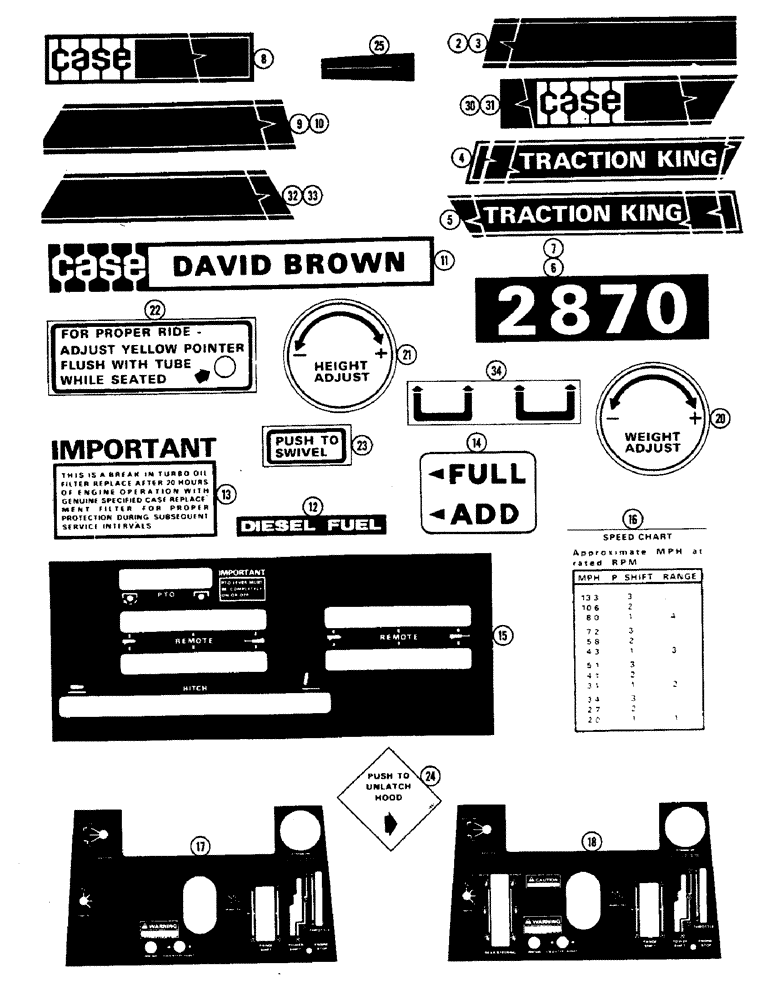

Запчасти Case IH 2870 (362) - DECALS (09) - CHASSIS/ATTACHMENTS

A46283

KIT

DECAL KIT - complete, Includes: Ref. 2 - 25

1шт.

See figure 360 for additional decals for fiberglass hood.

1шт.

2

321-4383

DECAL

- stripe, hood, right hand, 5-13/64" wide (132.16 mm) (See Ref. 30-33)

1шт.

3

321-4384

DECAL

- stripe, hood, left hand, 5-13/64" wide (132.16 mm) (See Ref. 30-33)

1шт.

4

321-3416

DECAL

- Traction King, cab, right hand side

1шт.

5

321-3415

DECAL

- Traction King, cab, left hand side

1шт.

6

321-3408

DECAL

- 2870, hood side, 4" high (101.6 mm)

2шт.

7

321-3413

DECAL

- 2870, cab rear, 3" high (76.2 mm)

1шт.

8

321-3407

DECAL

- Case, cab rear

1шт.

9

321-4385

DECAL

- stripe, hood rear left hand, 5-13/64" wide (132.16 mm) (See Ref. 30-33)

1шт.

10

321-4386

DECAL

- stripe hood rear right hand, 5-13/64" wide (132.16 mm) (See Ref. 30-33)

1шт.

11

321-2565

DECAL

- Case-David Brown (Export only)

2шт.

12

321-230

DECAL

- Diesel Fuel, tank filler

2шт.

13

321-3915

DECAL

- important, engine oil filter

1шт.

14

321-2470

DECAL

- Full-Add, transmisson oil level

1шт.

15

321-3860

DECAL

- console cover

1шт.

16

321-2652

DECAL

- speed chart

1шт.

17

321-3861

DECAL - instrument panel (Without rear steer)

1шт.

18

321-3862

DECAL

- instrument panel (With rear steer)

1шт.

20

A45511

DECAL

- weight adjust (On seat)

1шт.

21

321-3720

DECAL

- height adjust (On seat)

1шт.

22

321-3721

DECAL

- adjust instruction (On seat)

1шт.

23

321-3719

DECAL

- swivel release (On seat)

1шт.

24

321-3985

DECAL

- push to unlatch hood (On lock arm)

1шт.

25

321-4142

DECAL

- hood sight

1шт.

A143220

DECAL

SAFETY KIT - decals (See figure 364)

1шт.

31

321-3404

DECAL

- Case, hood stripe, left hand, 5-19/64" wide (134.54 mm)

1шт.

30

321-3403

DECAL

- Case, hood stripe, right hand, 5-19/64" wide (134.54 mm)

1шт.

32

321-3405

DECAL

- stripe, left hand hood rear, 5-19/64" wide (134.54 mm)

1шт.

33

321-3406

DECAL

- stripe, right hand hood rear, 5-19/64" wide (134.54 mm)

1шт.

34

321-4623

DECAL

- remote couplings

1шт.
