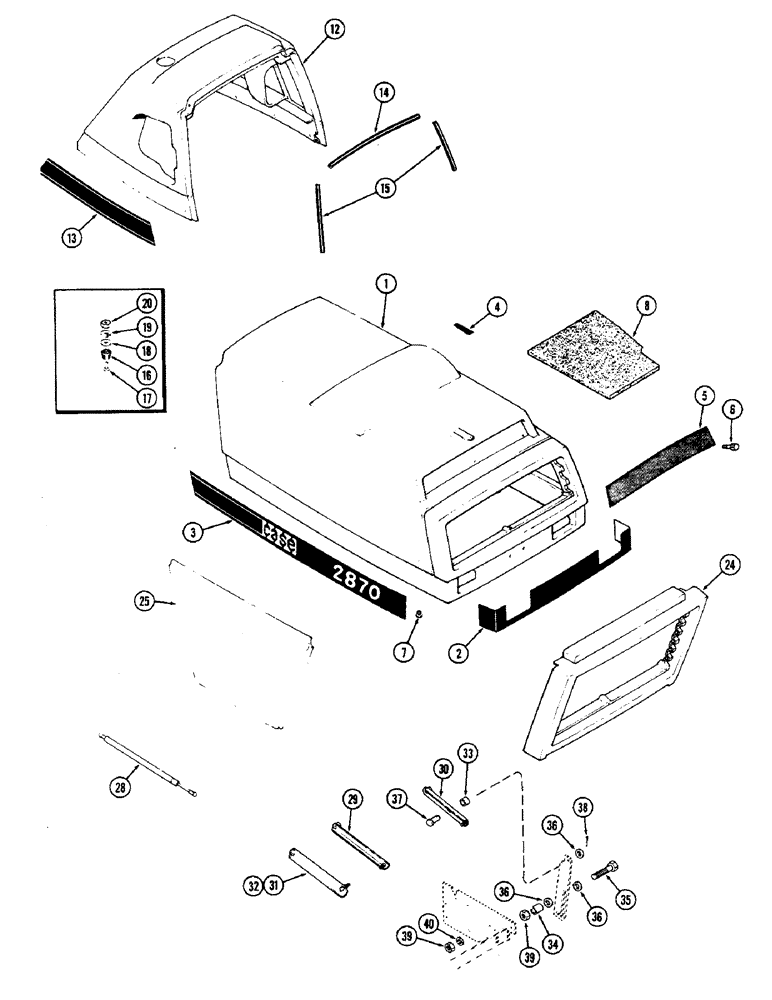

Запчасти Case IH 2870 (360) - A46404 HOOD KIT, TO CONVERT FROM URETHANE TO FIBERGLASS (09) - CHASSIS/ATTACHMENTS

A46404

KIT

HOOD KIT, Includes: Ref. 1 - 40

1шт.

1

A160400

GUARD

HOOD - front

1шт.

2

321-4434

DECAL

- front grille

1шт.

3

321-4429

DECAL

- 2870, right hand side

1шт.

3

321-4430

DECAL

- 2870, left hand side

1шт.

4

321-4142

DECAL

- sight

1шт.

5

A151361

SCREEN

- air scoop (Hood top)

1шт.

6

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Screen Hex Flg, 1/4"-20 x 1/2", Serr

6шт.

7

A144246

FENDER

BUMPER - rubber

2шт.

8

A149248

PAD - heat deflector

1шт.

12

A151217

GUARD

HOOD - rear

1шт.

13

321-4431

DECAL

- right hand side

1шт.

13

321-4432

DECAL

- left hand side

1шт.

14

A151423

SEAL

- hood top, 24" long (609.6 mm)

1шт.

15

A151424

SEAL

- hood sides, 13" long (330.2 mm) (Order A151423)

2шт.

16

A151425

FENDER

BUMPER - rubber

2шт.

17

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- bumper, #10 x 3/4" NC, pan head

2шт.

18

195-513

WASHER,#10

- x 1/2 x 1/16" #10

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex

2шт.

24

A161328

GUARD

GRILLE - lower

1шт.

25

A151219

PANEL

- front, right hand

1шт.

25

A151220

PANEL

- front, left hand

1шт.

28

A151135

CYLINDER

- hydraulic, hood lift

2шт.

29

A151335

ARM

- upper hinge, right hand

1шт.

30

A151334

ARM

- upper hinge, left hand

1шт.

31

A149322

ARM

- lower hinge, right hand, Includes: Ref. 32 - 40

1шт.

32

NSS

NOT SOLD SEPARAT

ARM - lower, left hand

1шт.

33

T30946

BUSHING

SPACER - upper pivot pin, 1/2 x 3/4 x 1/2" (12.7 x 19.05 x 12.7 mm)

1шт.

34

A145518

BUSHING

SPACER - lock plate, 1/2 x 5/8 x 7/8" (12.7 x 15.88 x 22.23 mm)

1шт.

35

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

36

195-533

WASHER,1/2", SAE

- 1/2 x 1-1/16 x 3/32"

3шт.

37

141-56

CLEVIS PIN,1/2" x 1.360"

PIN - lock plate to hinge arm

1шт.

38

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (3.18 x 25.4 mm) 1/8" x 1"

1шт.

39

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
