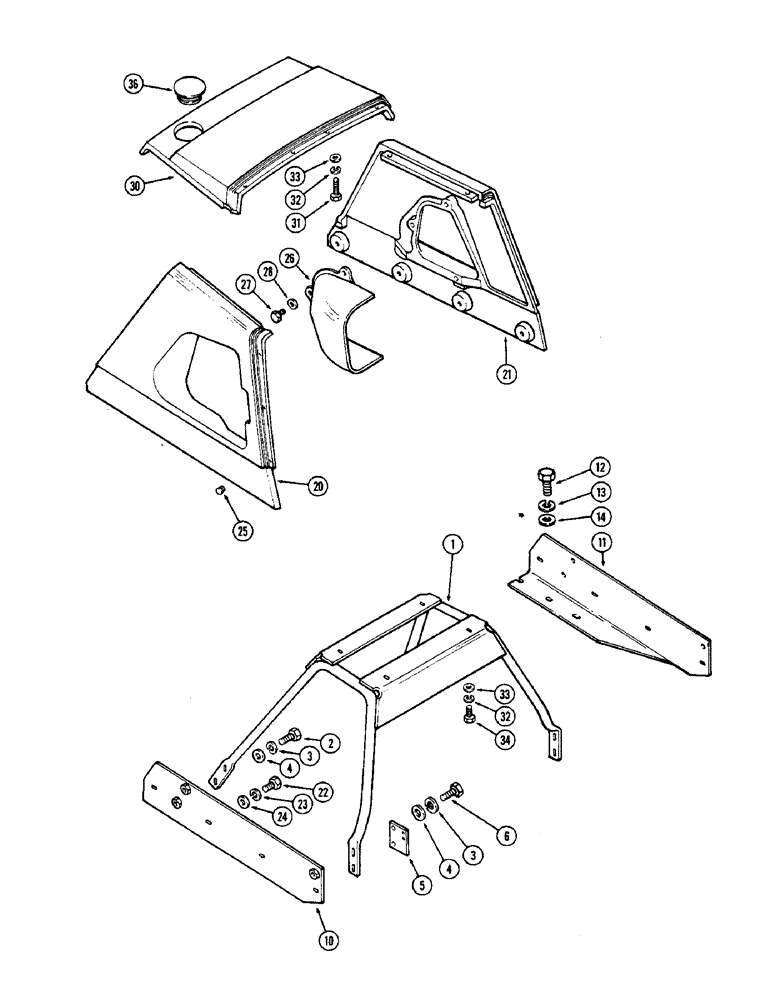

Запчасти Case IH 2870 (358) - REAR HOOD, URETHANE (09) - CHASSIS/ATTACHMENTS

1

A148706

SUPPORT - rear hood

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

4

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

8шт.

5

A150692

PLATE

- latch keeper

2шт.

6

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

4шт.

10

A148631

BRACKET - right hand side, rear hood mounting

1шт.

11

A148632

BRACKET - left hand side, rear hood mounting

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

12

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

LH side Hex, 1/2"-13 x 1 3/4", G5

1шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64"

4шт.

20

A148363

PANEL - right hand side, rear hood (See kit A46404, figure 360)

1шт.

21

A148364

PANEL - left hand side rear hood (See kit A46404, figure 360)

1шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

24

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

6шт.

25

A150906

BUMPER - rubber

10шт.

26

A148675

SCOOP - left hand panel (See kit A46404, figure 360)

1шт.

27

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

30

A148365

HOOD - top rear (See kit A46404, figure 360)

1шт.

31

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

33

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64"

8шт.

34

113-37

BOLT,Locking, 1/4" - 20 x 3/4", Gr 5, Full Thd

- 1/4 x 1/2" NC hex

4шт.

36

A148810

CAP

- brake fluid inspection

1шт.
