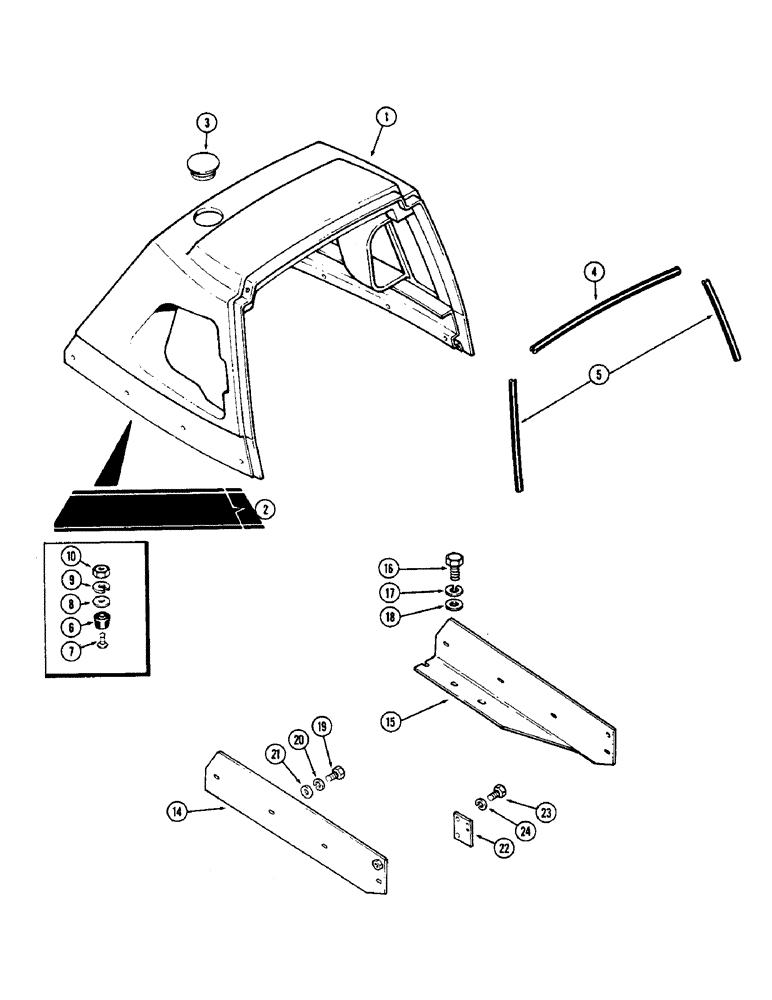

Запчасти Case IH 2870 (356) - REAR HOOD, FIBERGLASS (09) - CHASSIS/ATTACHMENTS

1

A151217

GUARD

HOOD - rear (Also order one 321-4431 and one 321-4432 decals)

1шт.

2

321-4431

DECAL

- right hand side

1шт.

2

321-4432

DECAL

- left hand side

1шт.

3

A148810

CAP

- brake fluid inspection

1шт.

4

A151423

SEAL

- hood, top, 24" long (609.6 mm)

1шт.

5

A151424

SEAL

- hood, sides, 13" long (330.2 mm)

2шт.

6

A151425

FENDER

BUMPER - rubber

2шт.

7

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- #10 x 3/4" NC pan head

2шт.

8

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64"

2шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

10

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex

2шт.

14

A151427

BRACKET

- hood mounting, right hand

1шт.

15

A151429

BRACKET

- hood mounting, left hand

1шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

16

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

LH side Hex, 1/2"-13 x 1 3/4", G5

1шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

18

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64"

4шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

21

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

6шт.

22

A150692

PLATE

- latch keeper

2шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
